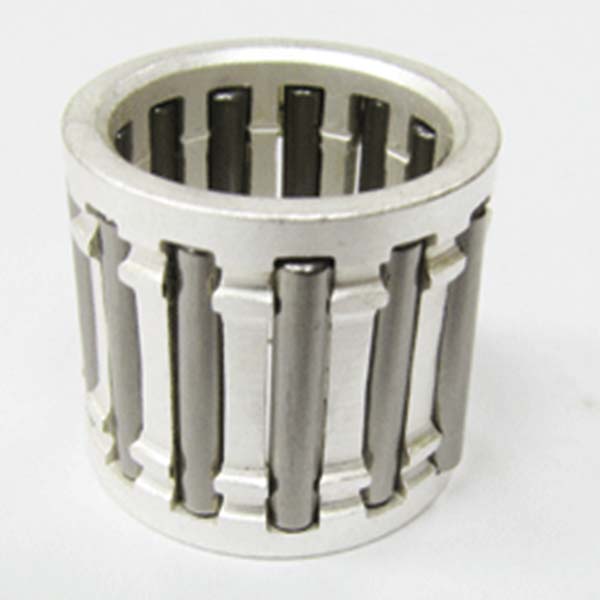

09-523 | Arctic Cat Needle Bearing 20x26x24 mm
C$12.99
Arctic Cat Needle Bearing 20x26x24 mm
Description
Arctic Cat Needle Bearing 20x26x24 mm
Rollers are made from bearing steel (JIS SUJ-2/S’ 52100/DIN 100 Cr6) and have been subjected to heat treatment and precision grinding radius diameter deviation, the hardness is HV700-860 (HRC60-66)
All the raw material comes from Japan directly
High-purity Chromium Molybdenum alloy steel (JIS SCM415) with Carbon Nitriding heat treatment process
The hardness specification is approximately HV500 to HV600; it always can meet the requirement of high-speed engine applications
Heat treated and ground to precision tolerances for reduced heat and extended life
Additional information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 8.89 × 5.08 × 2.54 cm |
| Brand |
Kimpex |
About brand
Kimpex
The destination for the powersports enthusiasts since 1967
Part Number
Part Numbers
OEM Part Numbers
- Arctic Cat# 3003-433
Other Part Numbers
- SS PT# 09-523 REC PT# 009-523 GAMMA PT# 720-2021 KIMPEX PT# 294849 FORTNINE PT# 1513332 NB523 061739 K09-523A
