Universal Series Bypass Voltage Regulator Upgrade Kit
C$384.99

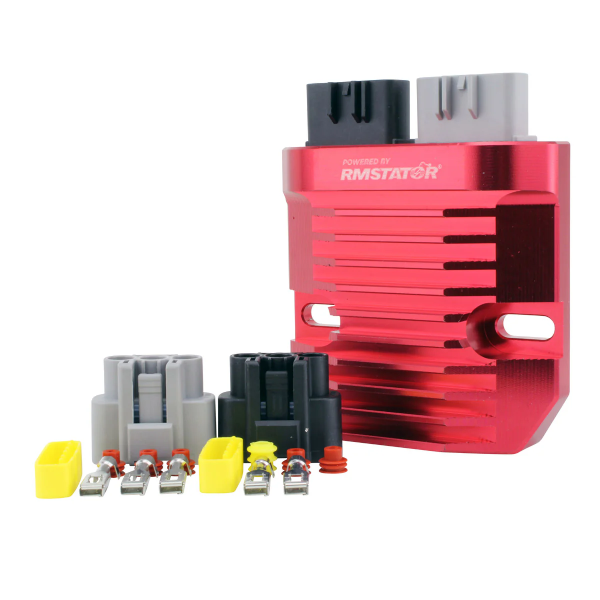

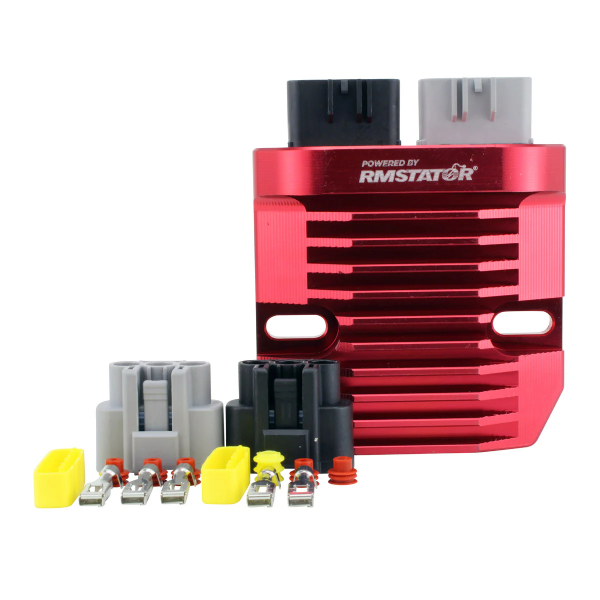

SERIES Regulator:
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Bypass Harness:
Dimensions:
Wires length: 2400 mm
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Available on backorder
Universal SERIES Bypass Voltage Regulator Upgrade Kit
The RMSTATOR Universal Bypass Regulator Kit is a great upgrade for any powersports vehicle.
This kit bypasses the original vehicle wiring and connections between the voltage regulator and the battery. Over time these old wires and connections add significant resistance to the charging circuit and cause a large voltage drop at the battery. This kit will make fresh connections from the stator to the regulator and regulator to the battery providing the best possible charging system output.
This kit is available with our REVOLT premium shunt style regulator, or our Series type voltage regulator with billet CNC machined case. It includes everything you need for an easy installation on any vehicle. You will see a charging improvement right away on most vehicles. Many older vehicles will improve idle RPM charging output by up to 1 Volt!
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifiers and way cooler than OEM parts.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
The regulator is easier to mount because it is smaller than the OEM.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

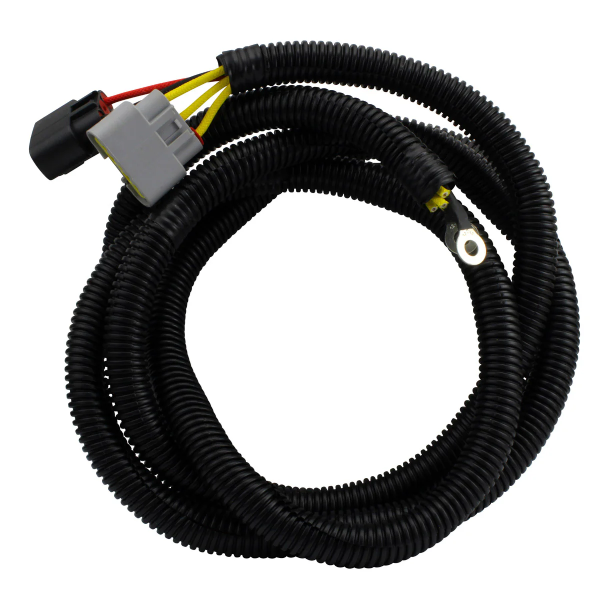

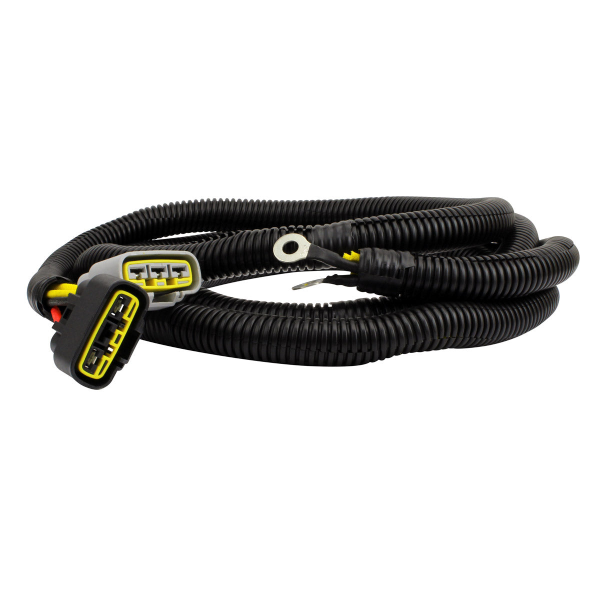

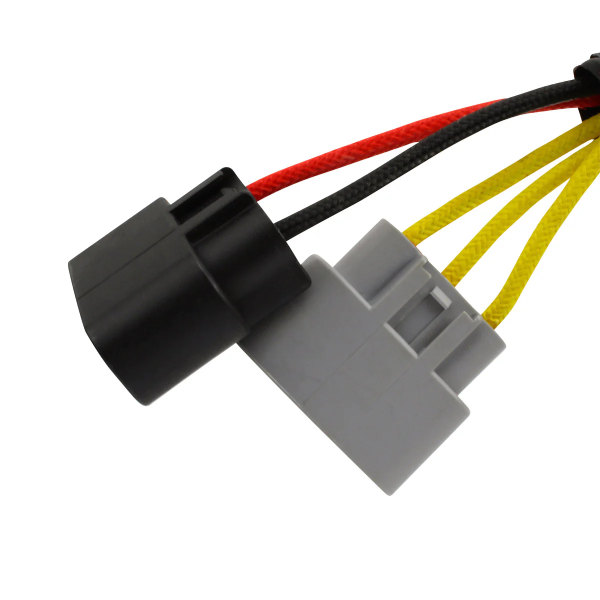

ABOUT THE BYPASS HARNESS
This bypass harness allows you to connect your new series regulator directly to your battery. Bypassing feet of wire and multiple connectors on your main wiring harness to provide a safer and more direct connection.
INSTALL LIKE A PRO

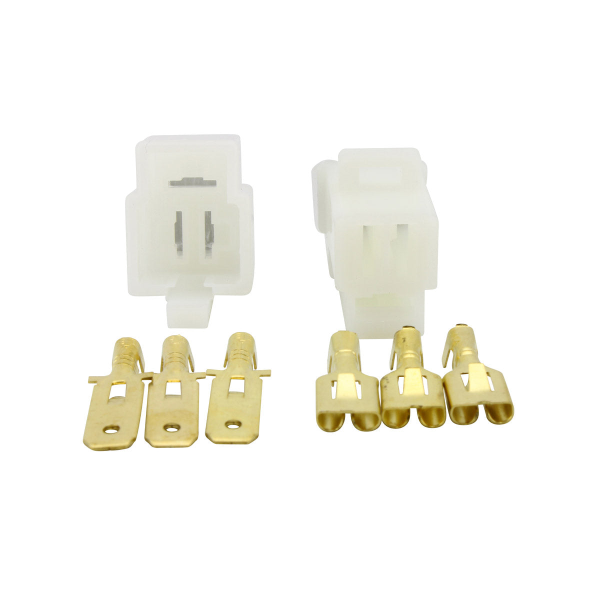

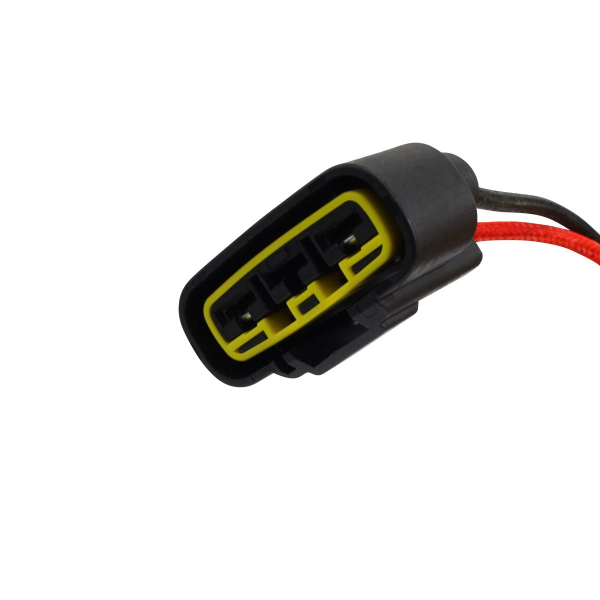

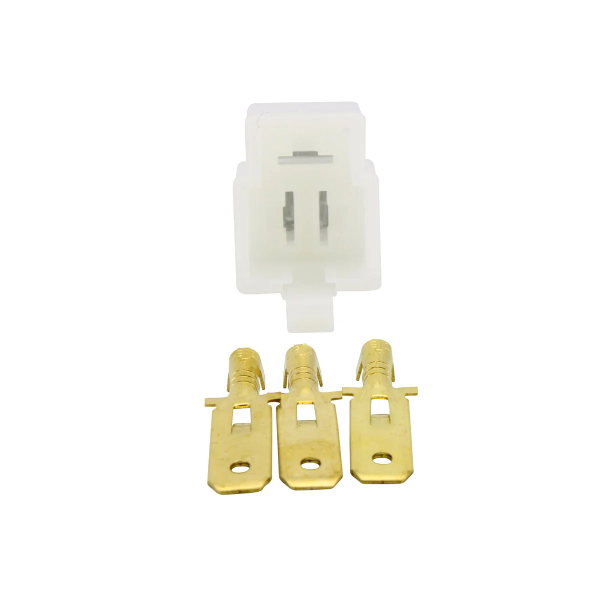

We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
| Brand |
RMSTATOR |
|---|---|
| Fitment Type |
Universal Fit |
