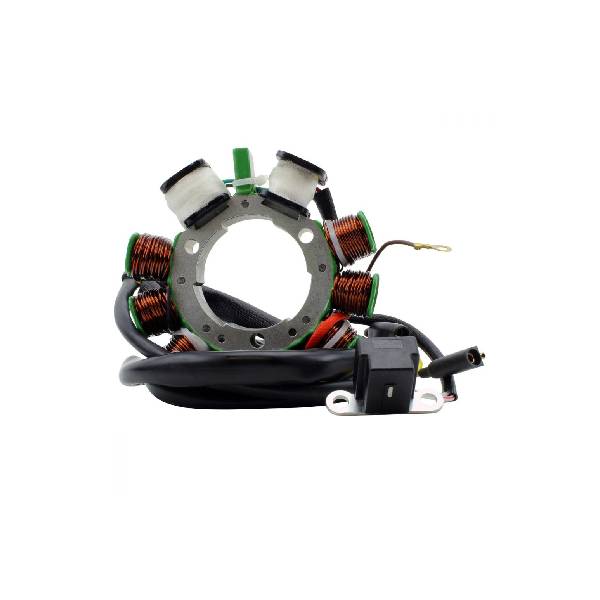

RM01006 | Generator Stator for Honda GL 1000 / 1100 / 1200 Goldwing 1975-1987 | # 31120-371-003 31120-371-013 31120-463-003 |
C$206.89
Dimensions :
Interior diameter : 54mm
Exterior diameter : 114mm
Thickness : 28mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 280mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Alternator : Yellow to Ground = 0.L
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
| Weight | 1.37 kg |
|---|---|
| Dimensions | 7.112 × 5.588 × 5.08 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM NUMBERS
- 311-003-710-03, 311.003.710.03, 311 003 710 03, 31100371003
- 311-203-710-03, 311.203.710.03, 311 203 710 03, 31120371003
- 311-203-710-13, 311.203.710.13, 311 203 710 13, 31120371013
- 31120-463-003, 31120.463.003, 31120 463 003, 31120463003
- 31120-MB9-003, 31120.MB9.003, 31120 MB9 003, 31120MB9003
- 31120-MG9-003, 31120.MG9.003, 31120 MG9 003, 31120MG9003
- 31120-MG9-305, 31120.MG9.305, 31120 MG9 305, 31120MG9305
- 31120-MG9-315, 31120.MG9.315, 31120 MG9 315, 31120MG9315
- 31120-MG9-325, 31120.MG9.325, 31120 MG9 325, 31120MG9325
- 31120-MG9-681, 31120.MG9.681, 31120 MG9 681, 31120MG9681
- 31120-ML8-305, 31120.ML8.305, 31120 ML8 305, 31120ML8305
- 31120-ML8-670, 31120.ML8.670, 31120 ML8 670, 31120ML8670
- 31120-ML8-671, 31120.ML8.671, 31120 ML8 671, 31120ML8671
- 31120-ML8-672, 31120.ML8.672, 31120 ML8 672, 31120ML8672
- 31120-ML8-673, 31120.ML8.673, 31120 ML8 673, 31120ML8673
ADDITIONAL NUMBER
- RM01006
