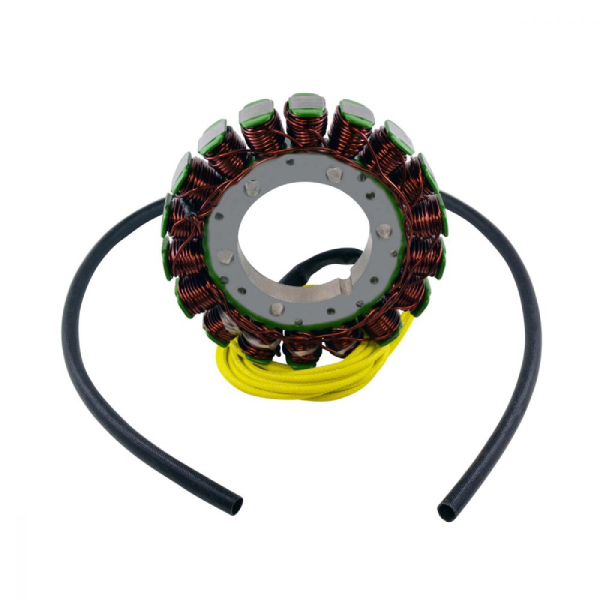

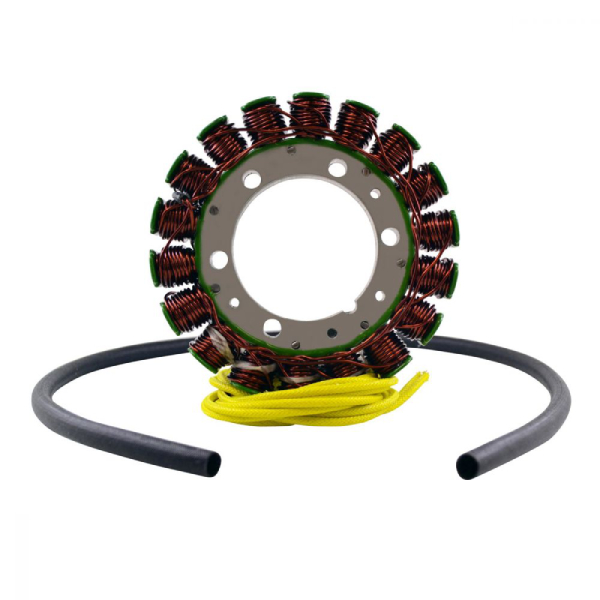

RM01021 | Stator for Kawasaki VN 1500 Vulcan Ninja ZX-9R | Suzuki Savage LS 650 Boulevard S40 | Honda XR 650 L 1986-2024 | |
C$250.89
Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm

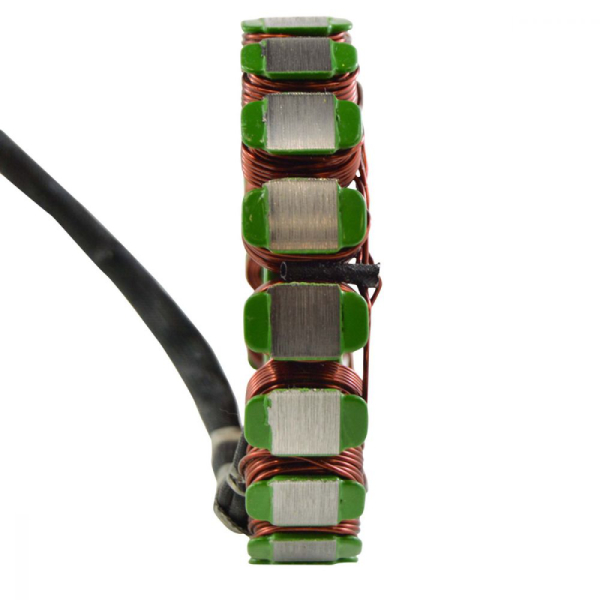

Thickness: 28 mm
Length of wires stator to terminals: 700 mm
Other specifications:

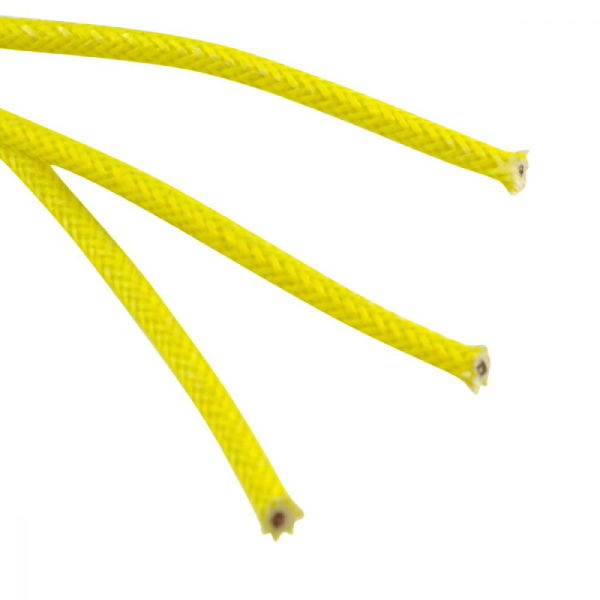

Number of wires:3
Number of pins:3
Wire to wire resistance:
Alternator: Between each White = 0.4 ohms +/-20%
Brand new stator
- You must re-install your original connector and grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
- Higher grade of electric components.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
| Weight | 0.88 kg |
|---|---|
| Dimensions | 16.002 × 6.096 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 21003-1164, 21003.1164, 21003 1164, 210031164
- 21003-1320, 21003.1320, 21003 1320, 210031320
- 21003-1330, 21003.1330, 21003 1330, 210031330
- 21003-1353, 21003.1353, 21003 1353, 210031353
- 21003-1385, 21003.1385, 21003 1385, 210031385
- 21003-1397, 21003.1397, 21003 1397, 210031397
- 31120-MK4-602, 31120.MK4.602, 31120 MK4 602, 31120MK4602
- 31120-MN9-005, 31120.MN9.005, 31120 MN9 005, 31120MN9005
- 31120-MN9-015, 31120.MN9.015, 31120 MN9 015, 31120MN9015
- 31120-MN9-025, 31120.MN9.025, 31120 MN9 025, 31120MN9025
- 31120-MW2-781, 31120.MW2.781, 31120 MW2 781, 31120MW2781
- 32101-24B00, 32101.24B00, 32101 24B00, 3210124B00
- 32101-24B01, 32101.24B01, 32101 24B01, 3210124B01
- 32101-24B02, 32101.24B02, 32101 24B02, 3210124B02
OTHER PART NUMBER
- RM01021
