RM01022 | High Output Stator 200 W for Honda TRX 400 EX Sportrax 1999-2008 | TRX 400 X 2009 TRX 400 X 2012-2014 |
C$280.89
Dimensions :
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 560 mm
Length of pickup coil’s wire to grommet: 250 mm
Other specifications :
Number of wires: 6
Number of plugs: 2
Number of terminals: 6
Alternator: Green to White = 0.4 ohms +/-20%
Pick up: Blue/Yellow to Green/Red = 230 ohms +/-20%
Source: Black/Red to Brown = 90 ohms +/-20%

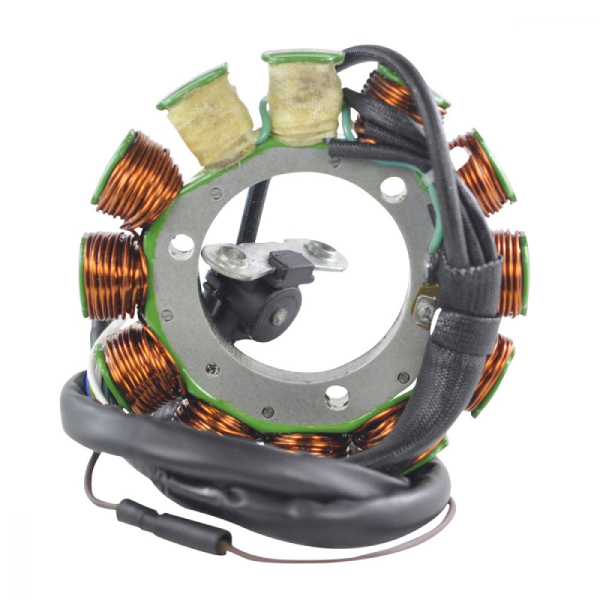

Brand new stator assembly 200 watts
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All product shipped are tested
20% MORE OUTPUT OVER STOCK, WORK WITH ALL OTHER OEM COMPONENTS.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
| Weight | 0.95 kg |
|---|---|
| Dimensions | 16.002 × 6.096 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM PART NUMBER
- 31120-HN1-000, 31120.HN10.00, 31120 HN1 000, 31120HN1000
- 31120-HN1-003, 31120.HN10.03, 31120 HN1 003, 31120HN1003
- 31120-HN1-A40, 31120.HN1.A40, 31120 HN1 A40, 31120HN1A40
- 31120-HN1-A41, 31120.HN1.A41, 31120 HN1 A41, 31120HN1A41
OTHER PART NUMBER
- RM01022
