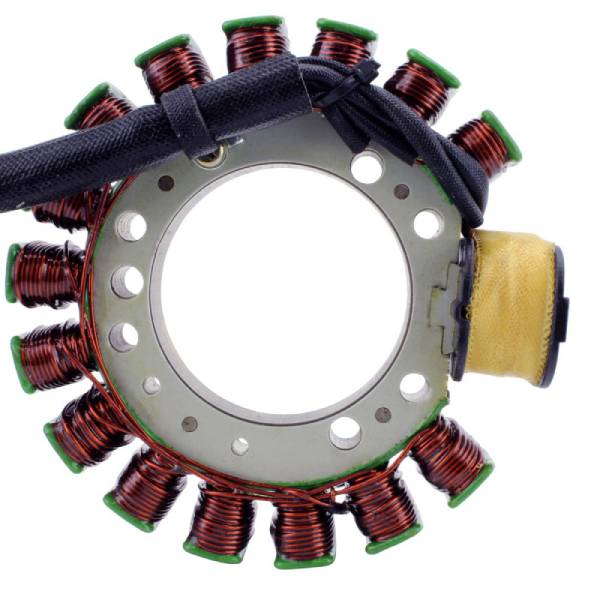

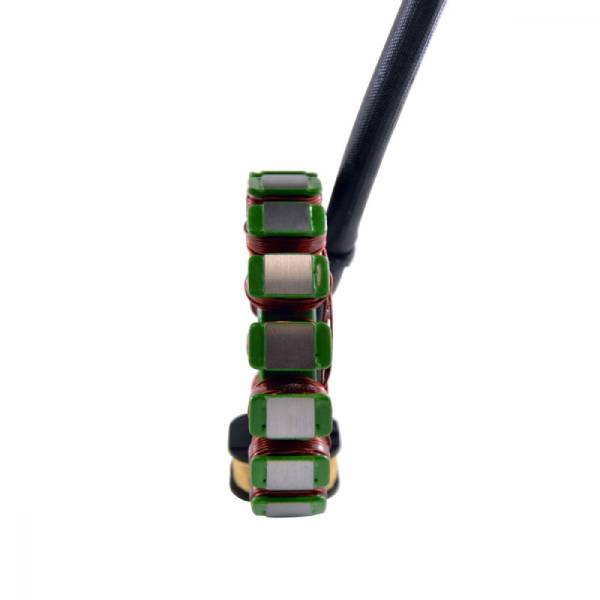

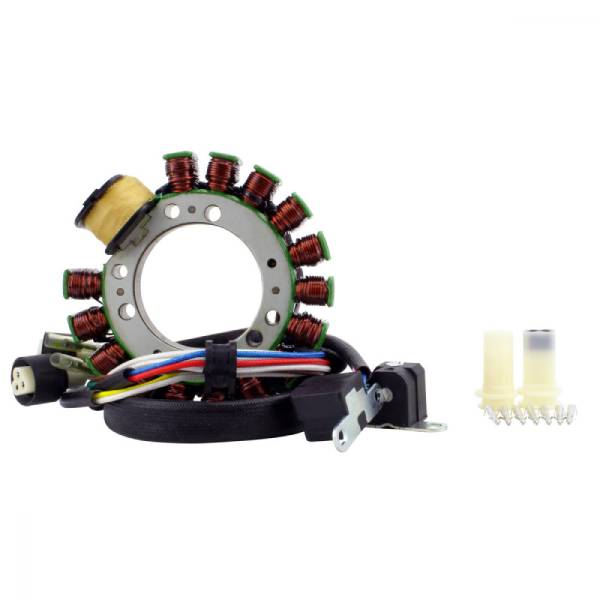

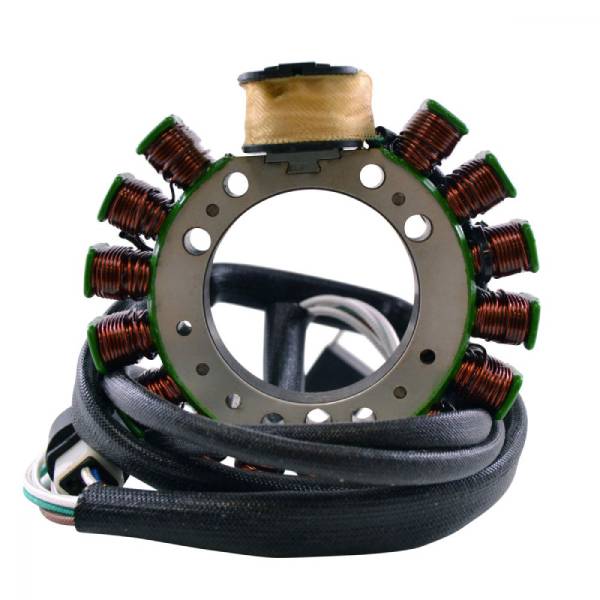

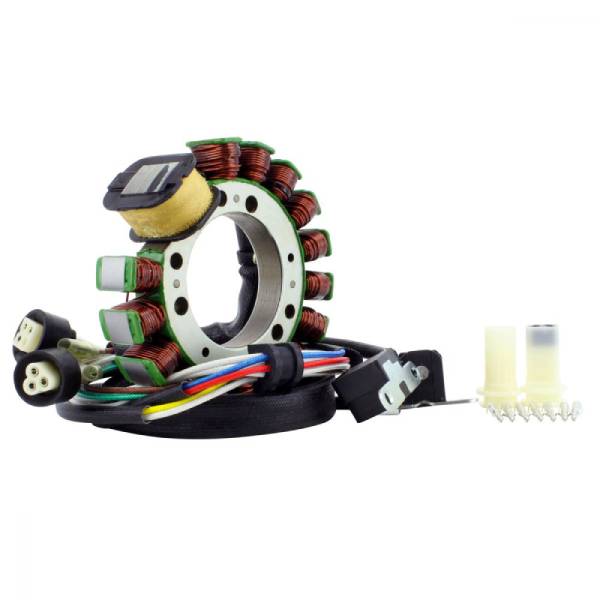

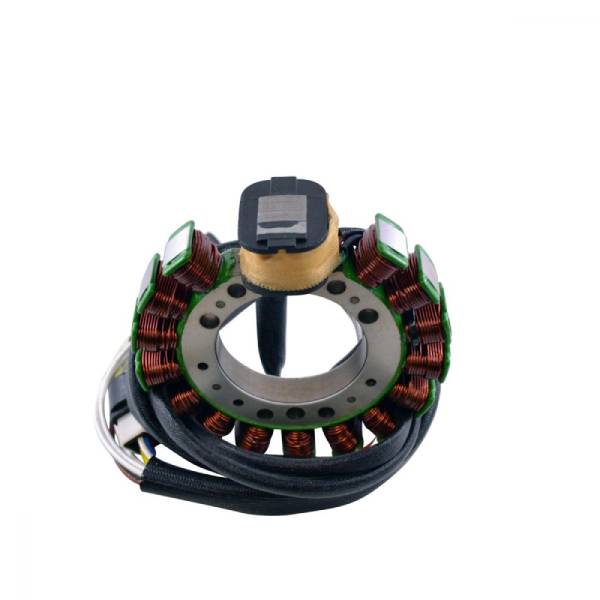

RM01035 | Stator for Yamaha YFM 350 Moto 4 YFP 350 Terrapro 1987-1989 |
C$280.89
Dimensions :
Interior diameter : 52mm
Exterior diameter : 115mm
Thickness : 40mm
Length of wires stator to grommet : 300mm
Length of wires grommet to plug : 490mm
Length of pickup coil’s wire to grommet : 295mm
Other specifications :
Number of wires : 9
Number of plugs : 4
Number of pins : 8
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Blue to Red = 215ohms +/-20%
Pickup : Yellow to White = 215ohms +/-20%
Source : Green to Brown = 300ohms +/-20%
Available on backorder
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

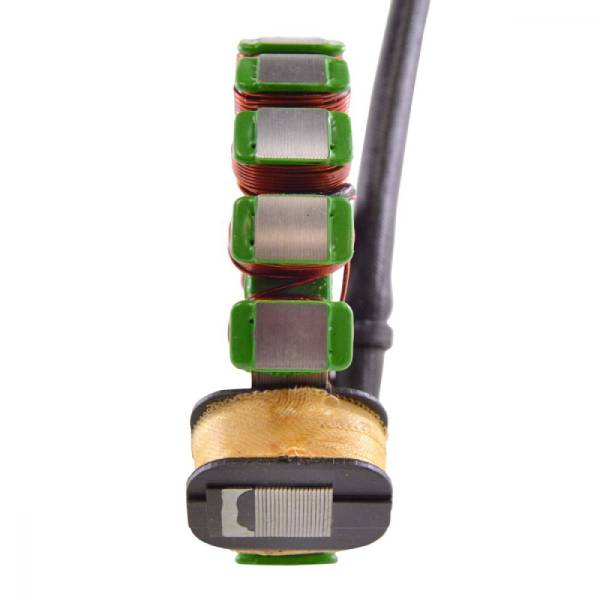

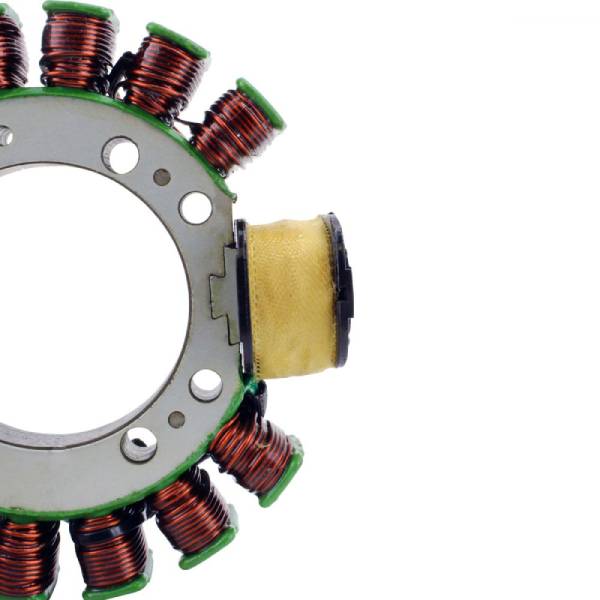

- Pick up pulsar coil included

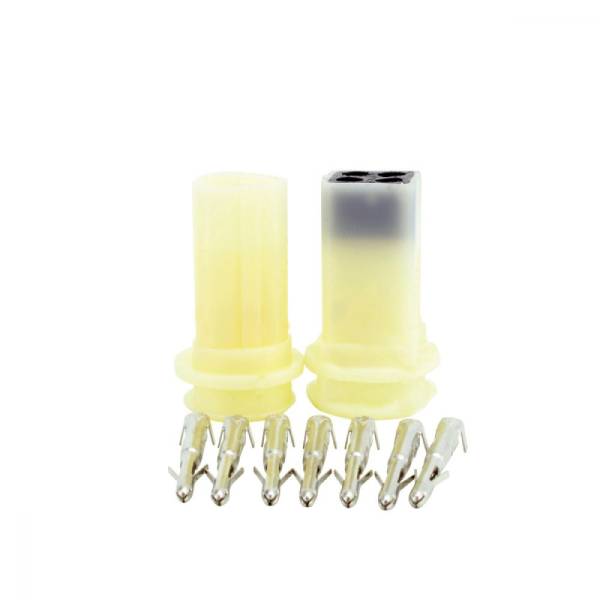

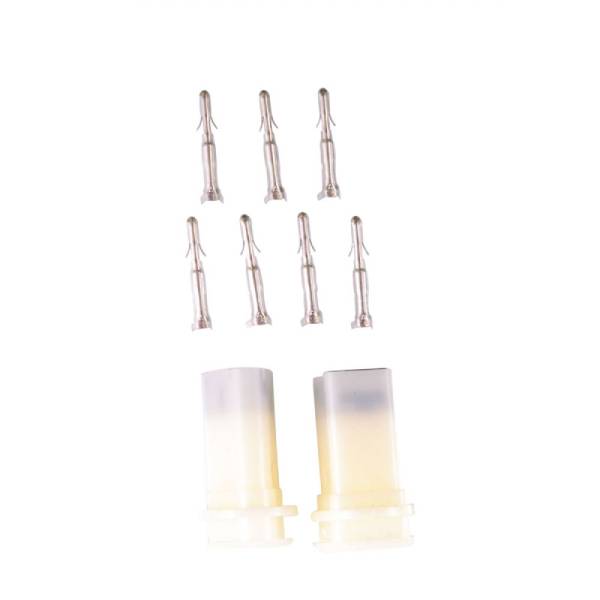

- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
Please note : The pick up coil with the white dot has to be installed on top
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
| Weight | 0.97 kg |
|---|---|
| Dimensions | 16.002 × 7.112 × 16.00 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM PART NUMBER
- 1YW-85510-20-00, 1YW.85510.20.00, 1YW 85510 20 00, 1YW855102000
- 1YW-85510-21-00, 1YW.85510.21.00, 1YW 85510 21 00, 1YW855102100
- 2NL-85510-20-00, 2NL.85510.20.00, 2NL 85510 20 00, 2NL855102000
OTHER PART NUMBER
- RM01035
