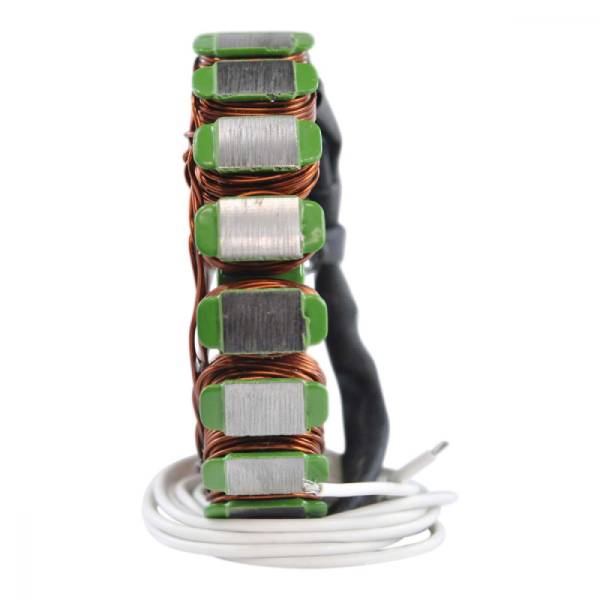

RM01040 | Stator for BMW F / G 650 | Honda VT 500 | Suzuki VS 800 | Yamaha XZ 550 | TDM 850 1982-2011 | 31120-MCJ-003 32101-38A00 |
C$206.89
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 16 mm
Length of wires stator to grommet: 1220 mm
Other specifications :
Number of wires: 3
Number of pins: 3
Wire to wire resistance :
Alternator: White Between each White = 0.2 ohms +/-20%
Available on backorder
Brand new aftermarket stator
- You must re-install your original connector and grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
- Higher grade of electric components.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
| Weight | 1.21 kg |
|---|---|
| Dimensions | 16.002 × 6.096 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM PART NUMBER
- 11H-81410-10-00, 11H.81410.10.00, 11H 81410 10 00, 11H814101000
- 11H-81410-20-00, 11H.81410.20.00, 11H 81410 20 00, 11H814102000
- 31120-MCJ-003, 31120.MCJ.003, 31120 MCJ 003, 31120MCJ003
- 31120-MF5-004, 31120.MF5.004, 31120 MF5 004, 31120MF5004
- 31120-MF8-000, 31120.MF8.000, 31120 MF8 000, 31120MF8000
- 31120-MF8-004, 31120.MF8.004, 31120 MF8 004, 31120MF8004
- 32101-38A00, 32101.38A00, 32101 38A00, 3210138A00
- 32101-38A10, 32101.38A10, 32101 38A10, 3210138A10
- 32101-45C30, 32101.45C30, 32101 45C30, 3210145C30
- 3LD-81410-00-00, 3LD.81410.00.00, 3LD 81410 00 00, 3LD814100000
- OEM-BMW,OEM.BMW,OEM BMW,OEMBMW
OTHER PART NUMBER
- RM01040
