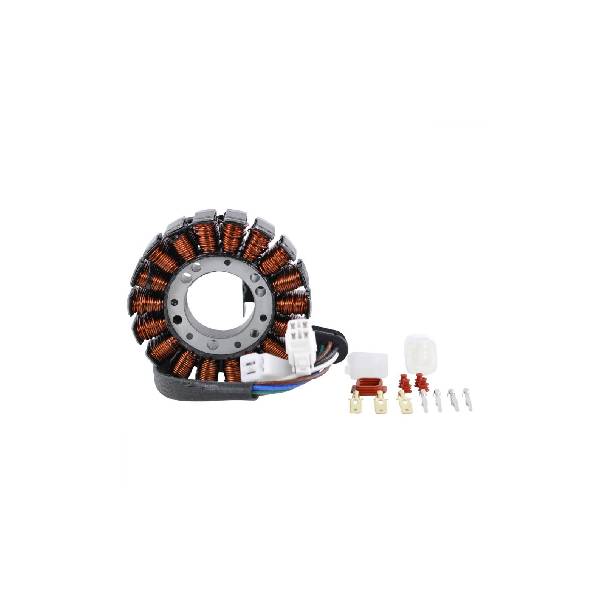

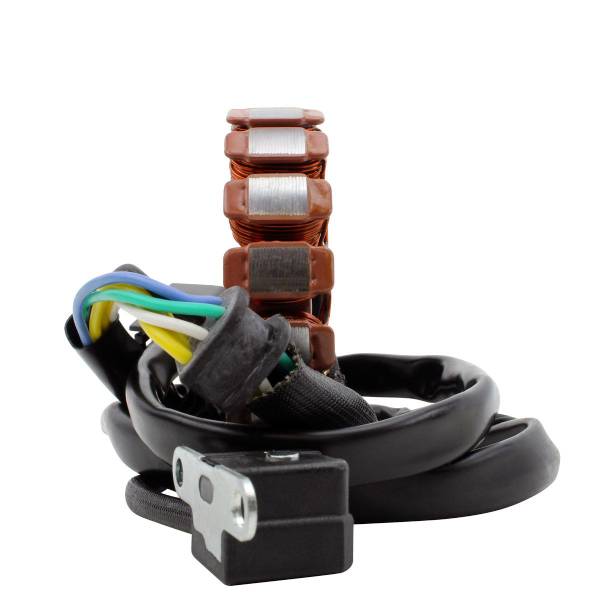

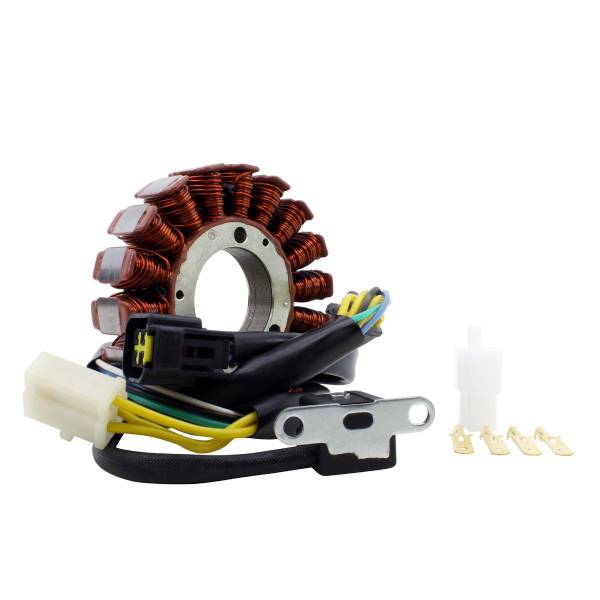

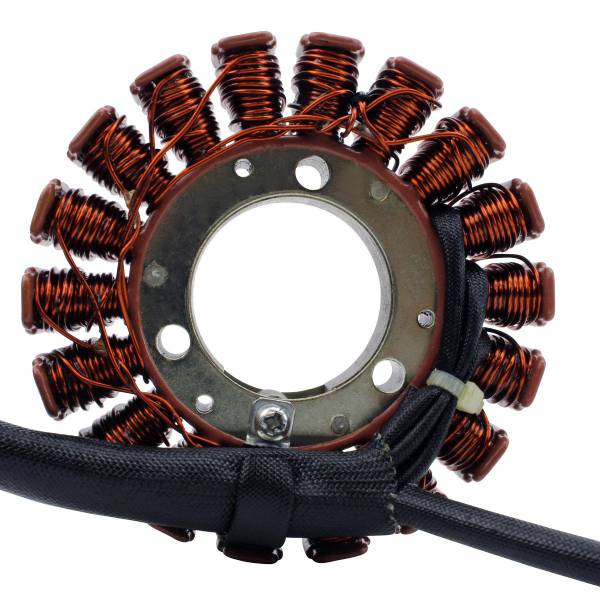

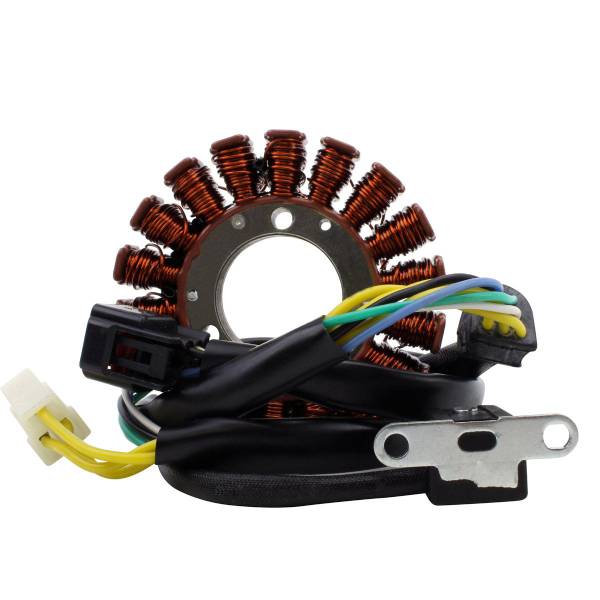

RM01049 | High Output Stator for Suzuki DRZ 250 / DRZ 400 E / S / SM | Kawasaki KLX 400 2000-2024| 32101-29F00 / 21003-S007 |
C$250.89
Dimensions:
Interior diameter: 34 mm
Exterior diameter: 93 mm
Thickness: 14 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 400 mm & 600 mm
Length of pickup coil’s wire to grommet: 110 mm
Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator: Yellow Between each Yellow = 0.7 ohms +/-20%
Alternator: Yellow to Ground O.L on display
Pickup: Blue to Green = 200 ohms +/-20%
Position Sensor: Black to White = 0.3 ohms +/-20%

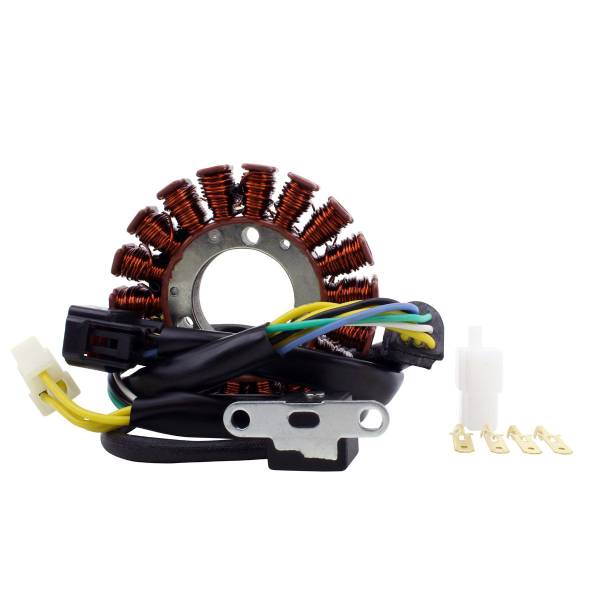

Brand new high output stator
- Direct replacement to your original unit

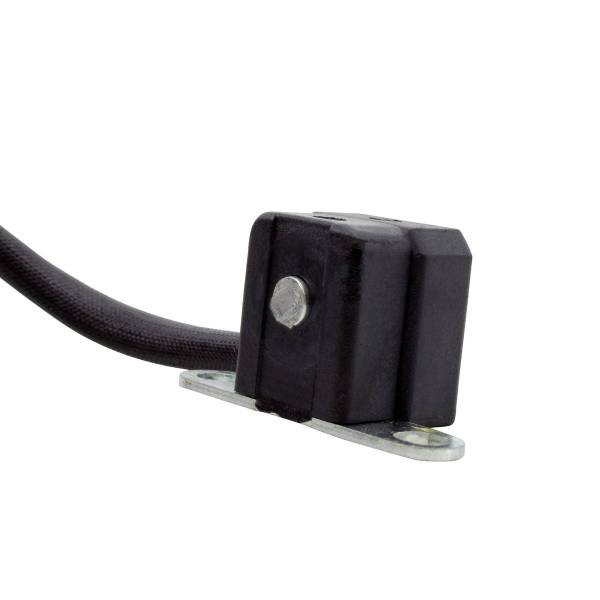

- Pick up pulsar coil included

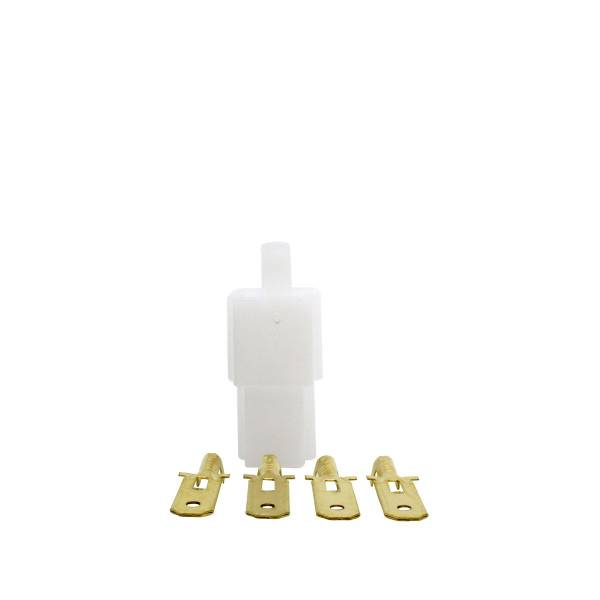

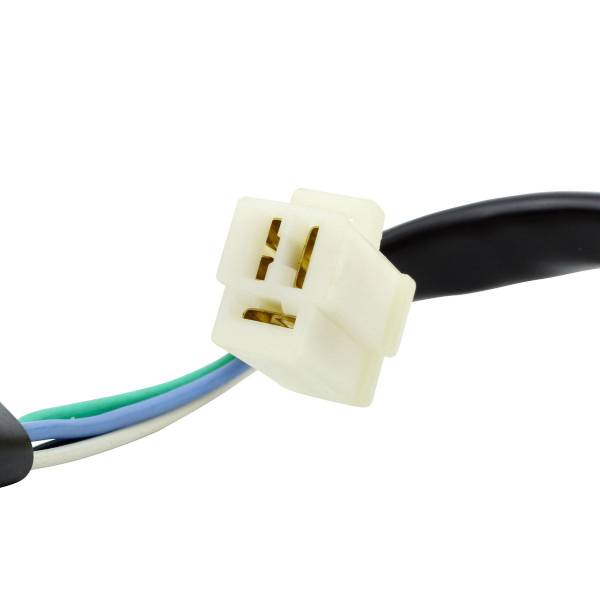

- Connector included

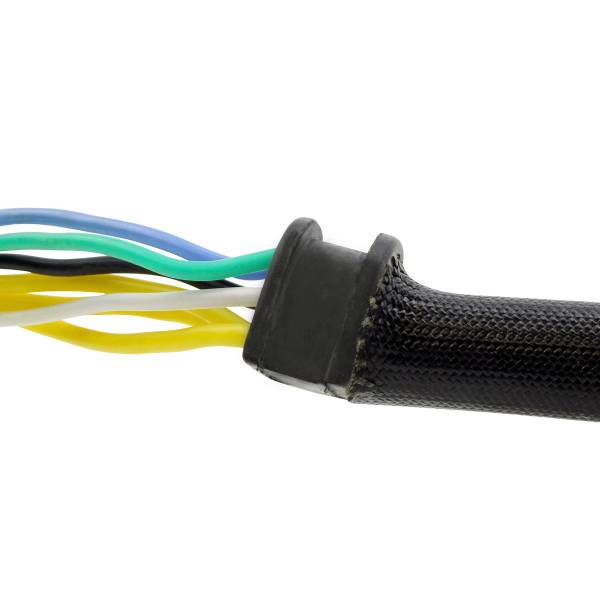

- Rubber grommet included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code then youﾒre original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010ﾒﾒ.
| Weight | 0.70 kg |
|---|---|
| Dimensions | 16.002 × 6.096 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM PART NUMBER
- 21003-S007, 21003.S007, 21003 S007, 21003S007
- 32101-13E00, 32101.13E00, 32101 13E00, 3210113E00
- 32101-13E02, 32101.13E02, 32101 13E02, 3210113E02
- 32101-13E03, 32101.13E03, 32101 13E03, 3210113E03
- 32101-29F00, 32101.29F00, 32101 29F00, 3210129F00
- 32101-29F10, 32101.29F10, 32101 29F10, 3210129F10
- 32101-29F11, 32101.29F11, 32101 29F11, 3210129F11
OTHER PART NUMBER
- RM01049
