RM22412 | Kit Stator + Voltage Regulator Rectifier + PeakRPM CDI Box + Ext. Ignition Coil for Kawasaki KLF 300 Bayou B 1988-1991 |
C$540.06

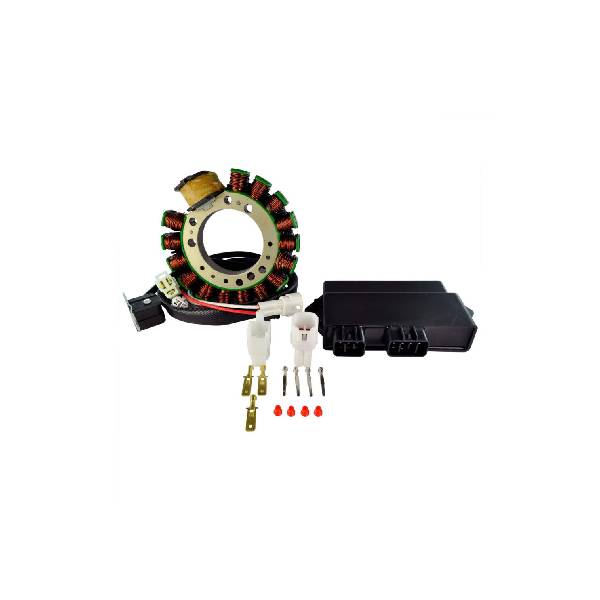

Kit Stator + Voltage Regulator Rectifier + PeakRPM CDI Box + Ext. Ignition Coil for Kawasaki KLF 300 Bayou B 1988-1991
Dimensions Stator :
Interior Diameter: 28 mm
Exterior Diamter: 102 mm
Thickness: 20 mm
Wires length stator to terminals : 700 mm
Other specifications :
Number of wires :3
Number of plugs: 0
Number of terminals : 3
Wire to wire resistance :
Alternator :White Between each White = 0.4 ohms+/-20%
Dimensions Voltage Regulator Rectifier:
Width : 79 mm
Length : 89 mm
Height: 27mm
Fixation holes center to center : 70 mm
Other specifications :
Number of plugs : 1
Number of pins : 6
Dimensions CDI Box :
Height: 22 mm
Length: 80 mm
Width: 74 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Dimensions External Ignition Coil :
Distance between fixation holes: 102 mm
Available on backorder
Brand New Kit Stator + Voltage Regulator Rectifier + PeakRPM CDI Box + External Ignition Coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Voltage Regulator Rectifier
- No assembly required
- Higher grade of electric components.
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Stator
- Higher grade of electric components
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Grommet included
- Connectors included
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
PeakRPM CDI Box
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
External Ignition Coil
- Highest grade lamination materials
| Weight | 1.79 kg |
|---|---|
| Dimensions | 7.112 × 5.588 × 5.08 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM NUMBER
- RM22412-R00, RM22412.R00, RM22412 R00, RM22412R00
ADDITIONAL NUMBER
- RM22412
