RM22431 | Kit Generator Stator + Voltage Regulator Rectifier for Suzuki GSXR 600 GSX-R 750 2000-2003 |
C$347.78

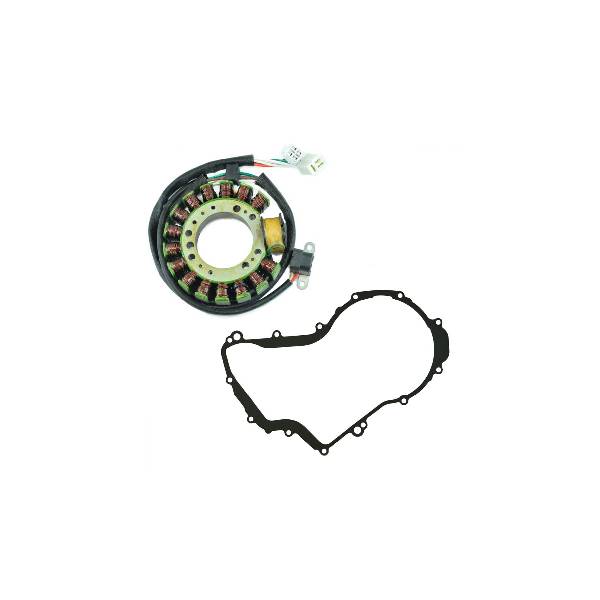

Stator
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 102 mm
Thickness : 20 mm
Length of wires stator to terminal : 700 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White between each White = 0.6 ohms +/-20%
Alternator : White To Ground = O.L
Voltage regulator rectifier
Dimensions :
Width : 80 mm
Length : 103 mm
Height : 32 mm
Fixation holes center to center : 75 mm
Other specifications :
Number of plugs : 1
Number of pins : 5
You save 15% off the items price combined, when buying a kit.
Brand new stator + voltage regulator rectifier kit
-
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All product shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator
Brand new aftermarket stator
-
-
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
-
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Voltage regulator rectifier
Brand new aftermarket voltage regulator rectifier
-
-
-
- No assembly required
- Connector included
- Higher grade of electric components.
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
-
-
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Stator
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Voltage regulator rectifier
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
| Weight | 1.41 kg |
|---|---|
| Dimensions | 7.112 × 5.588 × 5.08 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM NUMBER
- 22431-R00, 22431.R00, 22431 R00, 22431R00
ADDITIONAL NUMBER
- RM22431
