RM22813 | Stator + CDI Box + Ignition Coil + Gasket for Yamaha YFM 350 Warrior 1990-1995
C$398.76

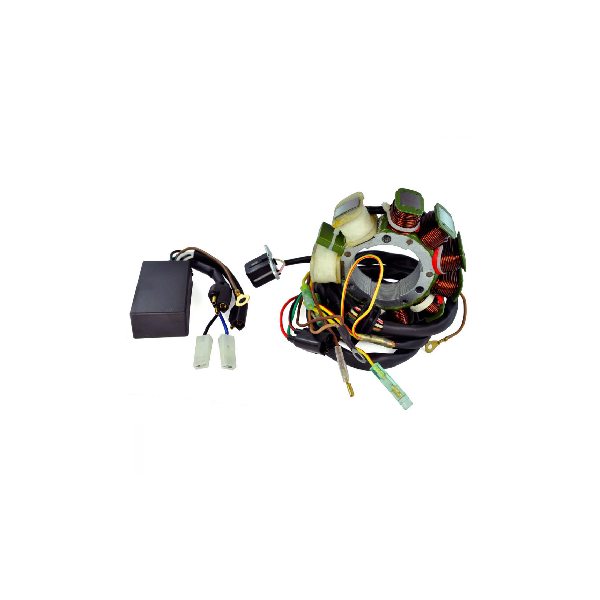

Stator + CDI Box + Ignition Coil + Gasket for Yamaha YFM 350 Warrior 1990-1995
Stator
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 13mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 500mm
Length of pickup coil’s wire to grommet : 130mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : White to Red = 570ohms +/-20%
Source : Brown to Green = 315ohms +/-20%
CDI Box HP
Number of wires : 13
Number of terminals : 13
Bracket center to center: 85mm
Width: 25 mm
Length: 90 mm
External ignition coil
Bracket to bracket center 55 mm
Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
Stator:
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
PeakRPM CDI Box:
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
External Ignition Coil:
- Highest grade of lamination materials
- Spark plug cap(s) included
| Weight | 1.66 kg |
|---|---|
| Dimensions | 34.29 × 23.495 × 7.62 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM NUMBER
- RM22813-R00, RM22813.R00, RM22813 R00, RM22813R00
ADDITIONAL NUMBER
- RM22813
