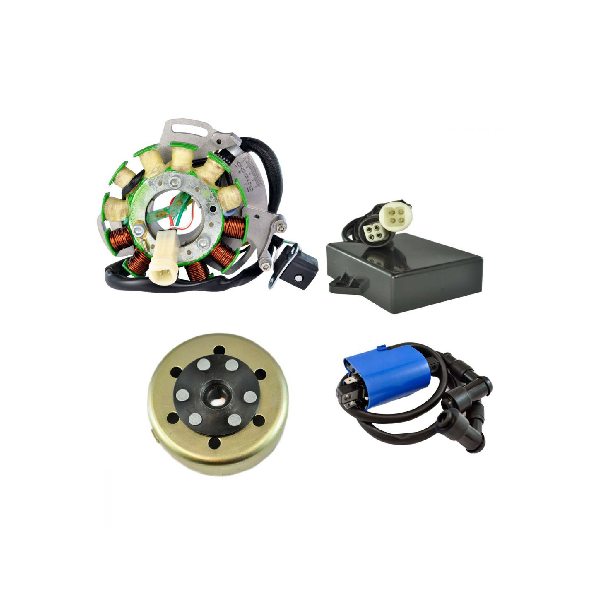

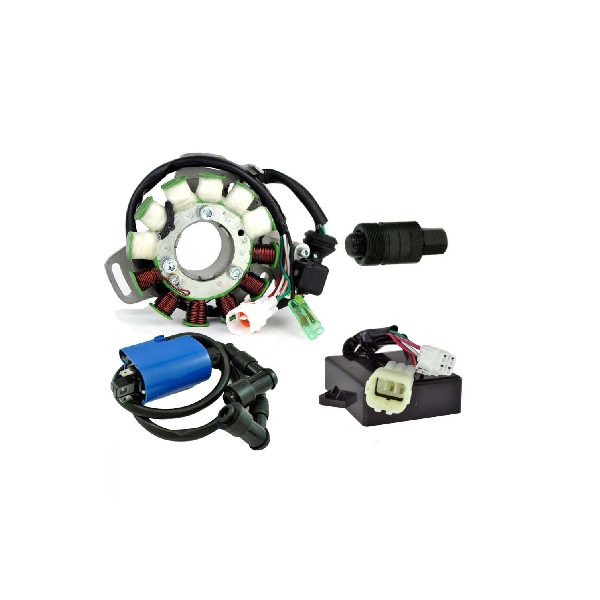

Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Flywheel Puller
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
High Output Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
PeakRPM CDI Box:
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
External Ignition Coil
- Highest grade of lamination materials
- Spark plug cap(s) includedBefore installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.CDI Box HP
Our CDI may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.Flywheel
Before attempting to start your banshee adjusting the air gap is necessary.Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010ﾒﾒ.
External ignition coilRemove the yellow wire from the external ignition coil, if it is not applicable to your model.
