RM22854 | RMSTATOR New Aftermarket Yamaha Kit Stator 100 W + HP CDI Box + Ignition Coil + Backplate + Flywheel + Puller |
C$828.99
Kit Stator 100 W + PeakRPM CDI Box + Ignition Coil + Backplate + Flywheel + Puller for Yamaha YFZ 350 Banshee 1997-2006
Stator
Interior diameter: 40mm
Exterior diameter: 103mm
Thickness: 17mm
Length of wires stator to grommet: 150mm
Length of wires grommet to plug: 330mm
Length of pickup coil’s wire to grommet: 270mm
Other specifications :
Number of wires: 6
Number of plugs : 3
Number of pins : 3
Wire to wire resistance :
Alternator : = Yellow to Black = 0.4 ohms +/-20%
Pickup : White/Green to White/Red = 115 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%
Dimensions High Performance CDI Box:
Height: 25mm
Length: 87mm
Width: 71mm
Fixation holes center to center: 85mm
Other specifications:
Number of plugs: 2
Number of pins: 8
External Ignition coil
Distance between fixation holes: 90mm

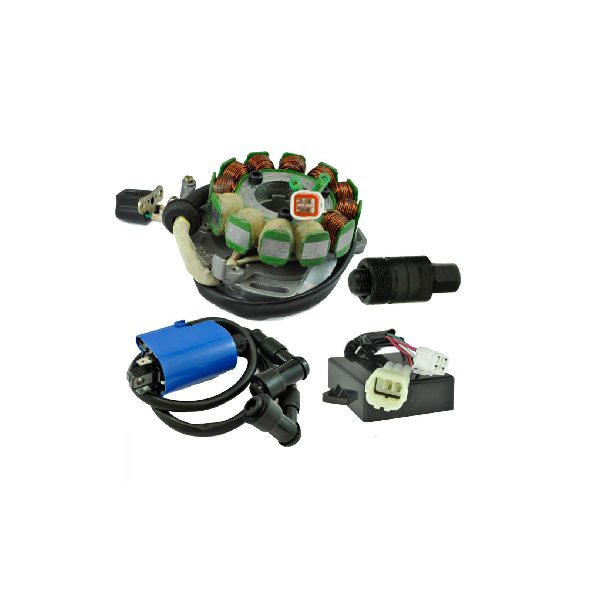

Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Flywheel + Puller
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
High Output Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
PeakRPM CDI Box:
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
External Ignition Coil
- Highest grade of lamination materials
- Spark plug cap(s) included
Improved Stronger Magneto Flywheel Rotor
RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Banshee. This flywheel can be used as a direct replacement to the OEM.
We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm’s.
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
CDI Box HP
Our CDI may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.
Flywheel
Before attempting to start your banshee adjusting the air gap is necessary.
Rotate the flywheel so the raised node is lined up with the pick up/pulsar coil and adjust as close as possible but no less than 0.010ﾒﾒ.
External ignition coil
Remove the yellow wire from the external ignition coil, if it is not applicable to your model.
| Brand |
RMSTATOR |
|---|---|
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OTHER PART NUMBER
- RM22854
