RM22859 | Kit Stator 200 W + AC Regulator + PeakRPM CDI Box for Yamaha YFZ 350 Banshee 1995-1996 |
C$686.67
Stator
Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil’s wire to grommet : 80mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%
Dimensions AC Regulator:
Height: 20 mm
Length: 45 mm
Width: 45 mm
Other specifications:
Number of terminals: 2
Wires length: 130 mm
Dimensions High Performance CDI Box:
Height: 25mm
Length: 87mm
Width: 71mm
Fixation holes center to center: 85mm
Wires length: 140mm
Other specifications:
Number of plugs: 2
Number of pins: 8

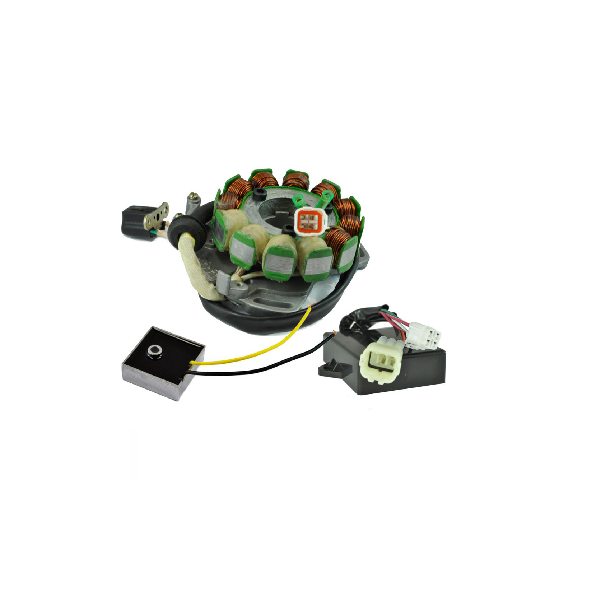

Brand New Kit Stator + AC Regulator + PeakRPM CDI Box
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
High Output Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
For a limited time we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.
- AC Regulator
- 12 Volts regulator used by Baja winners
- For use with all standard halogen and quartz lights
- Precise voltage control, eliminates light burnout
- Reduce flickering and dimming
- Simple installation
- Works with all other OEM parts
- Rated at 225 watts
PeakRPM CDI Box:
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
Before installing your new regulator/rectifier:
- Bolt regulator to frame
- Ground Black wire to Frame or Harness Ground
- Connect Yellow Wire to AC Output lead of the Stator
CDI Box HP
Our CDI may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.
| Weight | 1.50 kg |
|---|---|
| Dimensions | 16.002 × 7.112 × 16.00 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM NUMBER:
- RM-22859, RM.22859, RM 22859, RM22859
ADDITIONAL NUMBER
- RM22859
