RM22861 | Kit HO Stator + External Ignition Coil + Crankcase Cover Gasket for Yamaha YFM 350 Warrior / Raptor 2002-2013 |
C$324.47
Stator
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 13 mm
Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pickup: Green to Blue = 518 ohms =+/-20%
Position sensor: Red to White/Blue = 0.1 ohms+/-20%
External ignition coil
Bracket to bracket center 55 mm

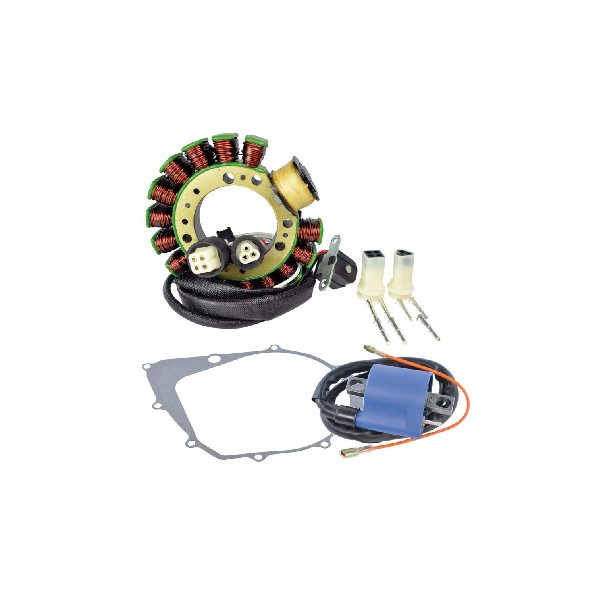

Brand New Kit Stator + External Ignition Coil + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Crankcase cover gasket included
External ignition coil
- Highest grade of lamination materials
- The Quality exceeds the OEM equipment
- Spark plug cap(s) includedBefore installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.External ignition coil
Remove the yellow wire from the external ignition coil, if it is not applicable to your model.
| Weight | 1.34 kg |
|---|---|
| Dimensions | 25.4 × 22.86 × 33.02 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
