RM23009 | High Output Stator 200 W + Voltage Regulator Rectifier + PeakRPM CDI Box for Yamaha YFZ 350 Banshee 1987-1994 |
C$650.78

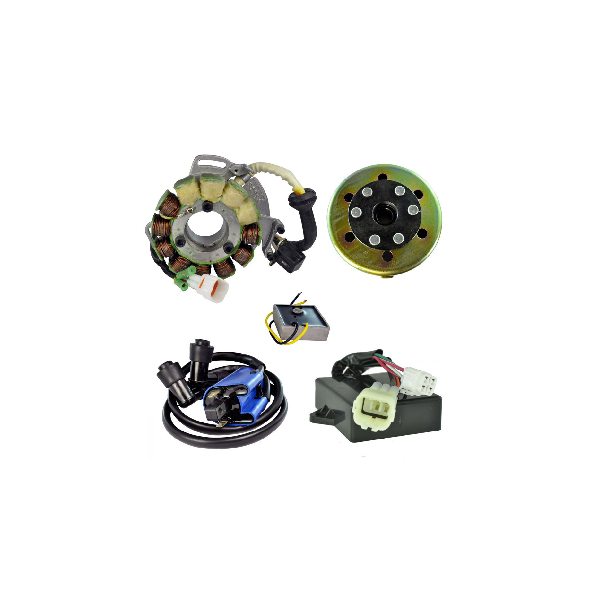

High output stator 200 watts Dimensions
Interior diameter: 41 mm
Exterior diameter: 103 mm
Thickness: 14 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 380 mm
Length of pickup coil’s wire to grommet: 100 mm
Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 6
Wire to wire resistance:
Alternator: Black to Yellow = 0.2 ohms +/-20%
Pickup: White/Red to White/Green = 100 ohms +/-20%
Source: Red to Green = 15 ohms +/-20%
AC Regulator Dimensions
Width: 45 mm
Length: 45 mm
Height: 20 mm
Wires length: 130 mm
Other specifications:
Number of wires: 2
Number of terminals: 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A – 10 A / 50 W – 200 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰
Please note: This regulator has two wires, yellow to power and black to ground.
High performance CDI Box Dimensions
Height: 25 mm
Length: 85 mm
Width: 71 mm
Wires length : 120 mm & 140 mm
Fixation holes center to center: 85 mm
Other specifications:
Number of plugs: 8
Number of pins: 2
Please note: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.
Available on backorder
Brand new high output stator 200 watts, AC voltage regulator rectifier and PeakRPM CDI box
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- The Quality exceeds the OEM equipment
- All product shipped are tested
- All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
High output stator 200 watts
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
AC Regulator
- 12 Volts regulator used by Baja winners
- For use with all standard halogen and quartz lights
- Precise voltage control, eliminates light burnout
- Reduce flickering and dimming
- Rated at 225 watts.
PeakRPM CDI Box
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components.Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.Before installing your new regulator/rectifier:
- Bolt regulator to frame
- Ground Black wire to Frame or Harness Ground
- Connect Yellow Wire to AC Output lead of the Stator
CDI Box HP
Our CDI may use a different wire color code then your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such. .
| Weight | 1.38 kg |
|---|---|
| Dimensions | 33.02 × 5.08 × 22.86 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM NUMBER:
- RM-23009, RM.23009, RM 23009, RM23009
ADDITIONAL NUMBER
- RM23009
DO NOT MANUFACTURE PARTS, DESIGN PERMANENT SOLUTIONS
We cultivate our actions towards finding permanent solutions. There is no way, us, as customers, would like to replace a part again and again. This mindset forces our team to design to fix, to conquer these pesky electrical failures in powersport.
GOOD DESIGN PRODUCE GOOD PRODUCTS. EFFICIENT DESIGN CREATES STELLAR PRODUCTS.
We are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
WE ALL ARE CUSTOMERS ELSEWHERE.
In our shopping journey for buying our daily goods, we all expect to be treated with respect in a relation that makes us feel welcomed. Our team is encouraged to elevate that standard even higher and to provide all the information necessary for an easy and reliable installation.
OWN YOUR CUSTOMER PAIN LIKE IT IS YOURS
We own powersport rides ourselves. We feel the pain of dealing with unsolvable troubleshooting on our rides. We are committed in manufacturing complete solutions to known or I-would-never-have-suspected issues that are plaguing your rides... and ours.
