RM23012 | RMSTATOR New Aftermarket Yamaha Kit Stator + Regulator Rectifier + High Performance CDI Box + External Ignition Coil |
C$545.99
Stator Dimensions
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 460 mm
Length of pickup coil’s wire to grommet : 110 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%
Pickup : Green to Blue = 440 ohms +/-20%
Source : Red to Blue/White = 0.2 ohms +/-20%
Regulator Dimensions
Height: 84 mm
Length: 79 mm
Width: 25 mm
Other specifications:
Number of plugs: 1
Number of pins : 6
Bracket center to center: 60 mm
CDI Box Dimensions
Height : 27 mm
Length : 110 mm
Width : 78 mm
Distance between fixations holes : 126 mm

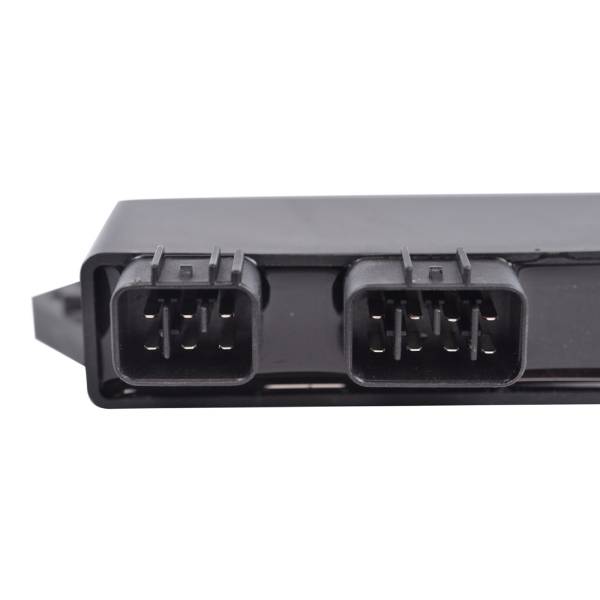

Other specifications:
Number of plugs : 2
Number of pins : 10
Available on backorder
Brand new, Rmstator Kit Stator + Regulator Rectifier + High Performance CDI Box + External Ignition Coil.
Kit Stator + Voltage Regulator Rectifier + High performance CDI Box + External ignition coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The Quality exceeds the OEM equipment
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

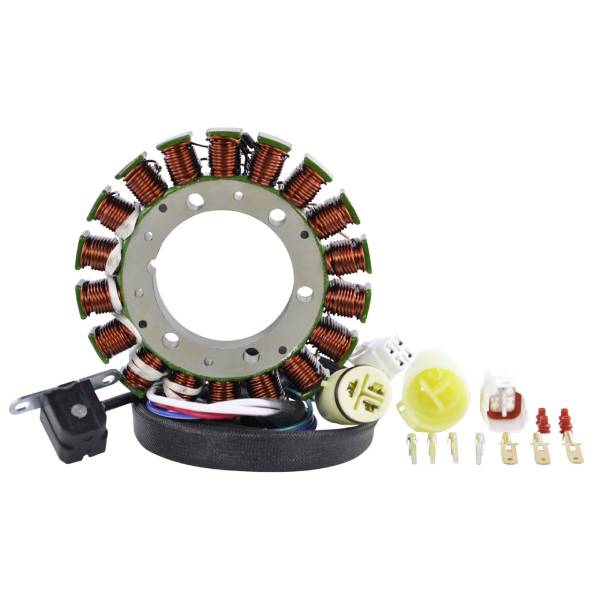

Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included

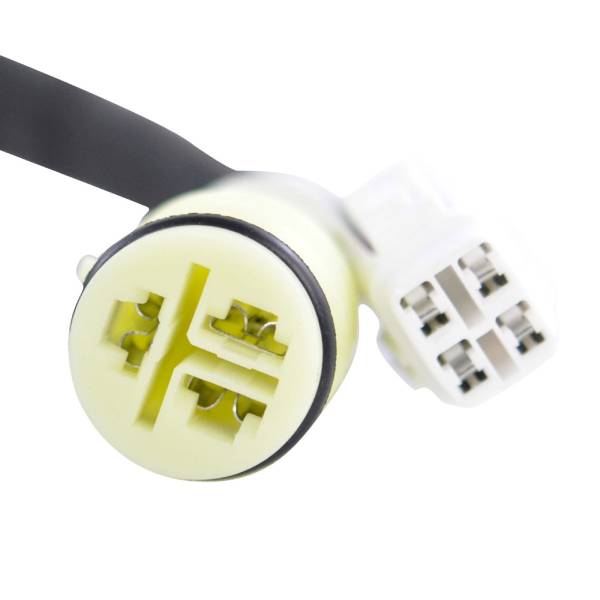

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

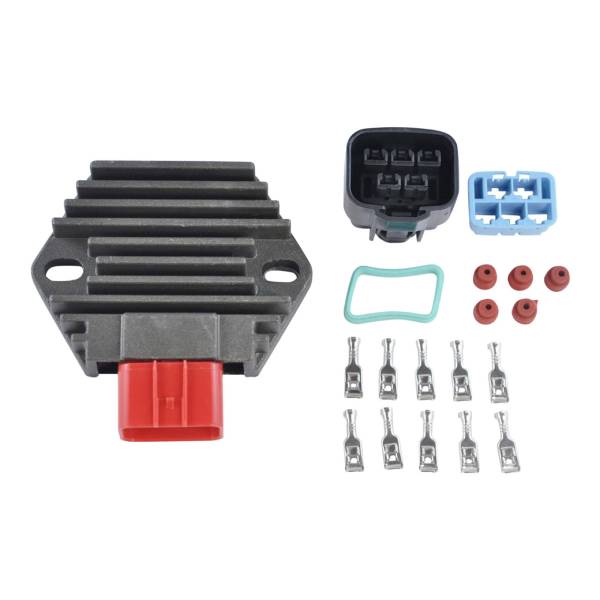

Voltage regulator rectifier
- Improved heat sink and charging capabilities
- Higher grade of electric components

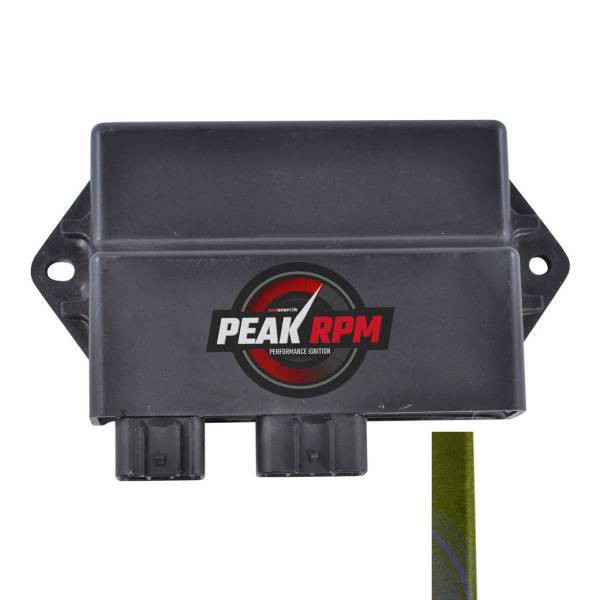

High performance CDI box
- Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
- Higher grade of electronic components

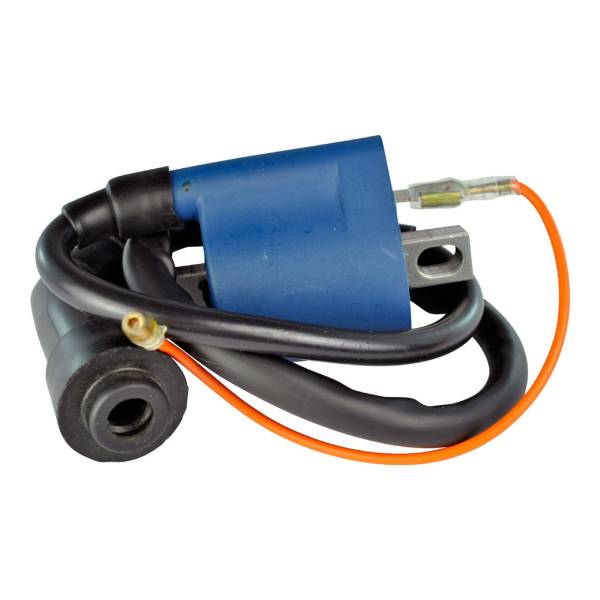

External ignition coil
- Spark plug cap(s) included
| Brand |
RMSTATOR |
|---|---|
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM PART NUMBER
- RM23012-R00, RM23012R00, RM23012.R00, RM23012 R00
OTHER PART NUMBER
- RM23012
