RM23033 | Kit Flywheel Stator Gasket For Ski Doo Renegade 1200 Adrenaline 4-TEC EFI 2013 |
C$623.37
Stator Dimensions:
Interior diameter : 42 mm
Exterior diameter : 114 mm
Thickness : 19 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 600 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Flywheel Dimensions:
Exterior Diameter: 129 mm
Interior Diameter: 116 mm
Interior Diameter Center Housing: 30 mm
Exterior Diameter Center Housing: 38 mm
Thickness (exterior): 7 mm
Thickness (interior): 7 mm

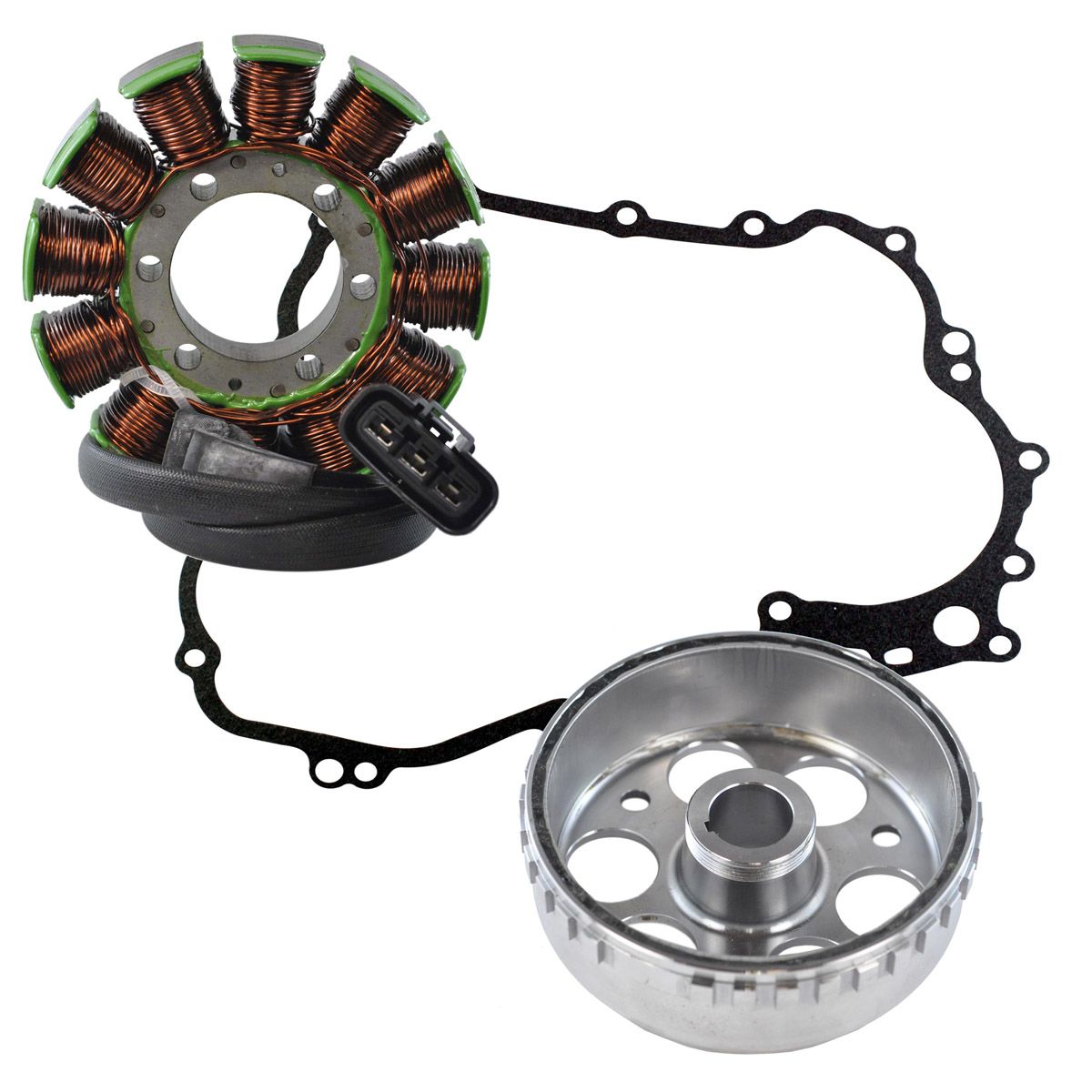

Brand New Kit Magneto Flywheel + Stator + Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Flywheel :
RMSTATOR is offering a new replacement flywheel for your Ski-doo. This flywheel can be used as a direct replacement to the OEM.
What is improved about the RM11503 flywheel?
Ski-doo 1200 snowmobiles are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.
The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.
The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.
Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high quality replacement part that corrects the problem for half the price. The RM11503 flywheel is not only a cost effective way to replace your failed Ski-doo flywheel, but a great investment when replaced before the failure occurs.
Stator :
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
| Weight | 2.79 kg |
|---|---|
| Dimensions | 33.02 × 25.4 × 22.86 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM NUMBER
- RM23033.R00, RM23033R00.RM23033-R00, RM23033R00
ADDITIONAL NUMBER
- RM23033
