RM30506H | Mosfet Regulator for BMW Arctic Cat Polaris Triumph Yamaha Kawasaki Honda Ducati Suzuki 2002-2024 | 1D7-81960-00-00 |
C$147.89
Dimensions :
Width : 95 mm
Length : 30 mm
Height: 110 mm
Fixation holes center to center : 78 mm
Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 12 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
*Please note that there are two possible regulators for the models RZR XP 900 EFI & RZR XP 4 900 in 2012

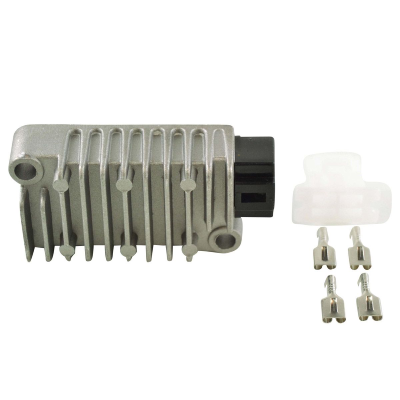

Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested.
Before installing your new voltage regulator rectifier;
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
2006 2007 Can-Am Outlander 400 Installation Particularities
If you are using this regulator for 2006 2007 Can-Am Outlander 400 fitments, it will function perfectly fine. You will need convert your vehicle wiring to our included mating connectors.
From your original stator connector, the outer 2 Yellow wires will be spliced into 1, the center 2 Yellow wires will be spliced into 1, and the opposite outer 2 Yellow wires will be spliced into 1. These go into our Grey connector in any location, there is no order.
The Red Battery + goes to the inner terminal of the Black connector. The Brown Battery – (ground) wire goes to the outer terminal of the Black connector. The center terminal of the black connector is not used.
You will need relocate or build a mounting bracket for this regulator, it will not mount like the original regulator for this application.
| Weight | 0.46 kg |
|---|---|
| Dimensions | 14.986 × 9.398 × 5.08 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM NUMBER
- 0800-177000, 0800.177000, 0800 177000, 0800177000
- 1231-7718422, 1231.7718422, 12317718422, 12317718422
- 1D7-81960-00-00, 1D7.81960.00.00, 1D7 81960 00 00,1D7819600000
- 1D7-81960-01-00, 1D7.81960.01.00, 1D7 81960 01 00, 1D7819600100
- 21066-0008, 21066.0008, 21066 0008, 210660008
- 21066-0022, 21066.0022, 21066 0022, 210660022
- 21066-0714, 21066.0714, 21066 0714, 210660714
- 21066-0744, 21066.0744, 21066 0744, 210660744
- 278-002-021, 278.002.021, 278 002 021, 278002021
- 27D-81960-00-00, 27D.81960.00.00, 27D 81960 00 00, 27D819600000
- 31600-HP0-A01, 31600.HP0.A01, 31600 HP0 A01, 31600HP0A01
- 31600-MJF-A01, 31600.MJF.A01, 31600 MJF A01, 31600MJFA01
- 5JW-81960-00-00, 5JW.81960.00.00, 5JW 81960 00 00, 5JW819600000
- 710-000-261, 710-000-261, 710 000 261, 710000261
- 710-000-870, 710.000.870, 710 000 870, 710000870
- 710-001-103, 710.001.103, 710 001 103, 710001103
- T1-30-04-70, T1.30.04.70, T1 30 04 70, T1300470
- T1-30-06-75, T1.30.06.75, T1 30 06 75, T1300675
- 8JP-H1960-00-00, 8JP.H1960.00.00, 8JP H1960 00 00, 8JPH19600000
- 515-177-325, 515.177.325, 515 177 325, 515177325
- 32800-26J01, 32800.26J01, 32800 26J01, 3280026J01
- 31600-HN8-003, 31600.HN8.003, 31600 HN8 003, 31600HN8003
- 21066-0771, 21066.0771, 21066 0771, 210660771
- 0824-072, 0824.072, 0824 072, 0824072
- 0824-078, 0824.078, 0824 078, 0824078
- 31600-HN8-000, 31600.HN8.000, 31600 HN8 000, 31600HN8000
- 32800-26J00,32800.26J00, 32800 26J00, 3280026J00
- 540-403-01B, 540.403.01B, 540 403 01B, 54040301B
- 1231-852-3367, 1231.852.3367, 1231 852 3367, 12318523367
- 710-000-907, 710.000.907, 710 000 907, 710000907
- 703-500-717, 703.500.717, 703 500 717, 703500717
- 31600-HR0-F01, 31600.HR0.F01, 31600 HR0 F01, 31600HR0F01
- 31600-MGZ-J01, 31600.MGZ.J01, 31600 MGZ J01, 31600MGZJ01
- 6NTV-151000-3000, 6NTV.151000.3000, 6NTV 151000 3000, 6NTV1510003000
- 6NQV-177000-2800, 6NQV.177000.2800, 6NQV 177000 2800, 6NQV1770002800
- 01AA-177000, 01AA.177000, 01AA 177000, 01AA177000
ADDITIONAL NUMBER
- RM30506H
