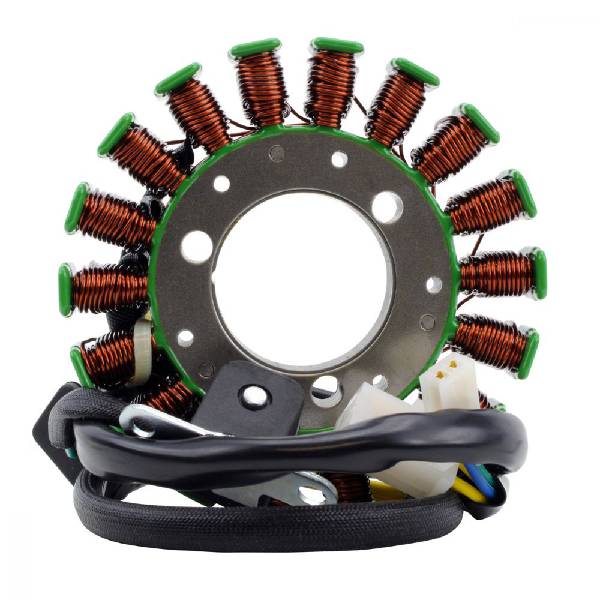

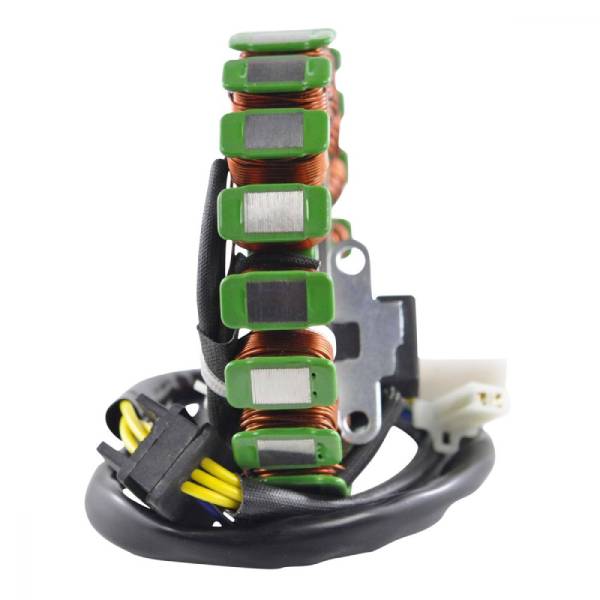

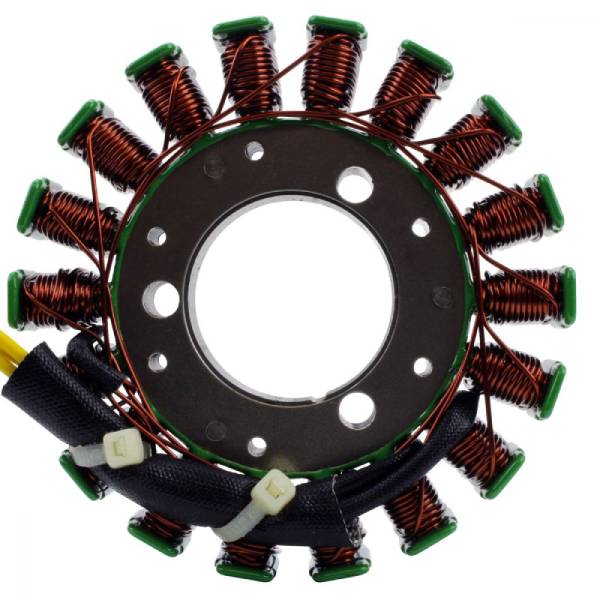

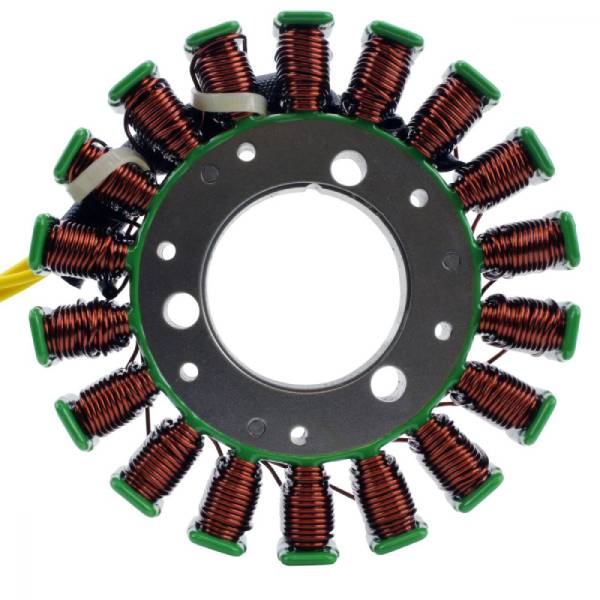

RMS010-101506 | Generator Stator for Suzuki GZ250 GZ 250 1999-2010 OEM# 32101-13F01 32101-13F00 |
C$206.89
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 104 mm
Thickness : 14.5 mm
Length of wires stator to grommet : 190 mm
Length of wires grommet to plug : 410 mm
Length of pickup coil’s wire to grommet : 60 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.9 ohms +-20%
Pickup : Green to Blue = 520 ohms +-20%
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

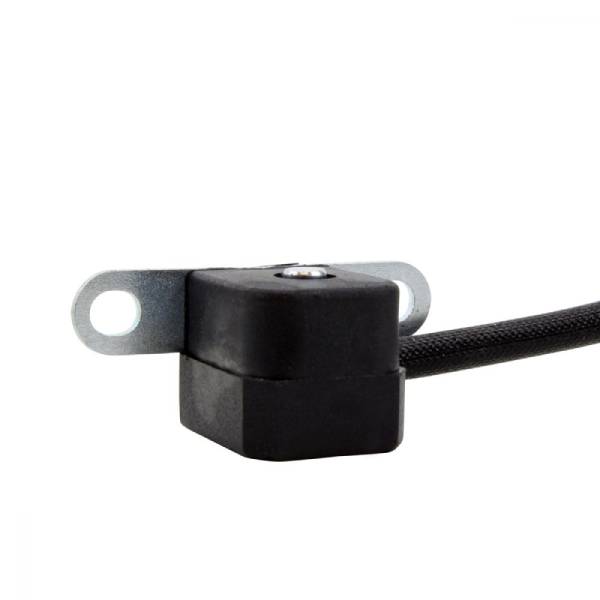

- Pick up pulsar coil included

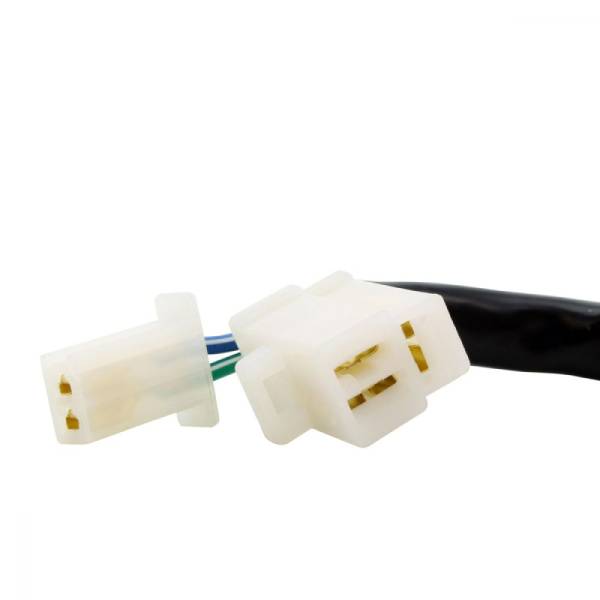

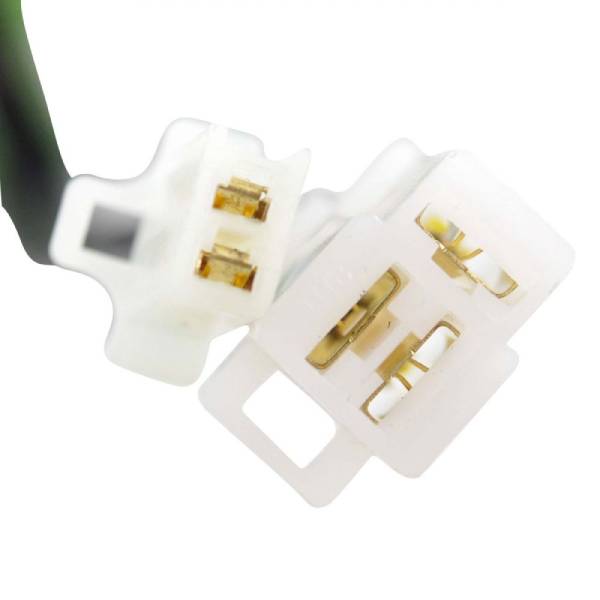

- Connector included
- Rubber grommet included
- All products shipped are tested

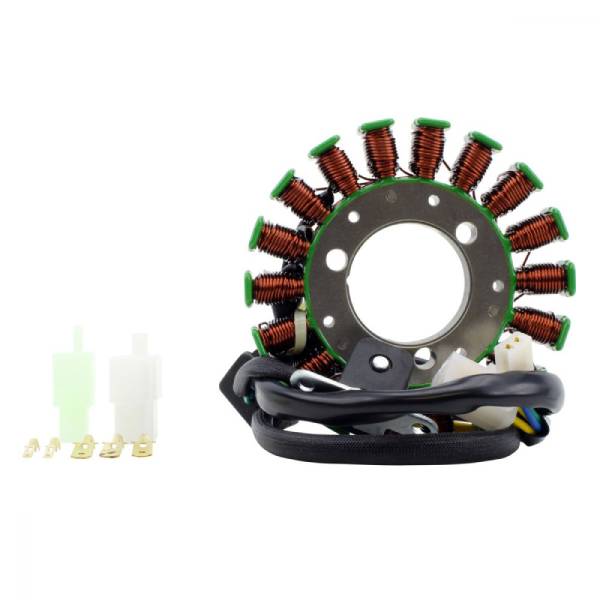

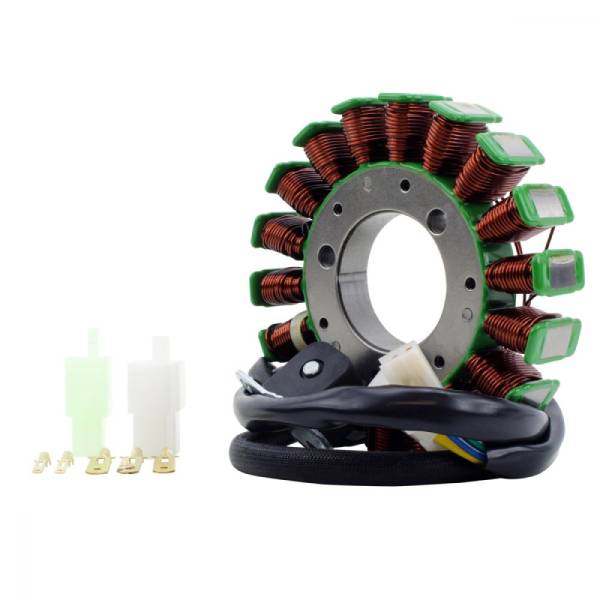

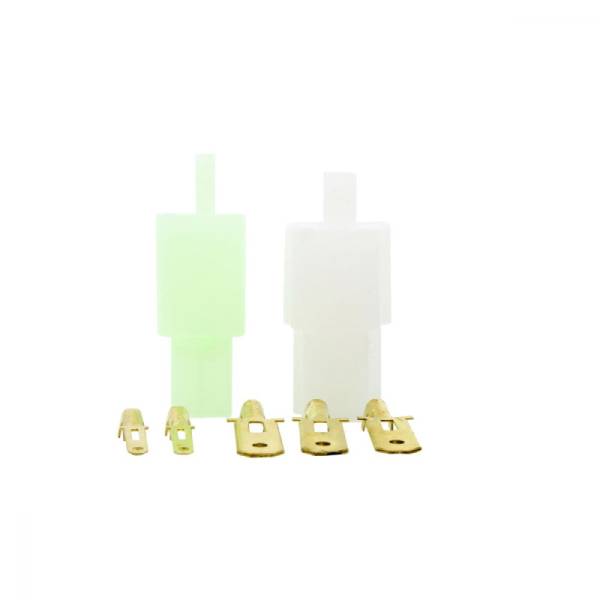

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
| Weight | 0.73 kg |
|---|---|
| Dimensions | 16.002 × 6.096 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 32101-13F00, 32101.13F00, 32101 13F00, 3210113F00
- 32101-13F01, 32101.13F01, 32101 13F01, 3210113F01
OTHER PART NUMBER
- RMS010-101506
