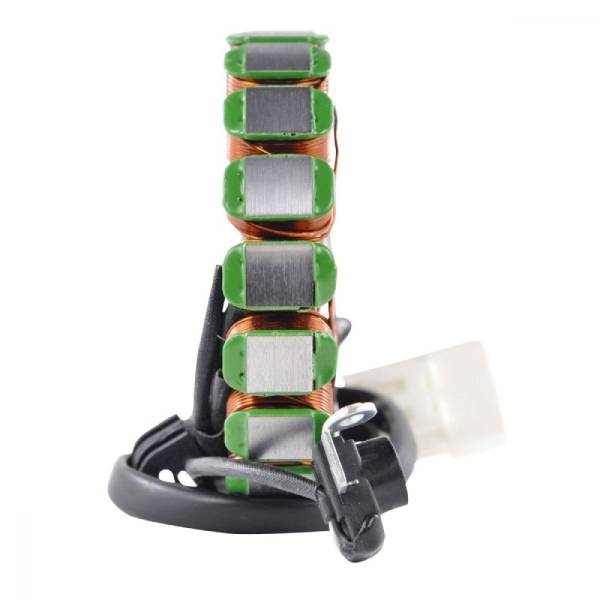

RMS010-101562 | Generator Stator for Yamaha Street Bike XVS V Star Tourer 1300 2007 2008 2009 |
C$295.89
Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 18 mm
Length of wires stator to first grommet : 155 mm
Length of wires between grommets : 4 mm
Length of wires second grommet to alternator plug : 320 mm
Length of wires second grommet to pick-up coil plug : 370 mm
Length of pickup coil’s wire to grommet : 80 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White To White = 0.4 ohms +/-20%
Pickup : Dark Grey To Light Grey = 287 ohms +/-20%
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

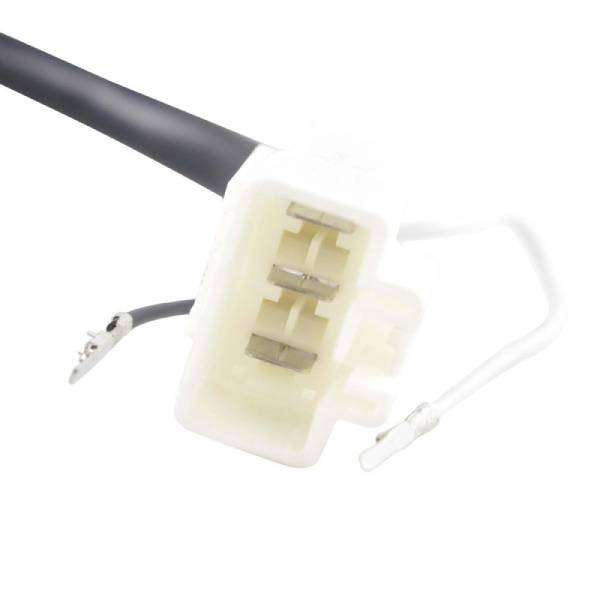

- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
| Weight | 1.30 kg |
|---|---|
| Dimensions | 16.002 × 7.112 × 16.00 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 3D8-81410-00-00, 3D8.81410.00.00, 3D8 81410 00 00, 3D8814100000
OTHER PART NUMBER
- RMS010-101562
