RMS010-102040 | Generator Stator for Honda VFR800 Interceptor VFR800FI / CBR 1100 XX Blackbird 1999-2003 |
C$206.89
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 26 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White Between each white = 0.4 ohms+/-20%
Alternator : White to Ground =ﾠO.L. ON DISPLAY
Available on backorder

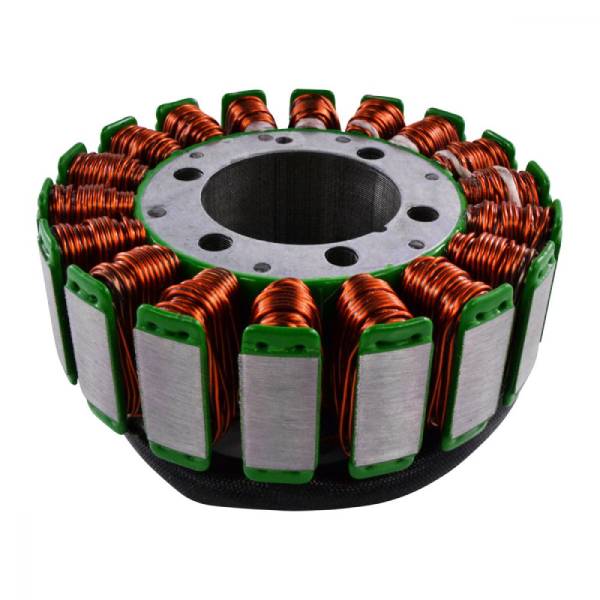

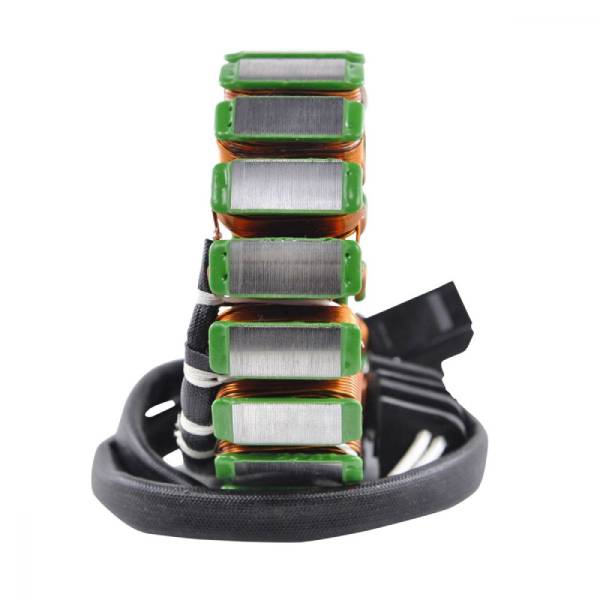

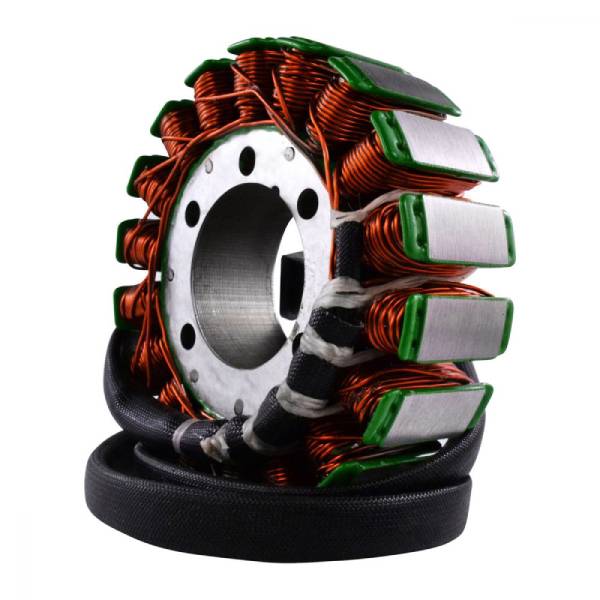

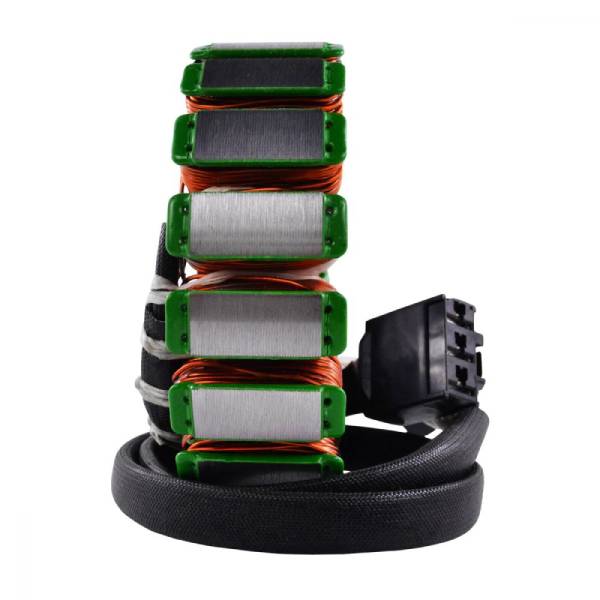

Brand new stator
- Plug-and-play unit, direct fit, and very easy to install.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

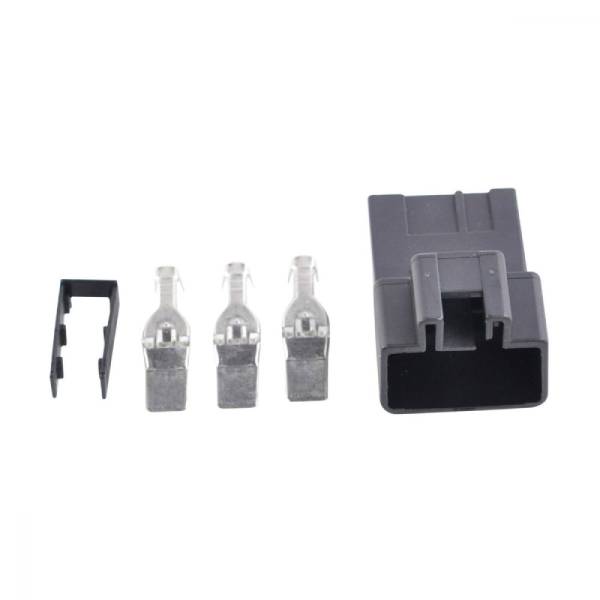

- Connector included
- Rubber grommet included
- All products shipped are tested

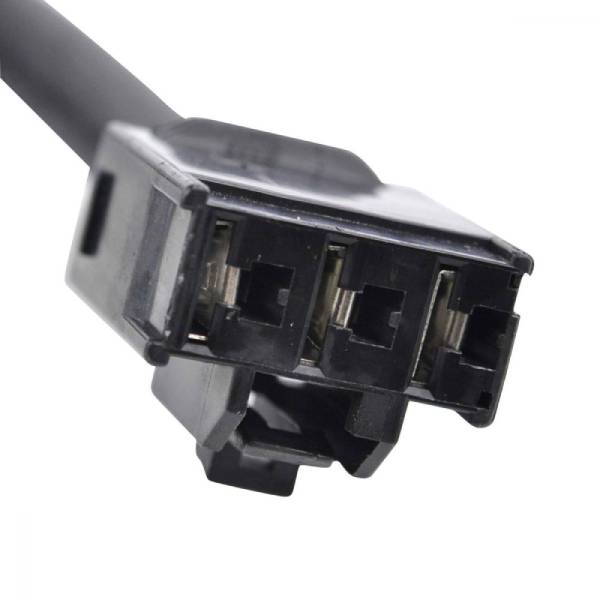

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
| Weight | 1.27 kg |
|---|---|
| Dimensions | 16.002 × 6.096 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 31120-MBG-D01,31120.MBG.D01, 31120 MBG D01, 31120MBGD01
- 31120-MAT-E01, 31120.MAT.E01, 31120 MAT E01, 31120MATE01
OTHER PART NUMBER
- RMS010-102040
