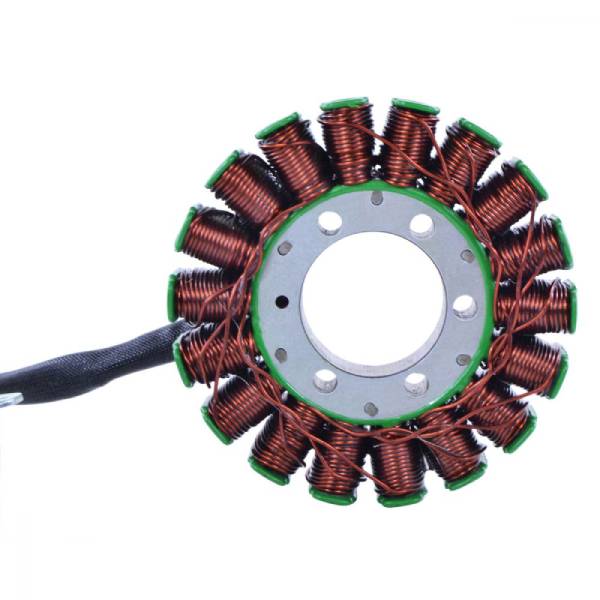

RMS010-102166 | Generator Stator for Suzuki SV 650 / V-Strom 650 2003-2009 | OEM Repl.# 32101-17G00 32101-17G02 |
C$265.89
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 108 mm
Thickness : 19 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 550 mm
Length of pickup coil’s wire to grommet : 59 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Black to Black = 0.5 ohms +-20%
Pickup : Green to White = 194 ohms +-20%
Available on backorder

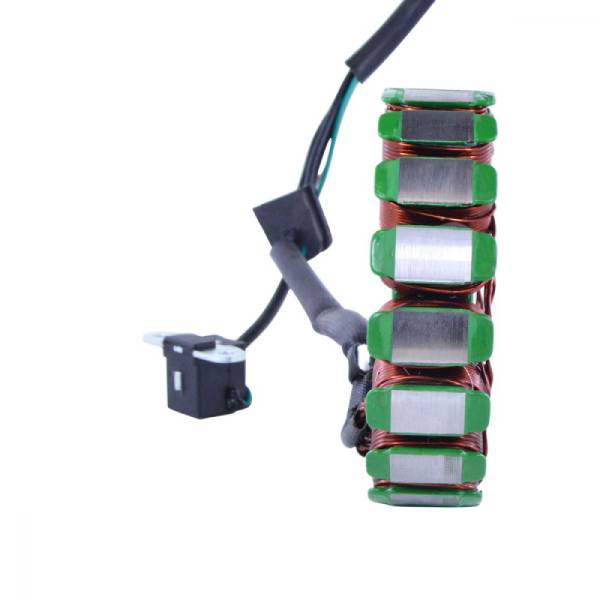

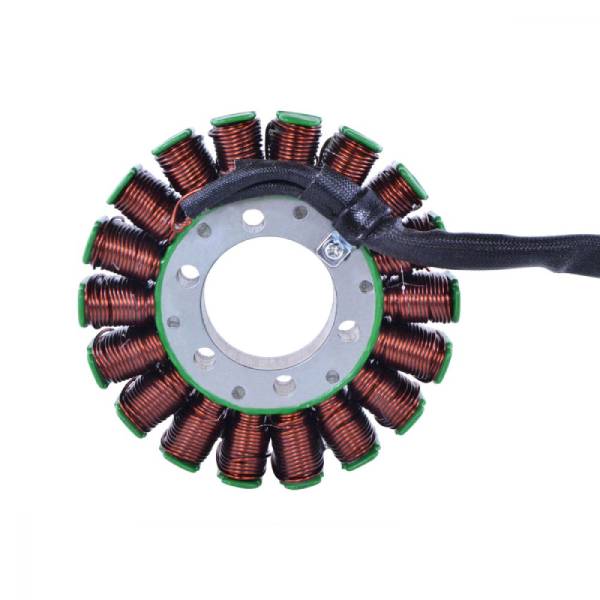

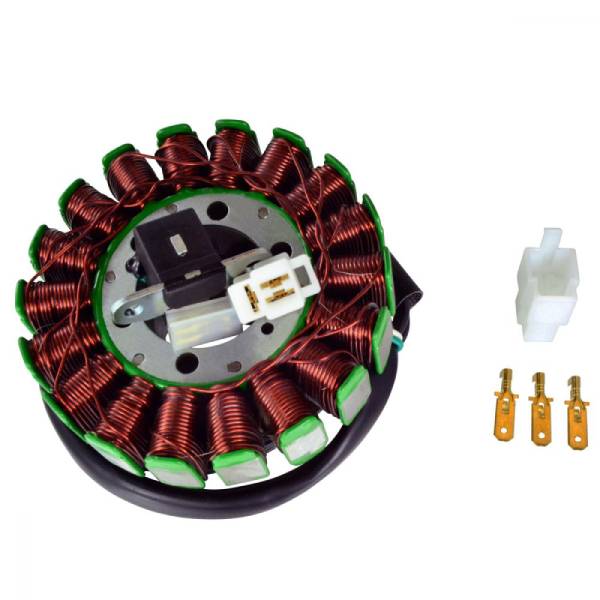

Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

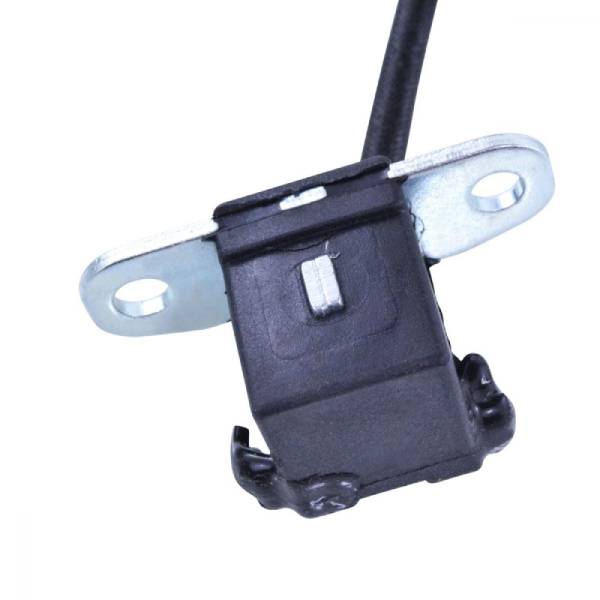

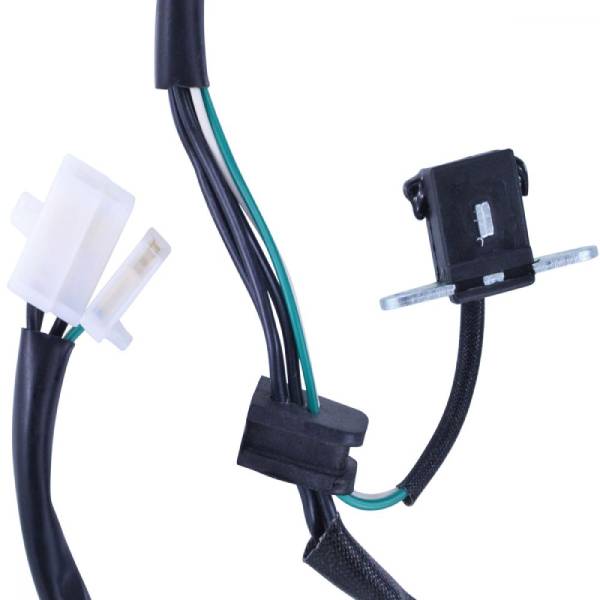

- Pick up pulsar coil included

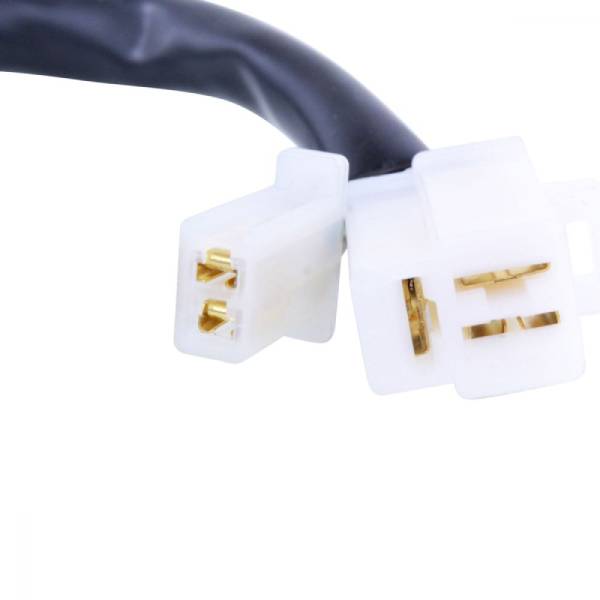

- Connector included

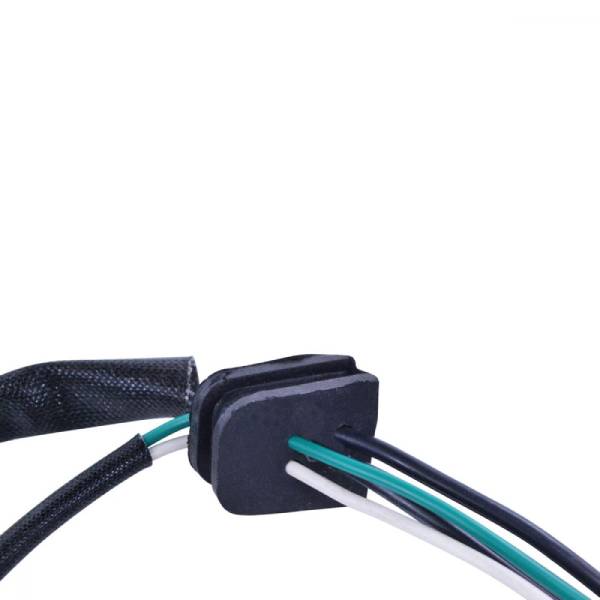

- Rubber grommet included
- All products shipped are tested

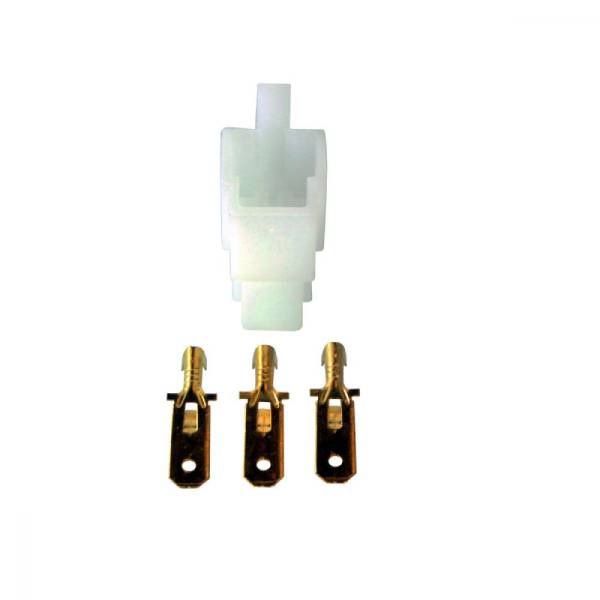

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010”.
| Weight | 1.08 kg |
|---|---|
| Dimensions | 16.002 × 6.096 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 32101-17G00, 32101.17G00, 32101 17G00, 3210117G00
- 32101-17G02, 32101.17G02, 32101 17G02, 3210117G02
OTHER PART NUMBER
- RMS010-102166
