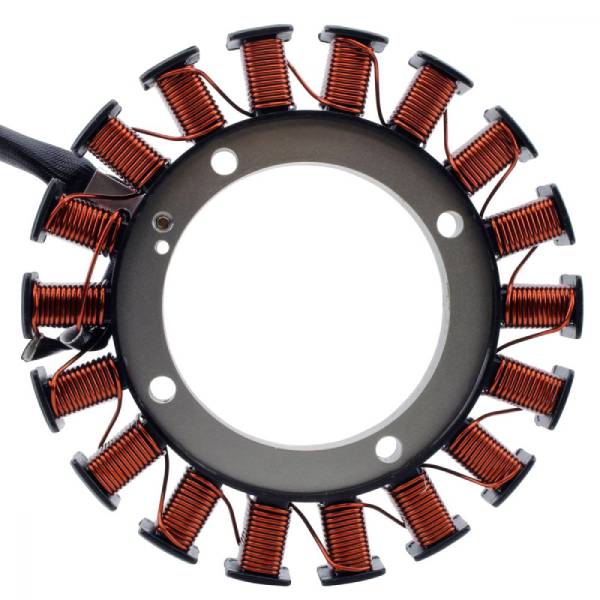

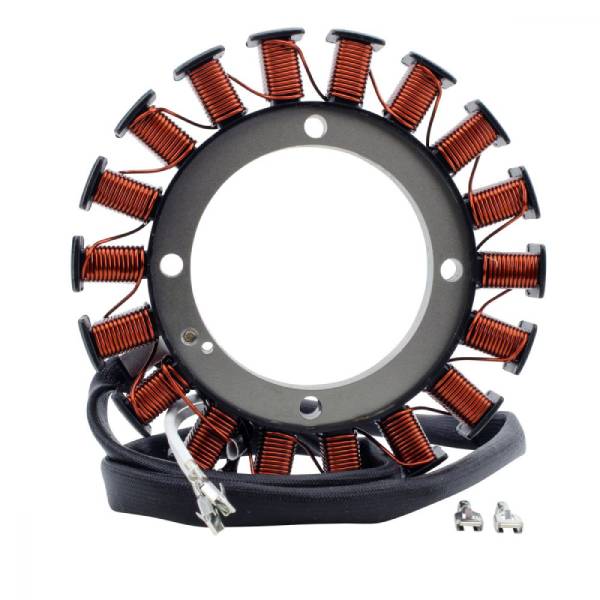

RMS010-102722 | Stator for Kohler 237878-S 15 – 20 AMP Lawn & Garden 237878S CH11-CH25 CV11-CV22 CV18-CV22 K181 K241 K301-K341 KT17 KT19 |
C$176.89
Dimensions :
Interior diameter : 70 mm
Exterior diameter : 138 mm
Thickness : 10 mm
Length of wires stator to terminals : 650 mm
Other specifications :
Number of wires : 2
Number of pins : 2
Wire to wire resistance :
Alternator : White to White = 0.4 ohms +-20%
Available on backorder
Brand new aftermarket stator
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before working on the engine or equipment, disable the engine as follow :
- Disconnect the spark plug lead(s)
- Disconnect negative (-) battery cable from battery
Before installing your new stator
- Disconnect the stator wires from connector (if used), and remove the mounting screws and old stator assembly. Save the screws.
- Measure the leads of the old stator. Cut the leads and protective sleeve of new stator to the same length.
- Strip approximately 3/16″ of the wire insulation, then crimp and solder the terminals to the stator wires. Make sure each connection is positively secured.
- Apply pipe sealant with Teflon (Loctite No. 59241 or equivalent) to the stator mounting holes.
- Install the new stator and secure with the original mounting screws. Torque the screws to 6.2 N m (55 in. lb.) Attach stator wires to original connector (if used).
| Weight | 0.63 kg |
|---|---|
| Dimensions | 16.002 × 7.112 × 16.00 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 23-4859, 23.4859, 23 4859, 234859
- 23-7329, 23.7329, 23 7329, 237329
- 23-7330, 23.7330, 23 7330, 237330
- 23-7331, 23.7331, 23 7331, 237331
- 23-7399, 23.7399, 23 7399, 237399
- 23-7716, 23.7716, 23 7716, 237716
- 4108-507, 4108.507, 4108 507, 4108507
- 4708-501, 4708.501, 4708 501, 4708501
- 4708-511, 4708.511, 4708 511, 4708511
- 5475509-S, 5475509.S, 5475509 S, 5475509S
- A-237329, A.237329, A 237329, A237329
- 055-489, 055.489, 055 489, 055489
- 237878-S, 237878.S, 237878 S, 237878S
OTHER PART NUMBER
- RMS010-102722
