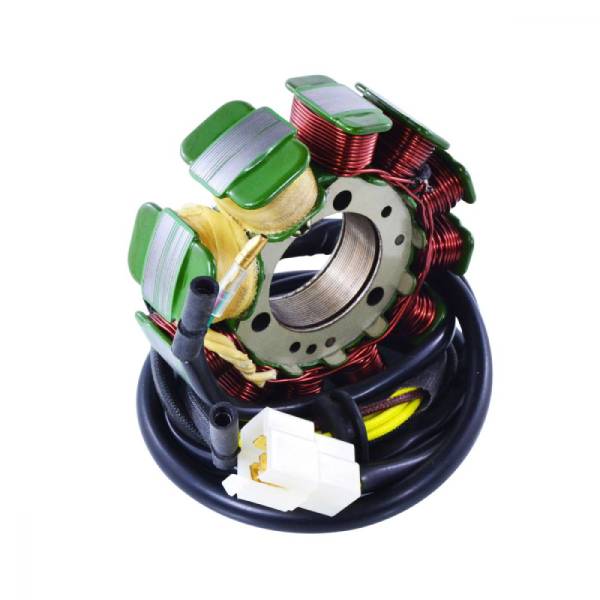

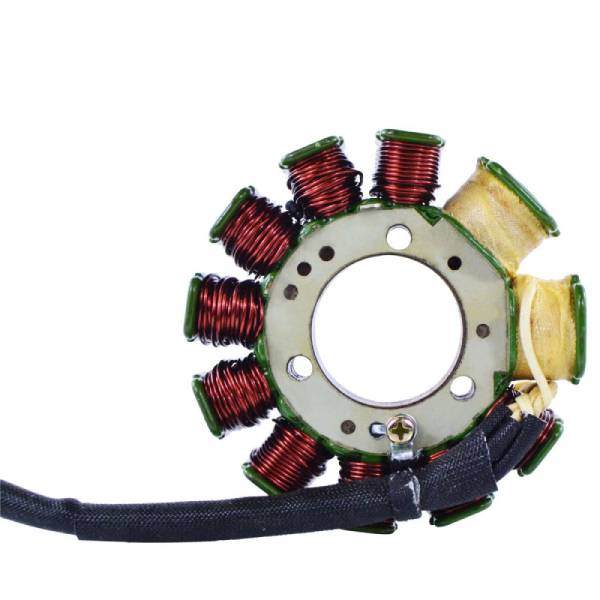

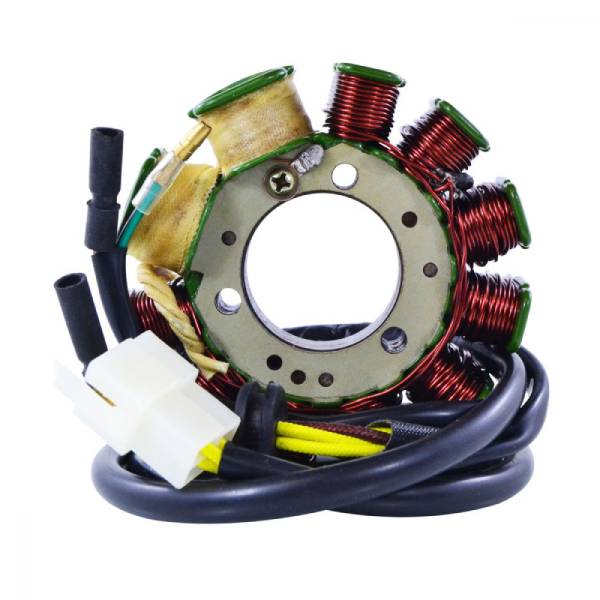

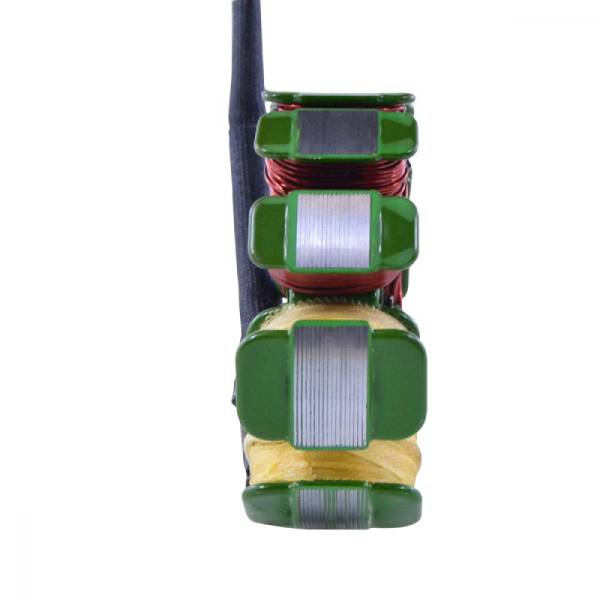

RMS010-103816 | Stator for Honda CB 250 Nighthawk 1991-2008 | OEM Repl.# 31120-KBG-004 |
C$236.89
Dimensions :
Interior diameter : 35 mm
Exterior diameter : 93 mm
Thickness : 18 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 760 mm
Other specifications :
Number of wires : 6
Number of plugs : 4
Number of pins : 6
Wire to wire resistance :
Alternator : Between Each Yellow = 0.4 ohms +-20%
Source : Black/Red to Ground = 200 ohms +-20%
Available on backorder
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

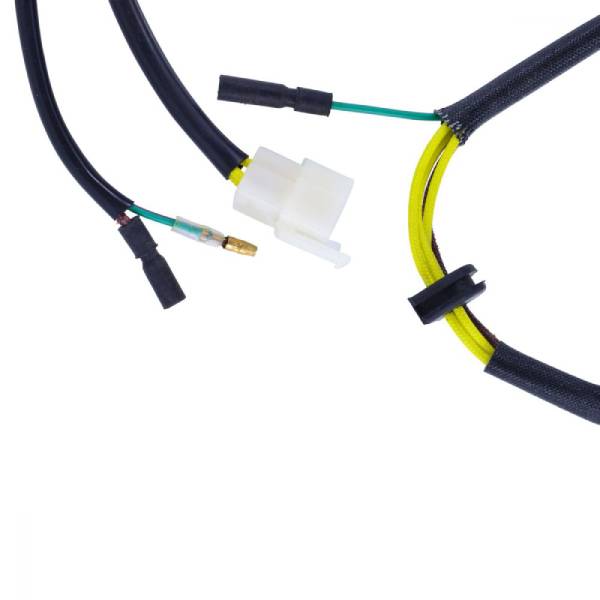

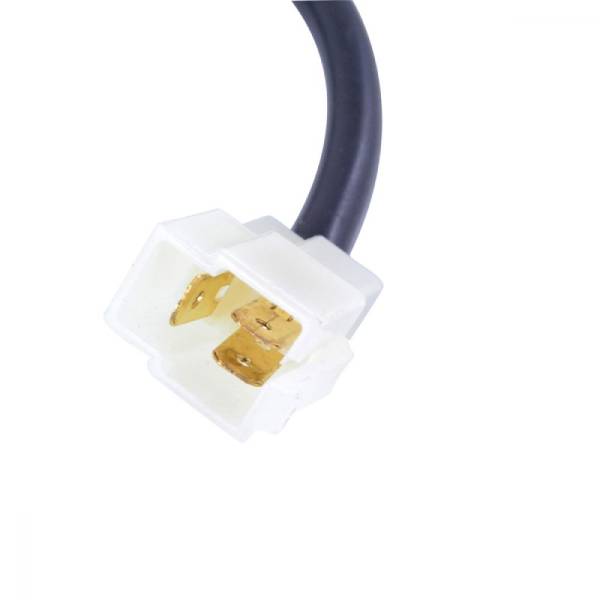

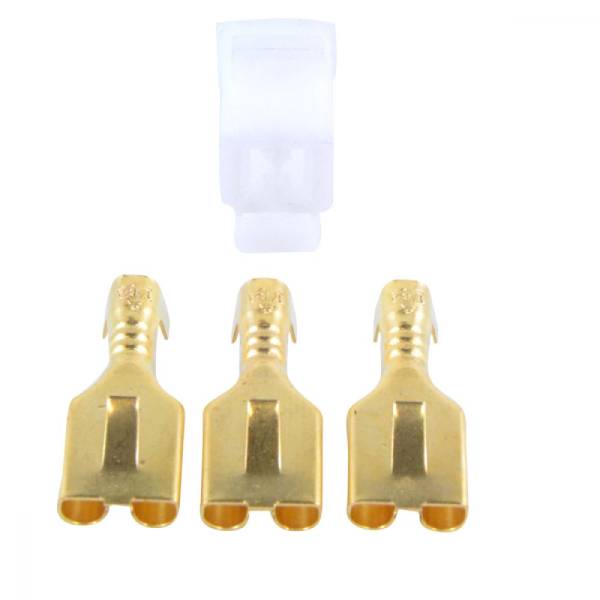

- Connector included

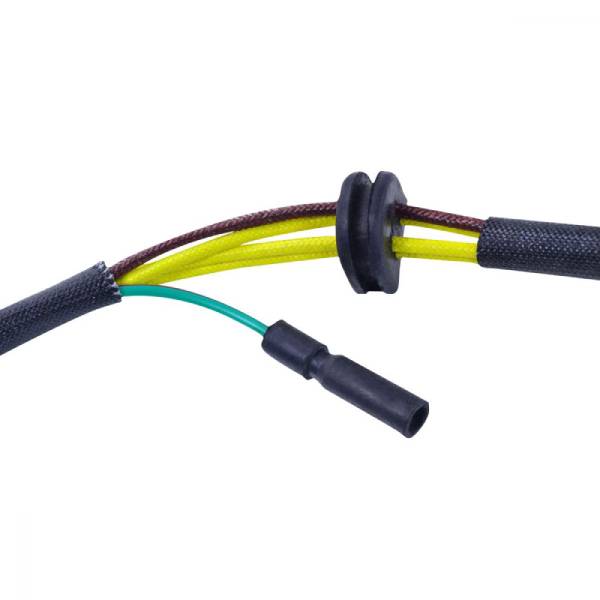

- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
| Weight | 0.82 kg |
|---|---|
| Dimensions | 16.00 × 6.09 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 31120-KBG-004, 31120.KBG.004, 31120 KBG 004, 31120KBG004
OTHER PART NUMBER
- RMS010-103816
