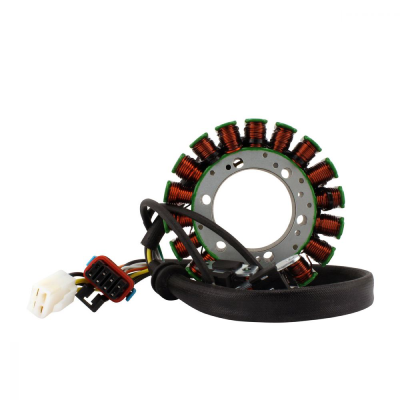

RMS010-104843 | Stator for Arctic Cat & Textron Wildcat Trail / Sport 700 Bearcat 3000 LT Pantera 3000 Norseman 3000 ZR 3000 2014-2020 |
C$265.89
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 20 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil’s wire to grommet : 40 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Black between each Black = 0.4 ohms +-20%
Pickup : Brown to White = 100 ohms +-20%
Alternator to ground = O.L
Available on backorder
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulatorrectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
| Weight | 1.31 kg |
|---|---|
| Dimensions | 16.002 × 7.112 × 16.00 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM NUMBER
- 3307-028, 3307.028, 3307 028, 3307028
ADDITIONAL NUMBER
- RMS010-104843
