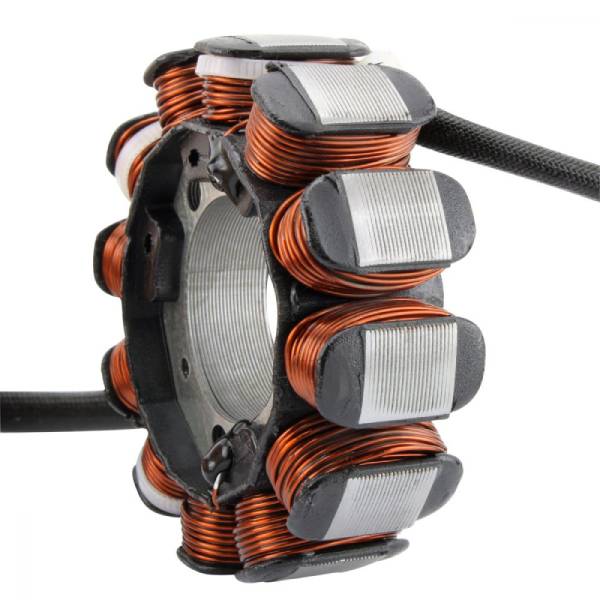

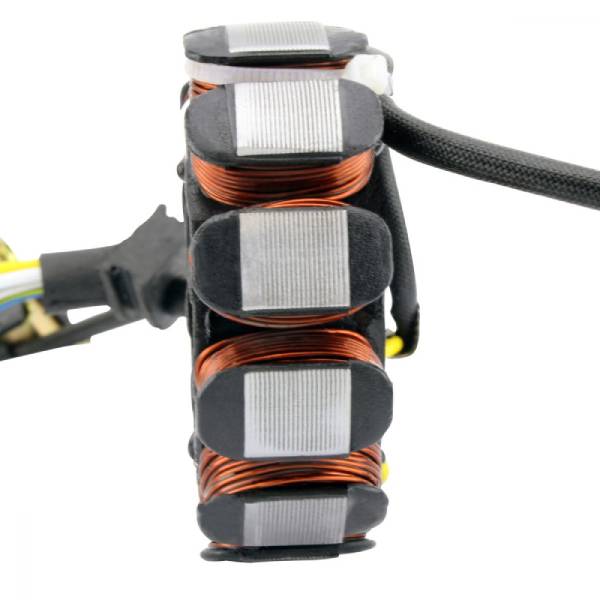

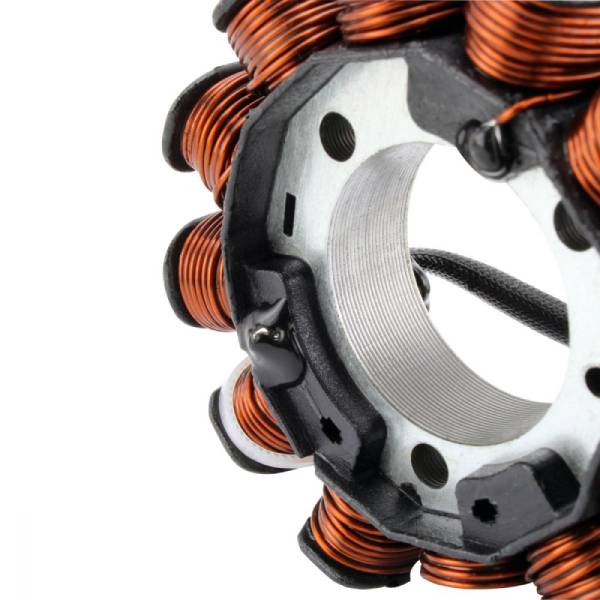

RMS010-106839 | Generator Stator for Honda CRF 450 R 2015 2016 | OEM Repl.# 31120-MEN-A91 |
C$206.89
Dimensions :
Interior diameter : 32 mm
Exterior diameter : 77 mm
Thickness : 12.7 mm
Length of wires stator to grommet : 70 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil’s wire to grommet : 55 mm
Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6
Number of poles : 12
Wire to wire resistance :
Alternator : White to Yellow = 2.1 ohms +-20%
Pickup #1 : Blue/Yellow to Green/White = 242 ohms +-20%
Pickup #2 : Green to White = 242 ohms +-20%
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Tow Pick up pulsar coil included

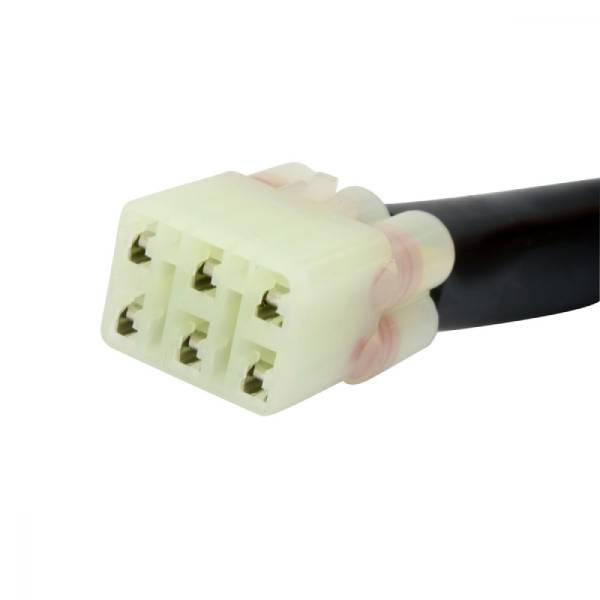

- Connectors included

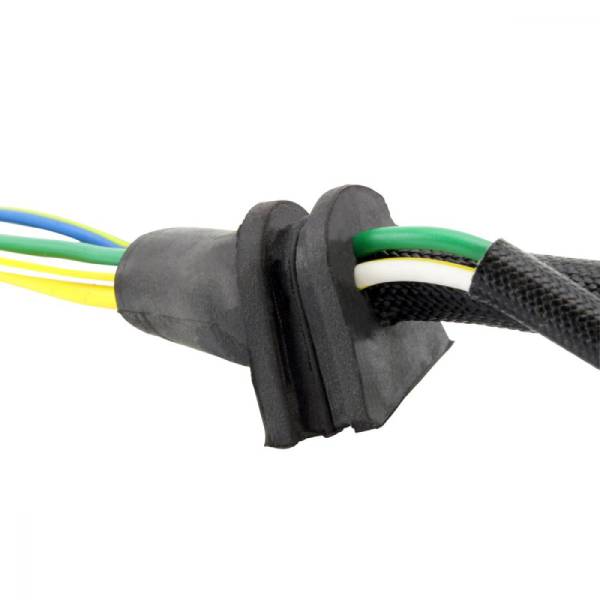

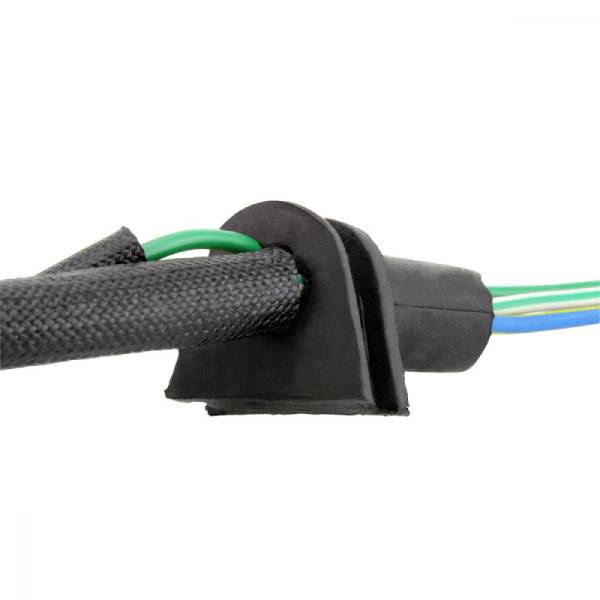

- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Before installing your new Stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
| Weight | 0.52 kg |
|---|---|
| Dimensions | 16.002 × 6.096 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 31120-MEN-A91, 31120.MEN.A91, 31120 MEN A91, 31120MENA91
OTHER PART NUMBER
- RMS010-106839
