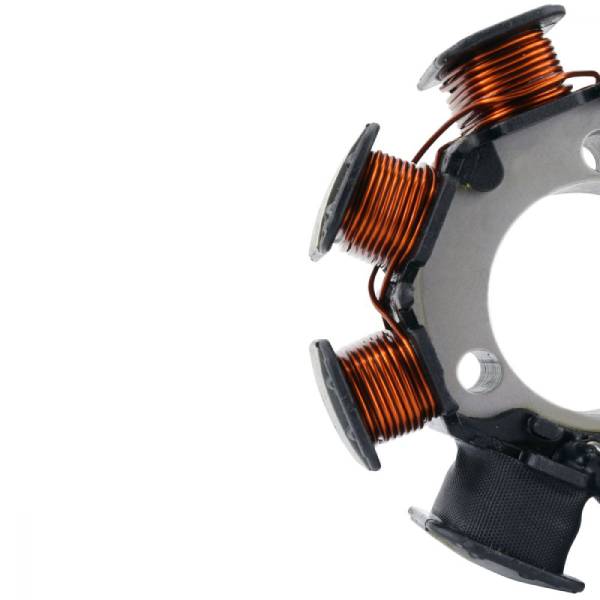

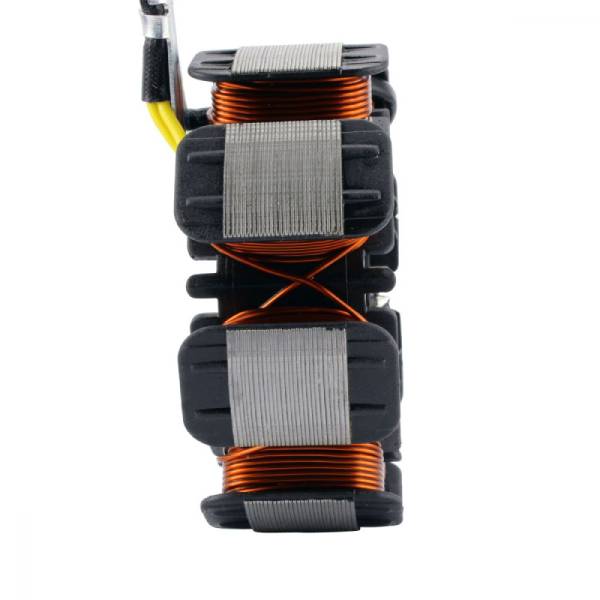

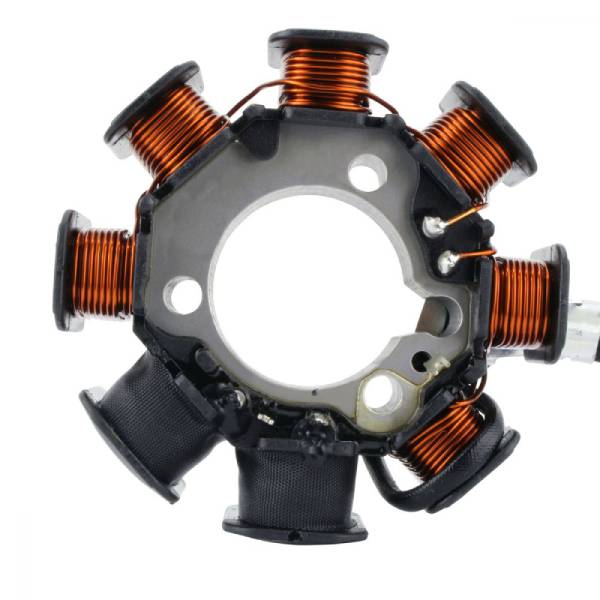

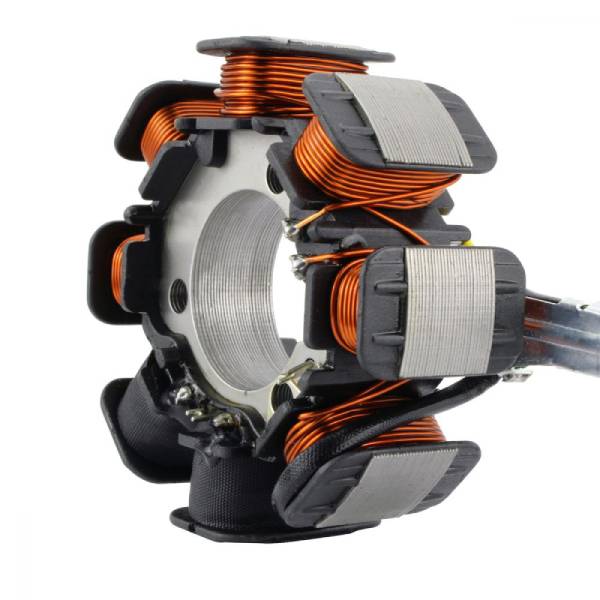

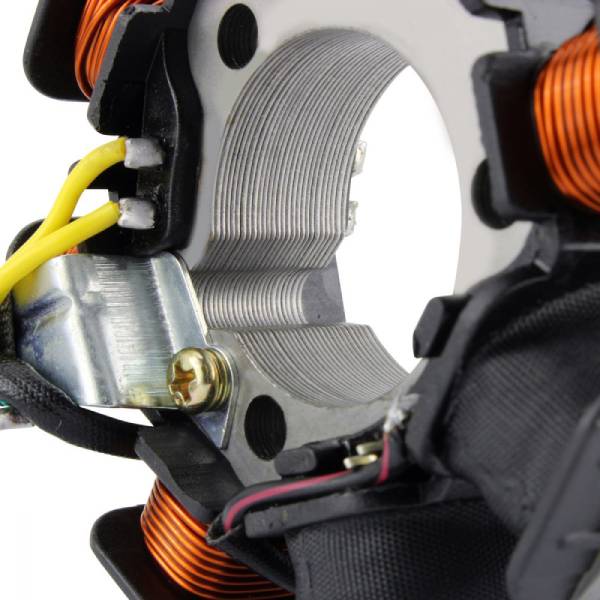

RMS010-107110 | Stator for Honda TRX 250 EX Sportrax 2006-2008 | TRX 250 X 2009 2011-2014 2016-2022 | TRX 250 X European 2010 |
C$250.89
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 88 mm
Thickness: 18 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 140 mm
Length of pickup coil’s wire to grommet #1: 330 mm
Length of pickup coil’s wire to grommet #2: 370 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 8
Wire to wire resistance:
Alternator: Between each Yellow = 0.7 ohms +-20%
Pickup: Blue/Yellow to Ground = 336 ohms +-20%
Source: Black/Red to Ground = 185 ohms +-20%
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

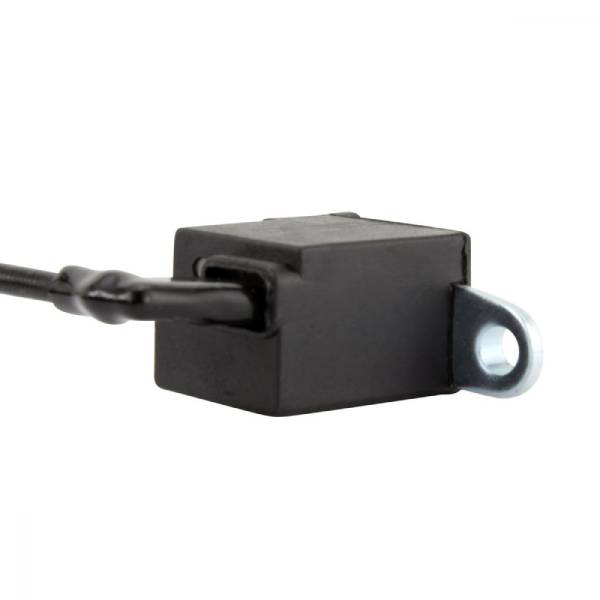

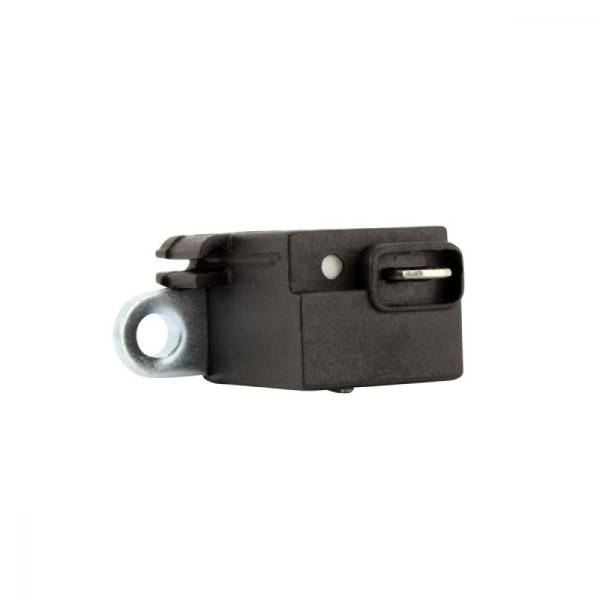

- Pick up pulsar coil included

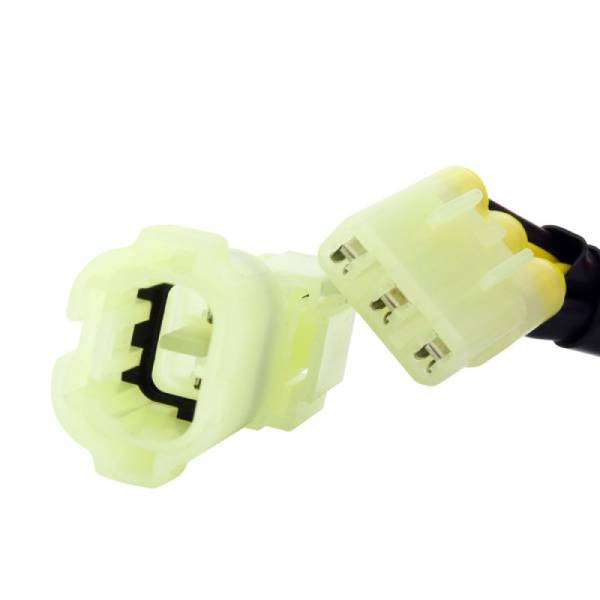

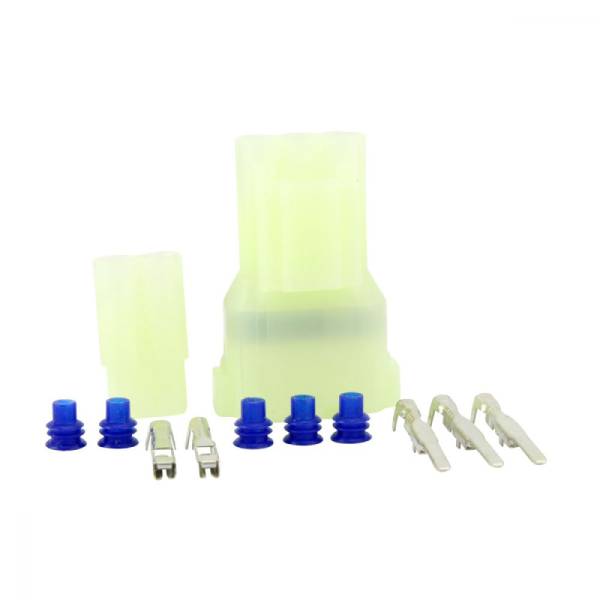

- Connectors included

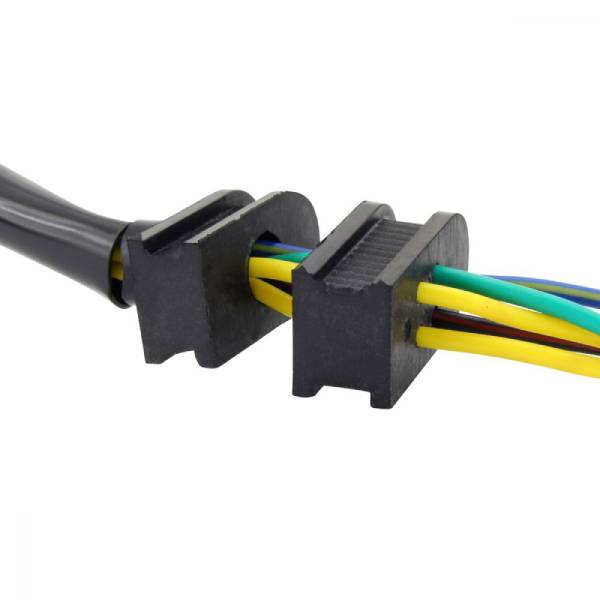

- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
| Weight | 0.66 kg |
|---|---|
| Dimensions | 14.986 × 9.398 × 13.21 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 31120-HN6-A31, 31120.HN6.A31, 31120 HN6 A31, 31120HN6A31
- 31120-HN6-A30, 31120.HN6.A30, 31120 HN6 A30, 31120HN6A30
OTHER PART NUMBER
- RMS010-107110
