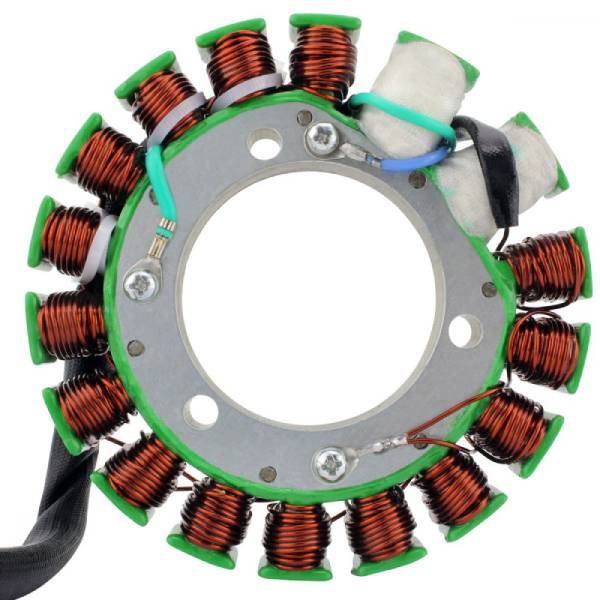

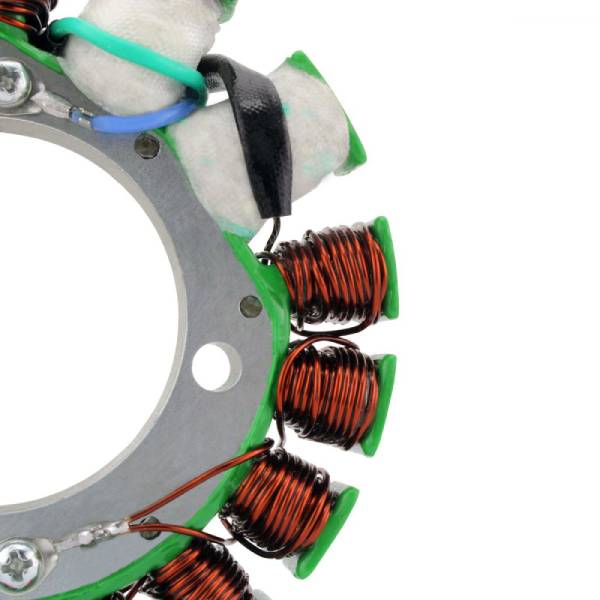

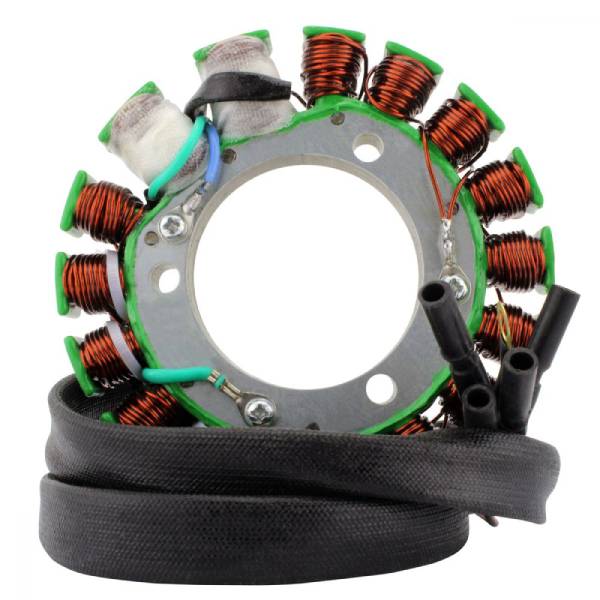

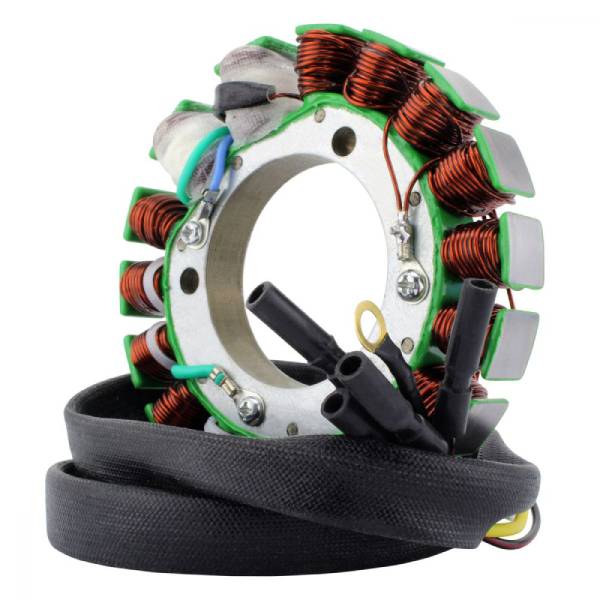

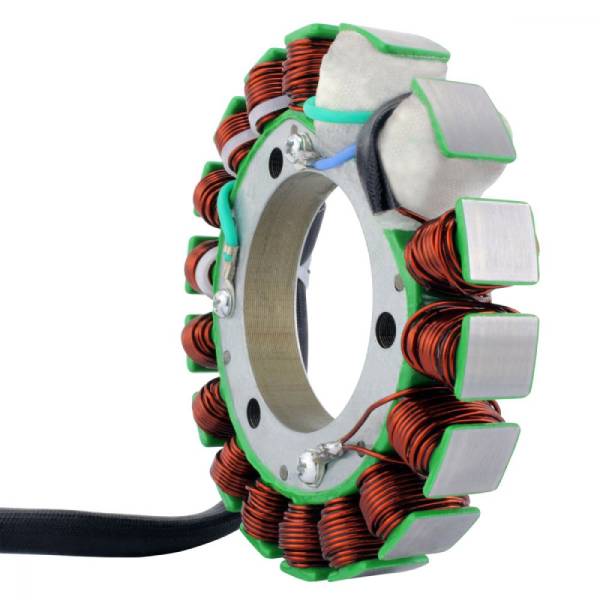

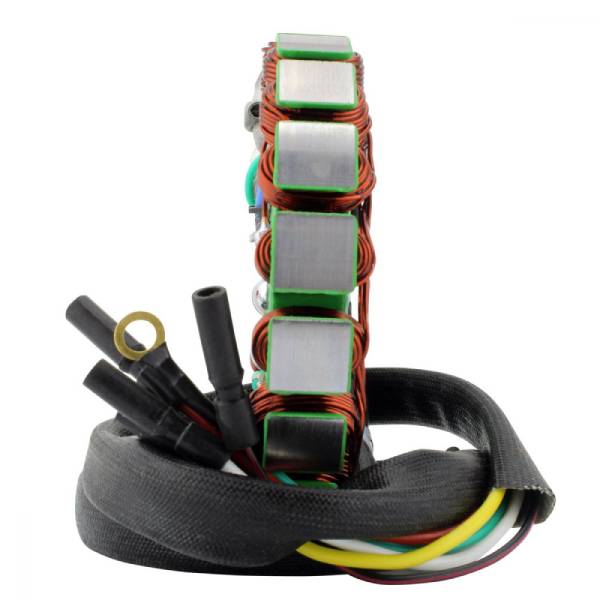

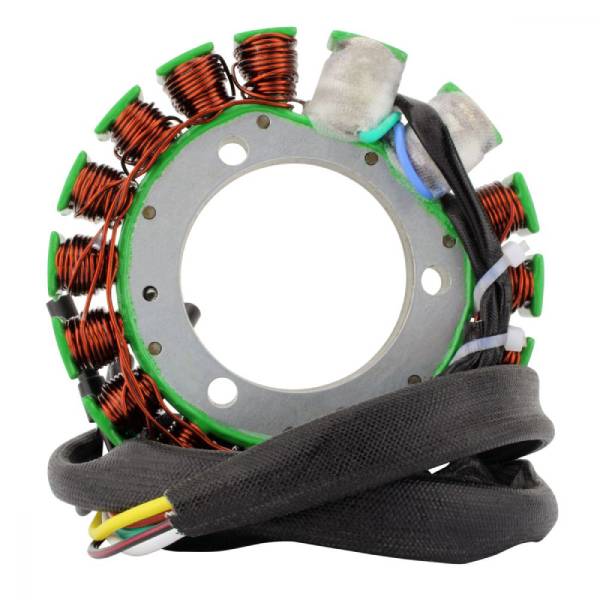

RMS010-107205 | High Output 200W stator for Honda XR 600 R 1985-2000 OEM Repl. # 31120-MN1-681 / 31120-MN1-671 / 31120-MK2-005 |
C$206.89
Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 15 mm
Length of wires stator to grommet: 200 mm
Length of wires grommet to plug: 700 mm
Other specifications:
Number of wires: 5
Number of plugs: 5
Number of pins: 3
Number of poles: 17
Wire to wire resistance:
Alternator: White to Green = 0.4 ohms +-20%
Alternator: Yellow to Red = 0.4 ohms +-20%
Source: Black/Red to Green = 140 ohms +-20%
Brand new aftermarket High output Stator 200W
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- 2 x 100W

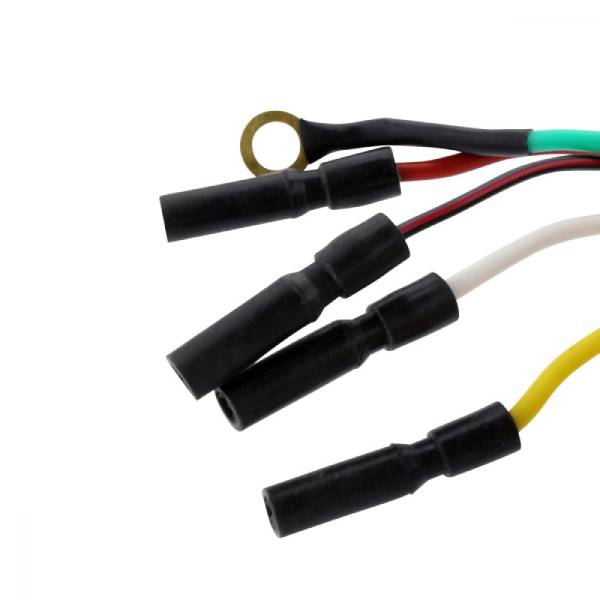

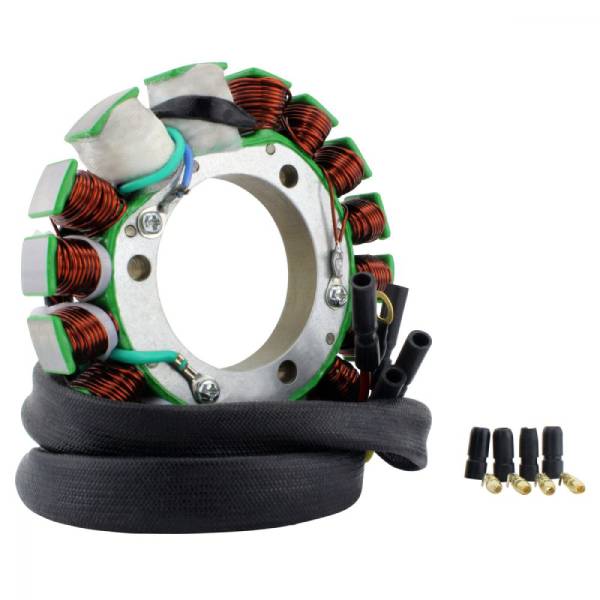

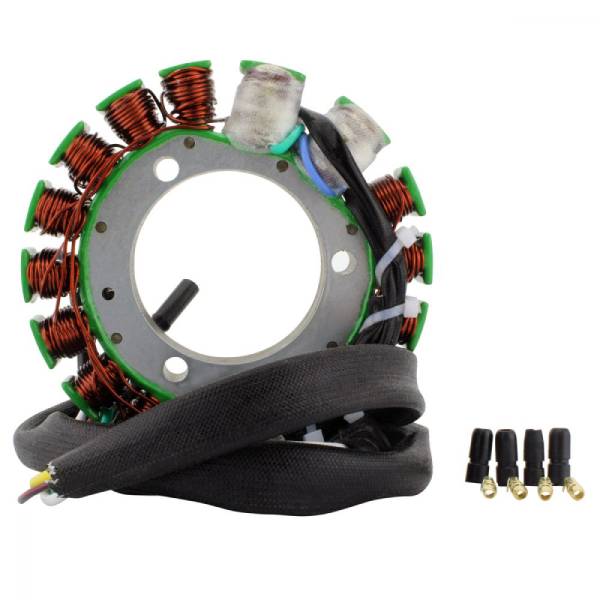

- Connectors included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Before installing your new Stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your original part.
| Weight | 0.82 kg |
|---|---|
| Dimensions | 6.096 × 16.002 × 12.95 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 31120-MN1-671, 31120.MN1.671, 31120 MN1 671, 31120MN1671
- 31120-MN1-681, 31120.MN1.681, 31120 MN1 681, 31120MN1681
- 31120-MK2-005, 31120.MK2.005, 31120 MK2 005, 31120MK2005
OTHER PART NUMBER
- RMS010-107205
