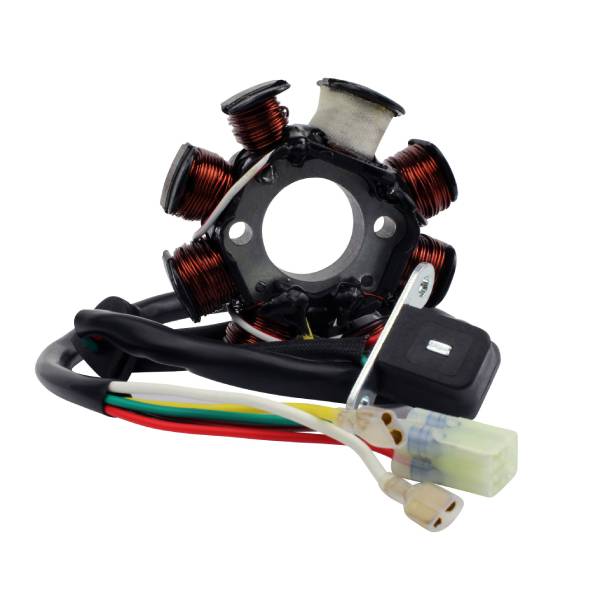

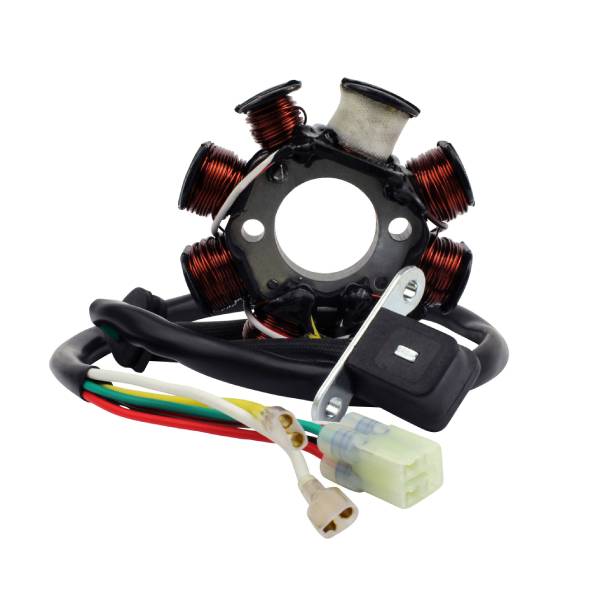

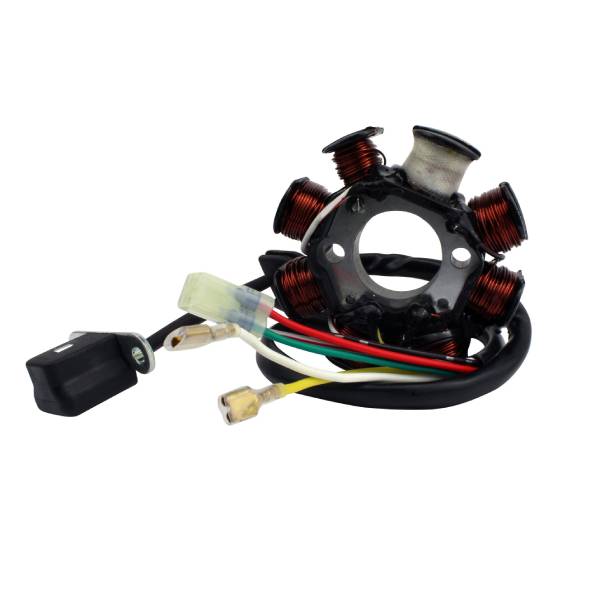

RMS010-108513 | Stator Coil for KTM 125 / 200 / 250 / 300 EXC Euro | 200 XC-W | 300 XC | Husqvarna TE 125 Euro 2005-2016 | 54839204000 |
C$192.89
Specification
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 13 mm
Length of wires stator to grommet: 70 mm
Length of wires grommet to plug: 420 mm
Length of pickup coil’s wire to grommet: 45 mm
Other specifications:
Number of wires: 6

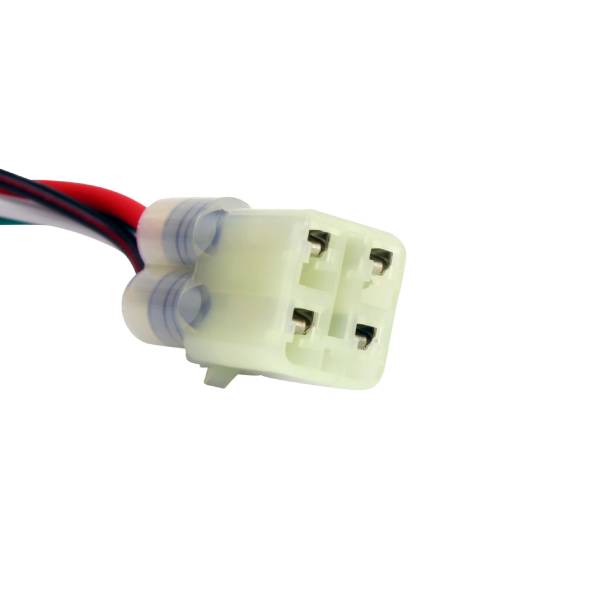

Number of plugs: 2
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.4 ohms +-20%
Pickup: Red to Green = 101.7 ohms +-20%
Source: Black/Red to Red/White = 15.1 ohms +-20%
Available on backorder
Brand new aftermarket stator
- Direct replacement to your original unit

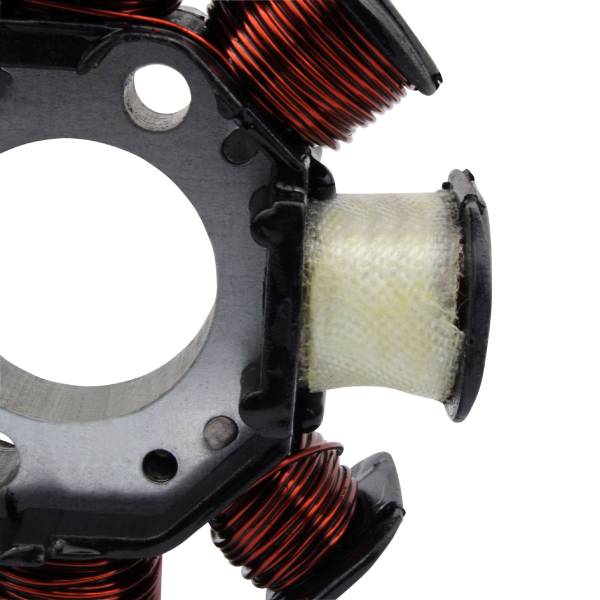

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included

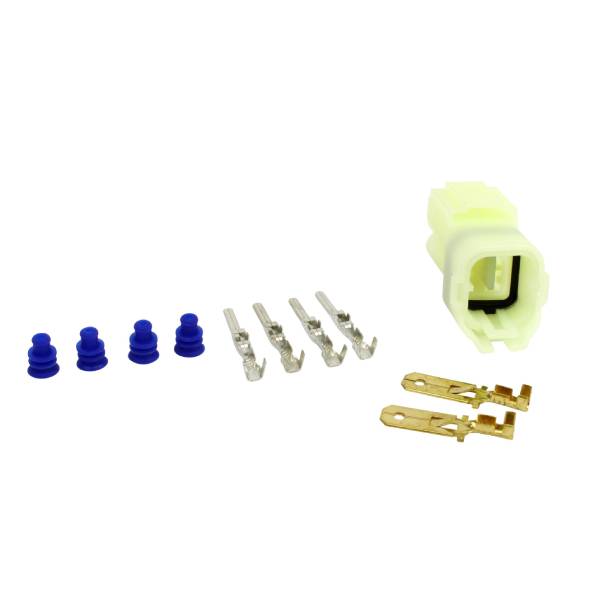

- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Installation
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010″.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
| Brand |
RMSTATOR |
|---|---|
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 5483-9204-000, 5483.9204.000, 5483 9204 000, 54839204000
OTHER PART NUMBER
- RMS010-108513
