RMS022-108468 | SERIES Machined Alum Regulator + Bypass Harness for Arctic Cat 400 | Triumph Bonneville 900 1996-22 | 3430-037 T1300819 |
C$252.89
SPECIFICATIONS:

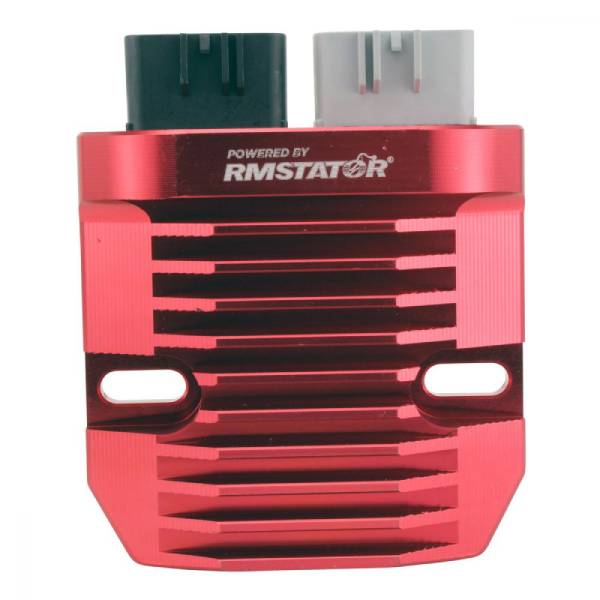

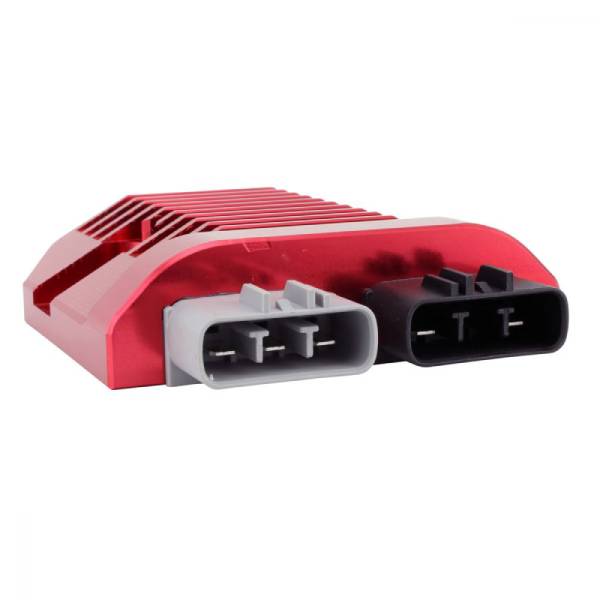

Red Machined Aluminum Mosfet Regulator :
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

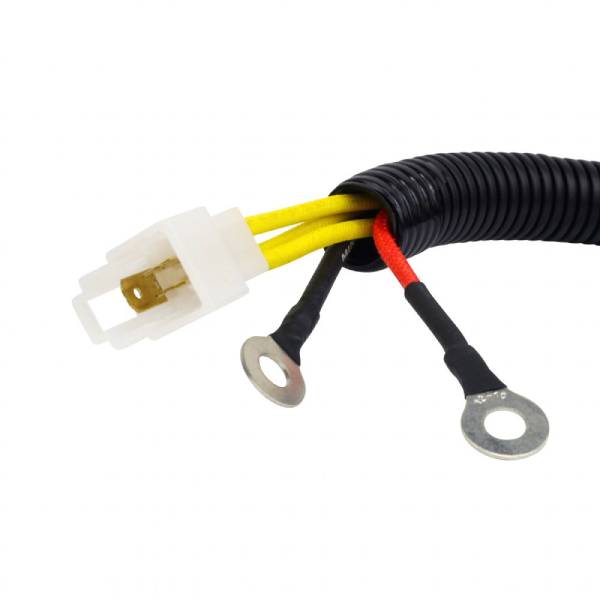

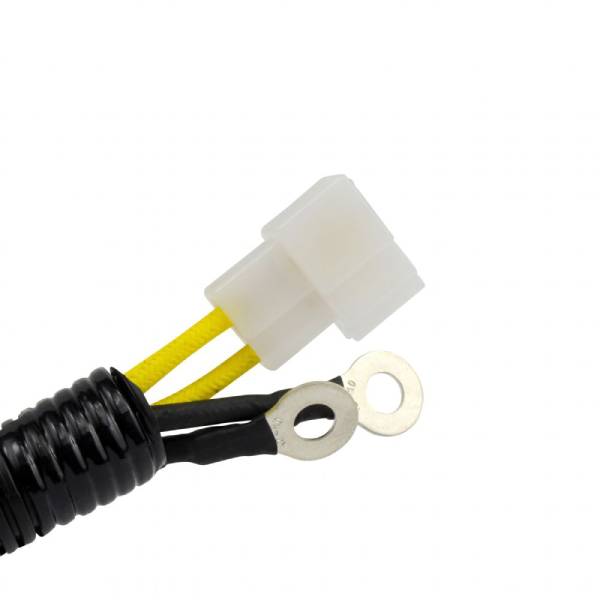

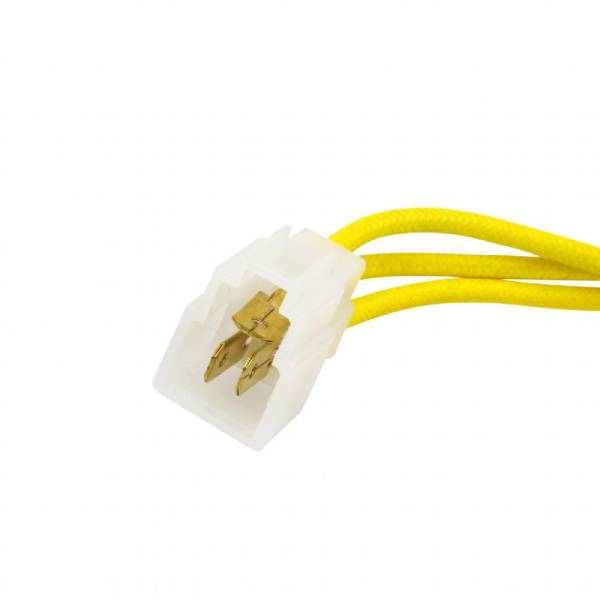

Voltage Regulator bypass Harness
Wires length : 1180 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 3

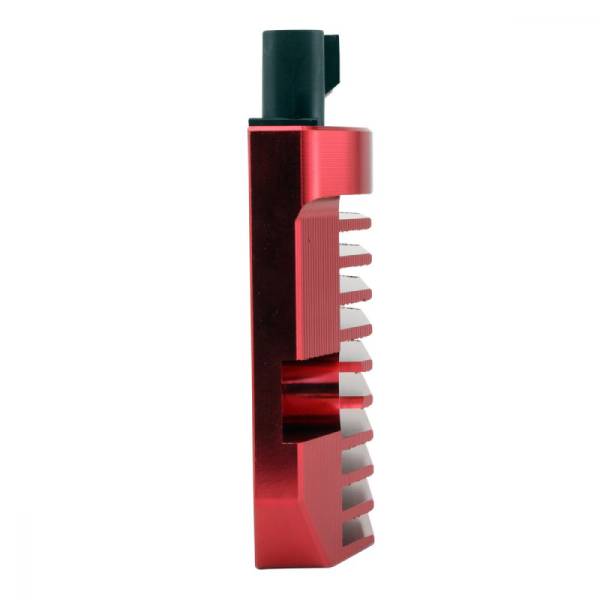

SERIES Machined Aluminium Voltage Regulator
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.
Moreover, the regulator has our new machined billet aluminum casing which dissipate heat 33% better than standard molded casing.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

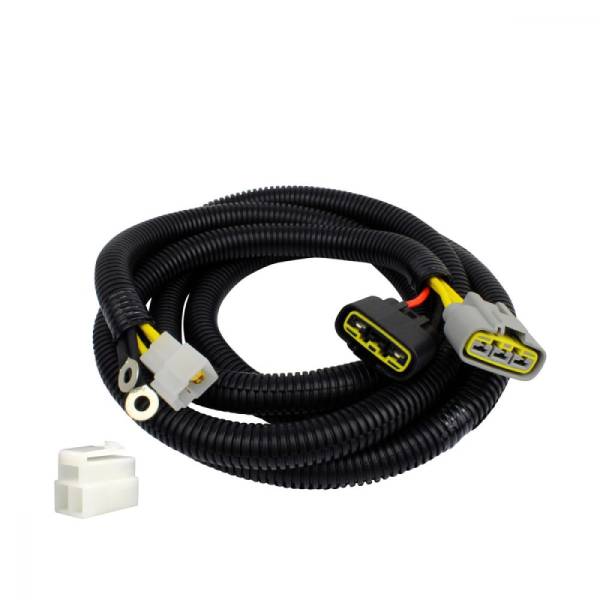

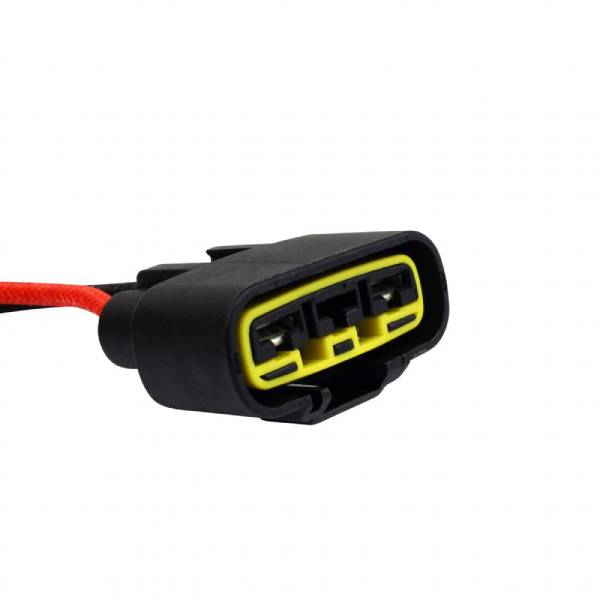

Improved Heavy Duty Bypass Harness
Automotive grade wiring harness with OEM-quality heavy-duty connectors
Made with the same connectors as OEM parts, our wiring harnesses are manufactured in a factory with controlled quality processes. They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.

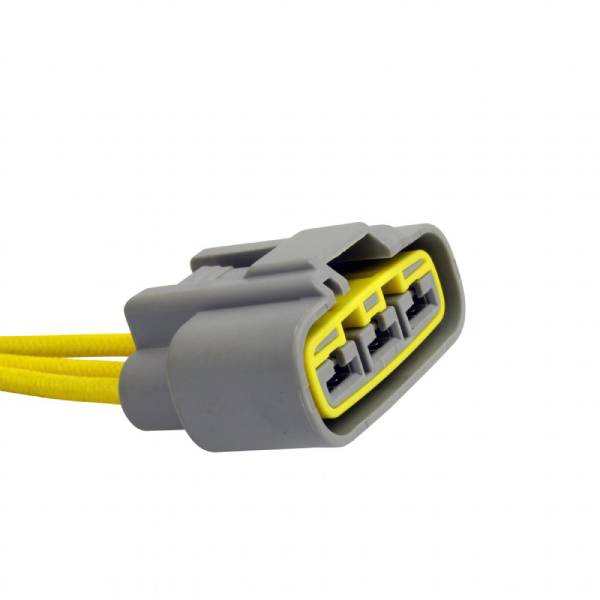

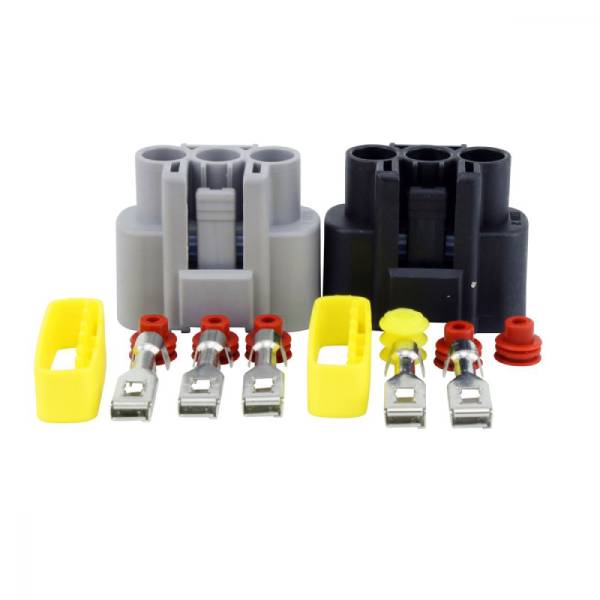

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
| Weight | 0.63 kg |
|---|---|
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 3430-016
- 3430-037
- T1300819
- 3430-072
- T1300888
- T1300889
- T1300890
OTHER PART NUMBER
- RMS022-108468
