Brand New aftermarket High Output Stator + Voltage Regulator Rectifier + PeakRPM CDI Box + External Ignition Coil Kit
- Direct replacement to your original unit
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new aftermarket Stator
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Brand new aftermarket Voltage Regulator Rectifier
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
Brand new PeakRPM CDI Box
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
Our CDI may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.

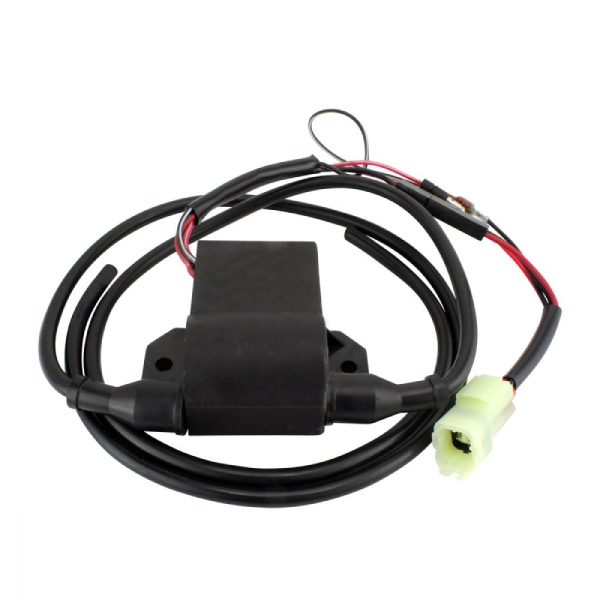

Brand New External Ignition Coil
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Spark plug cap(s) included
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
Before installing your new regulator/rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
High Output CDI Box
Our CDI may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.
External Ignition Coil
Remove the yellow wire from the external ignition coil, if it is not applicable to your model.
