RMS900-106637 | Kit Stator + Machined Aluminum Voltage Regulator Rectifier for BMW S 1000 RR 2009-2017 | S 1000 R 2013-2017 |
C$472.78

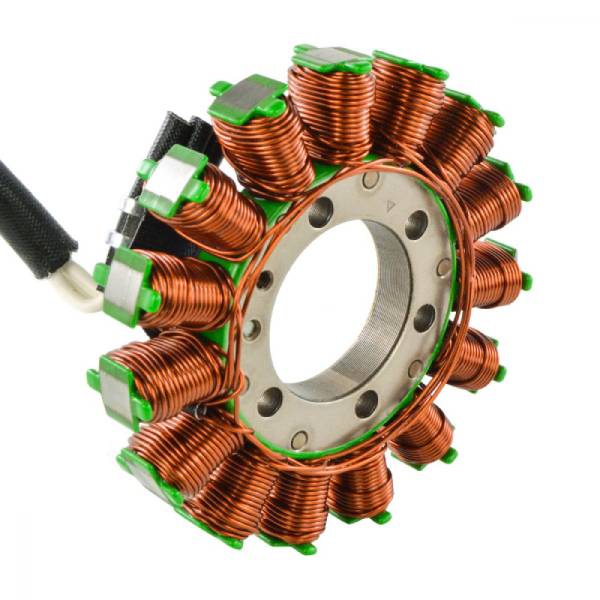

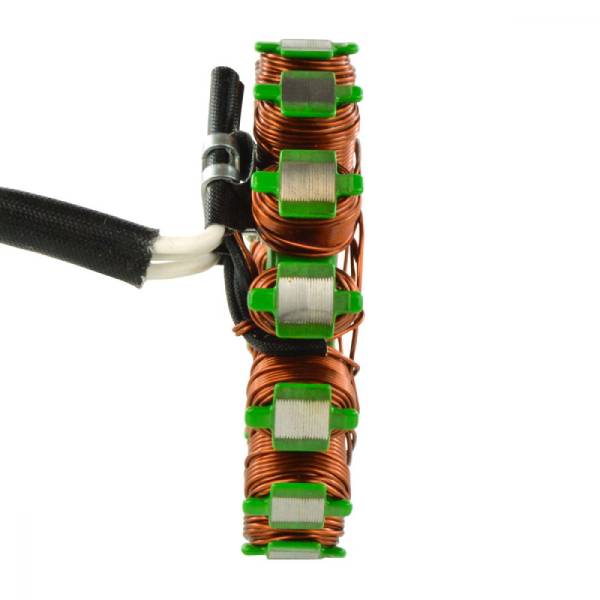

Stator Dimensions
Interior diameter : 38 mm
Exterior diameter : 104 mm
Thickness : 13 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 670 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Between each Grey = 0.4 ohms +-20%

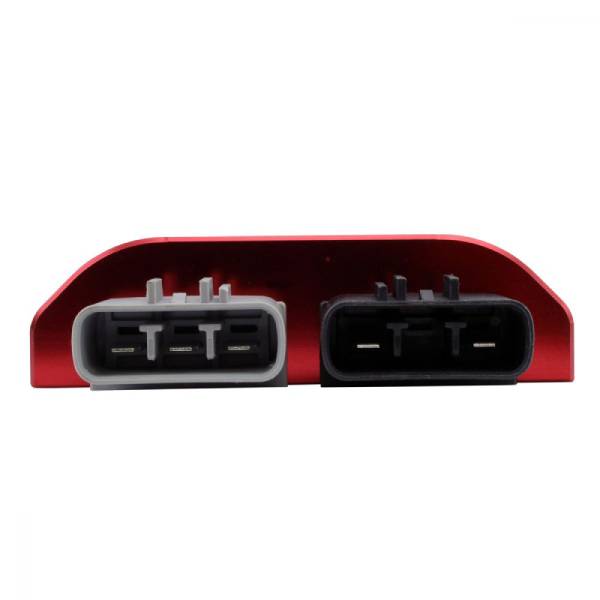

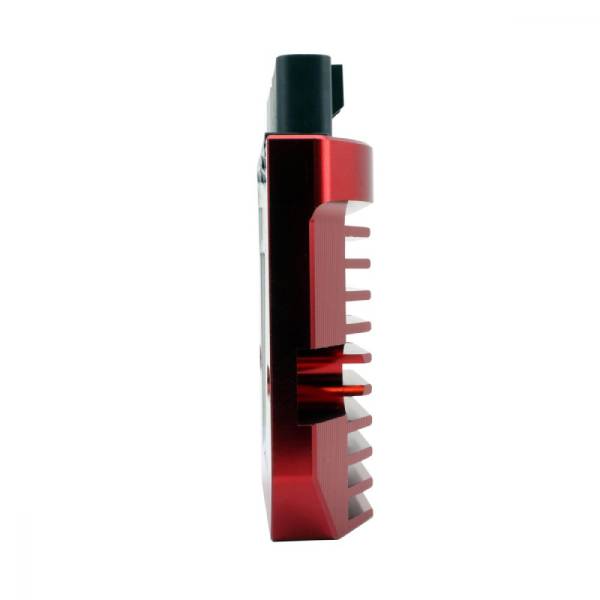

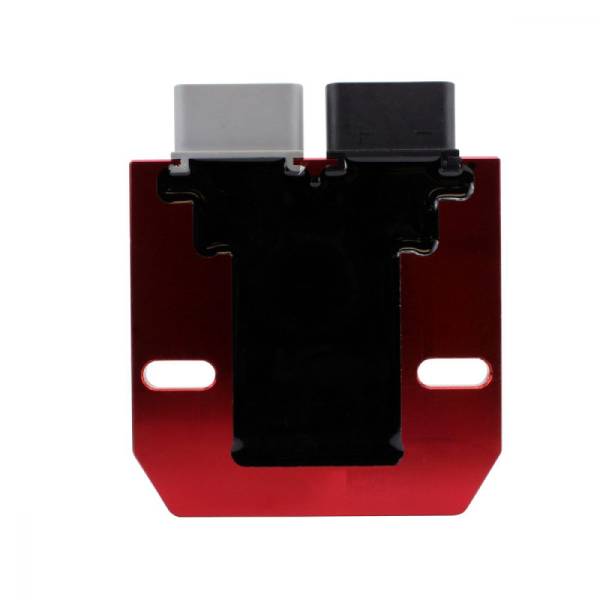

Regulator Dimensions
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰
Brand New aftermarket Stator + Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
- All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

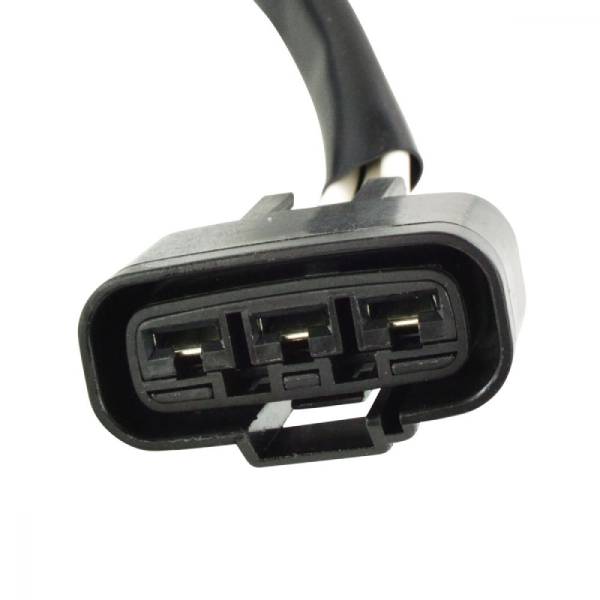

- Connector included
- Rubber grommet included

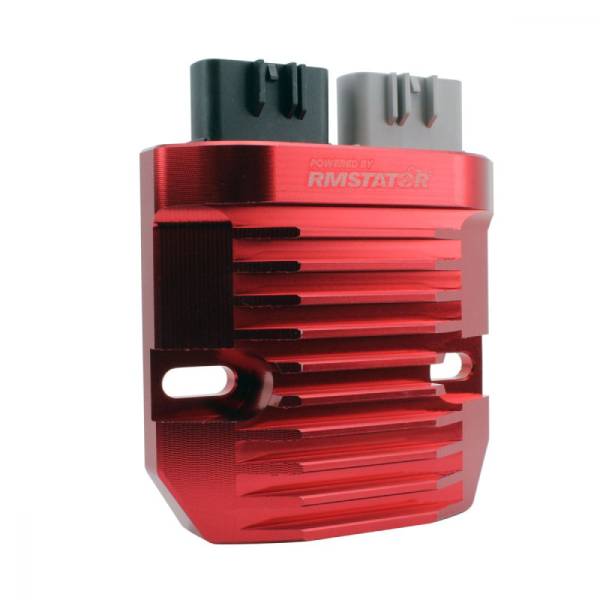

Brand New aftermarket Regulator Rectifier
Our new RMSTATOR machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
| Weight | 1.22 kg |
|---|---|
| Dimensions | 33.02 × 5.08 × 22.86 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 106637-R00, 106637.R00, 106637 R00, 106637R00
OTHER PART NUMBER
- RMS900-106637
DO NOT MANUFACTURE PARTS, DESIGN PERMANENT SOLUTIONS
We cultivate our actions towards finding permanent solutions. There is no way, us, as customers, would like to replace a part again and again. This mindset forces our team to design to fix, to conquer these pesky electrical failures in powersport.
GOOD DESIGN PRODUCE GOOD PRODUCTS. EFFICIENT DESIGN CREATES STELLAR PRODUCTS.
We are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
WE ALL ARE CUSTOMERS ELSEWHERE.
In our shopping journey for buying our daily goods, we all expect to be treated with respect in a relation that makes us feel welcomed. Our team is encouraged to elevate that standard even higher and to provide all the information necessary for an easy and reliable installation.
OWN YOUR CUSTOMER PAIN LIKE IT IS YOURS
We own powersport rides ourselves. We feel the pain of dealing with unsolvable troubleshooting on our rides. We are committed in manufacturing complete solutions to known or I-would-never-have-suspected issues that are plaguing your rides... and ours.
