RMS900-106902 | Solution Kit Generator Stator + Aluminum Series Regulator for Aprilia RSV / Tuono 1000 R 2004-2009 |
C$441.89
Stator Dimensions :
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to gromme: 160 mm
Length of wires grommet to plug: 1180 mm
Other specifications :
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator 3p: Yellow to Yellow = 0.8 ohms +-20%
Pickup: Green to Blue = 500 ohms +-20%
Regulator Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Distance between fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

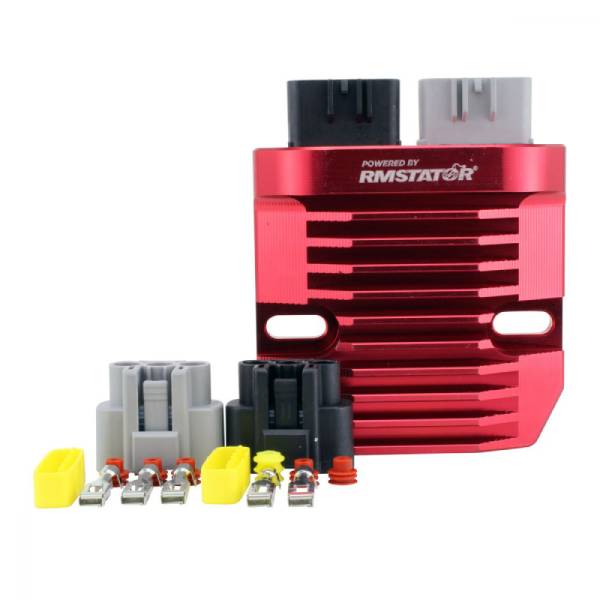

Brand new aftermarket Stator + Red Machined Aluminum Mosfet Regulator Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Harness and Gasket Included
- Include 3X OF M6-1.00 X 30 Allen socket head
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
The 2004-2009 Aprilia RSV and Tuono models are excellent motorcycles, but all suffered from a very unreliable charging system. The issue was an extremely strong magnetic flywheel that caused excess heat in the stator windings and common repeat failures. A replacement stator of the original design was simply not a reliable solution. The high output from the stator also caused regular voltage regulator failures, making for a very poor charging system.

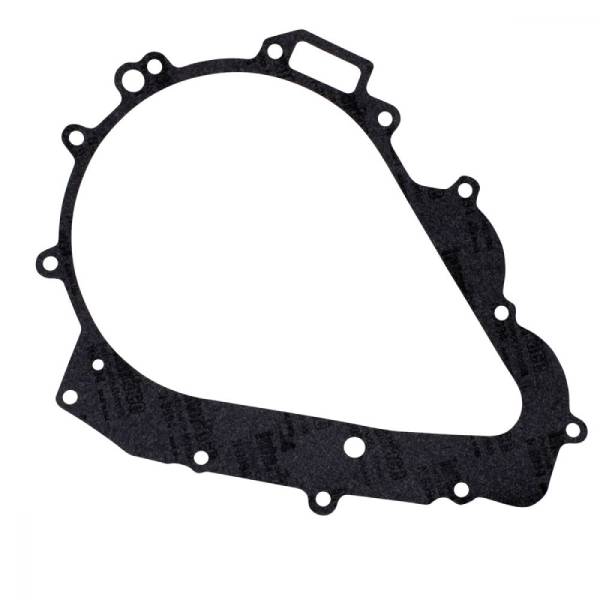

To solve this problem, RMSTATOR has engineered a permanent solution kit to address all parts of the charging system. A thinner stator core is used that generates and retains less heat in use, and promotes cooling due to increased oil coverage from the extra space inside the flywheel. Paired with a CNC billet aluminum machined series type voltage regulator, the charging system is now bulletproof. For a complete and easy installation, we include shorter stator mounting bolts, a plug & play adapter harness for the new voltage regulator, and a stator cover gasket.

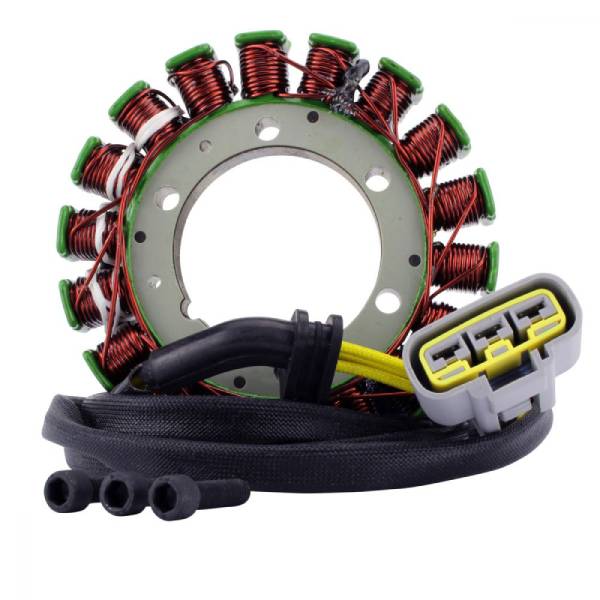

Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Tow pick up pulsar coil included

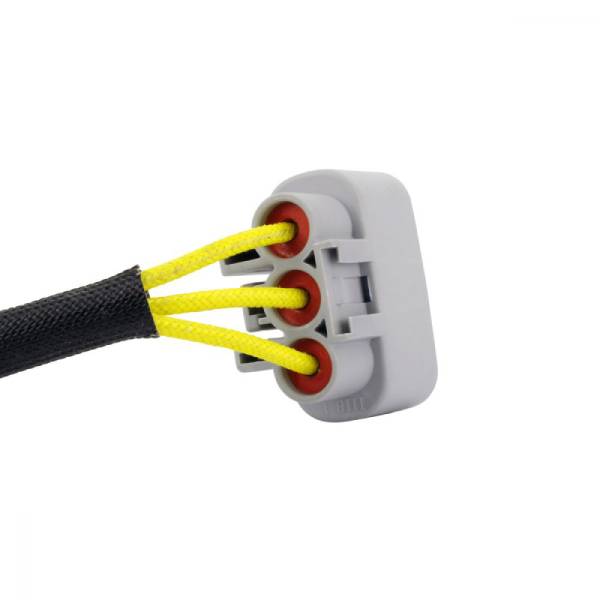

- Connectors included
- Rubber grommet included
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.

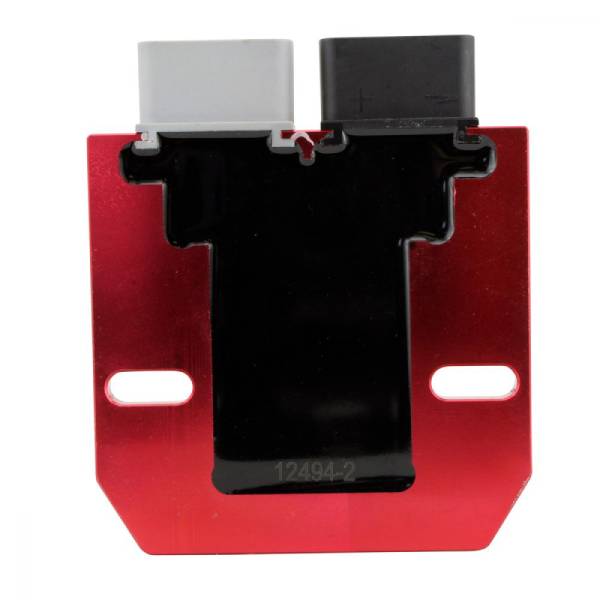

Moreover, the regulator has our new machined billet aluminum casing which dissipate heat 33% better than standard molded casing.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.
INSTALL LIKE A PRO

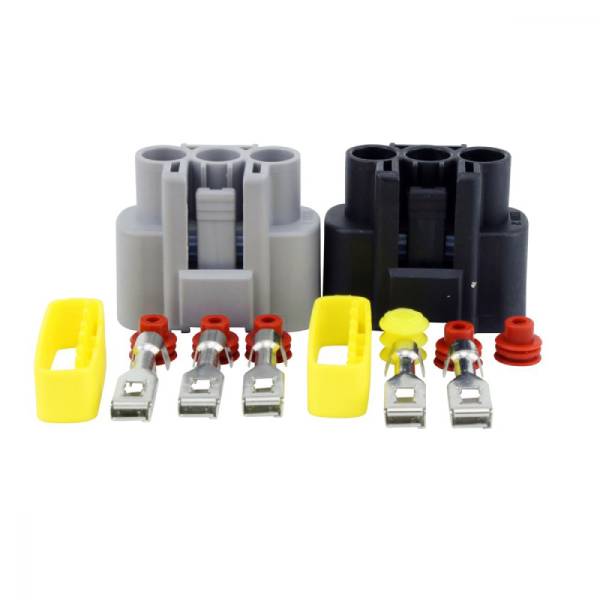

We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
| Weight | 2.04 kg |
|---|---|
| Dimensions | 33.02 × 5.08 × 22.86 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- AP068-5330, AP068.5330, AP068 5330, AP0685330
OTHER PART NUMBER
- RMS900-106902
