Name: RMS900-107275 | Stator + Regulator Mosfet for Triumph America 800 900 | Bonneville T100 / Scrambler / Speedmaster / Thruxton 900 2002-08 |
SKU: RMS900-107275
Availability: BackOrder

RMS900-107275 | Stator + Regulator Mosfet for Triumph America 800 900 | Bonneville T100 / Scrambler / Speedmaster / Thruxton 900 2002-08 |

C$354.78

Dimensions Stator :

Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet : 195 mm
Length of wires grommet to plug : 660 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow Between Yellow = 0.4 ohms +-20%

Dimensions Mosfet Regulator :

Width : 90 mm
Length : 90 mm
Height : 30 mm
Wires length : 240 mm
Fixation holes center to center : 80 mm

Other specifications :
Number of plugs : 1
Number of pins : 5
Number of wires : 5
Minimum Charging Voltage : 14.5V +- 0.5V
Maximum Charging Current : 50A/500W
Open Circuit Voltage : 15V
Operation Temperature : -20⁰ C to 85⁰ C

This item may take 1-2 days to deliver

Description
Additional information
OEM AND OTHER PART NUMBERS
About brand

Description

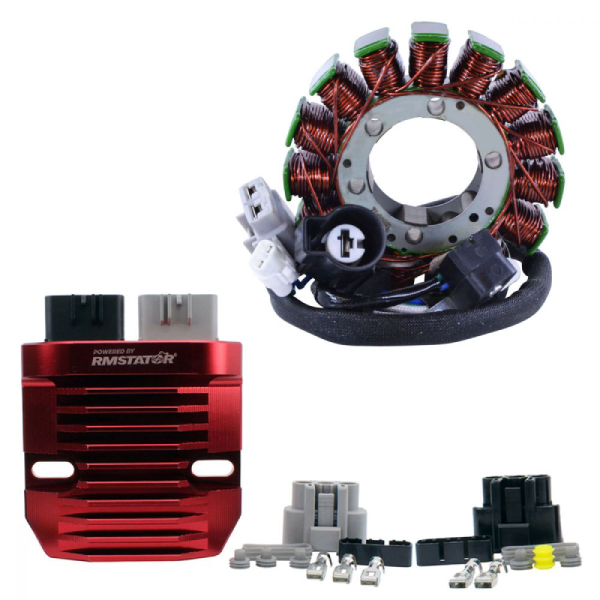

Brand new aftermarket stator + Mosfet voltage regulator rectifier

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Stator

Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included
Rubber grommet included

Before installing your Stator

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulatorrectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.

Additional information

Weight	1.59 kg
Dimensions	33.02 × 5.08 × 22.86 cm
Brand	RMSTATOR
Fitment Type	Guaranteed Fit

OEM AND OTHER PART NUMBERS

OEM NUMBER

107275-R00, 107275.R00, 107275 R00, 107275R00

ADDITIONAL NUMBER

RMS900-107275
