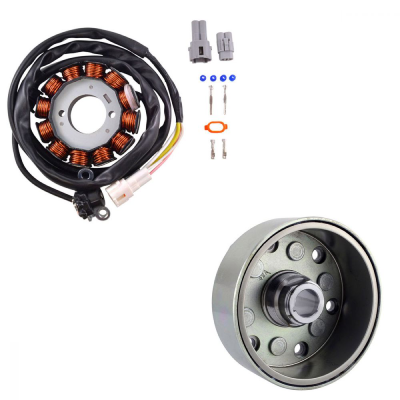

Brand New High Output Stator + Magneto Flywheel Rotor + Regulator + Harness
- Direct replacement to your original unit
- Pick up pulsar coil included
- Connector included
- Opposite connector included
- Rubber grommet included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All products shipped are tested
High output stator generating 140W available for added accessories
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new magneto flywheel rotor:
Before attempting to start your Yamaha adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010″.
Before installing your new high output stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code then youﾒre original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010ﾒﾒ.
