RMS900-108287 | SPLYT Dual Stator + Series Voltage Regulator for Can-Am Outlander Maverick Renegade 650 850 1000 2007-21 |
C$739.00

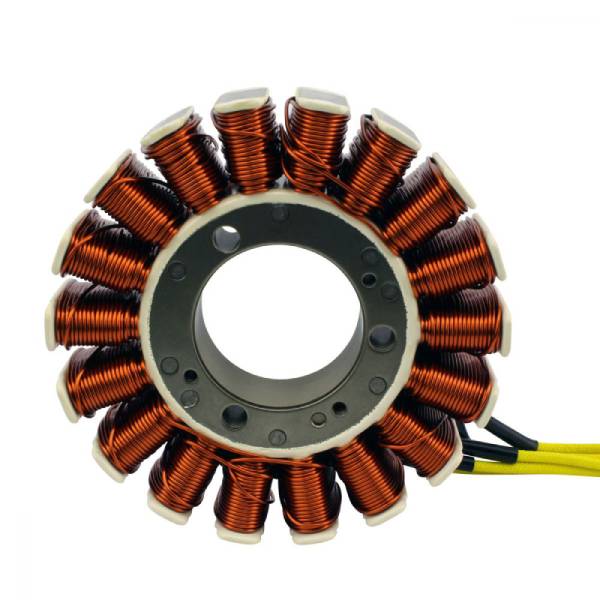

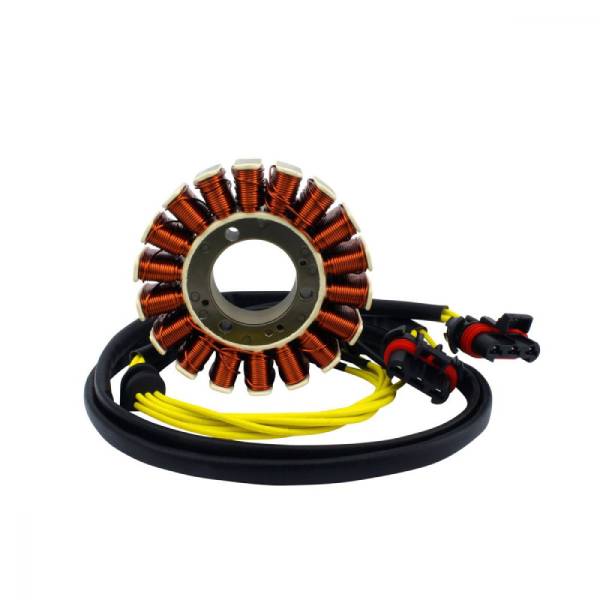

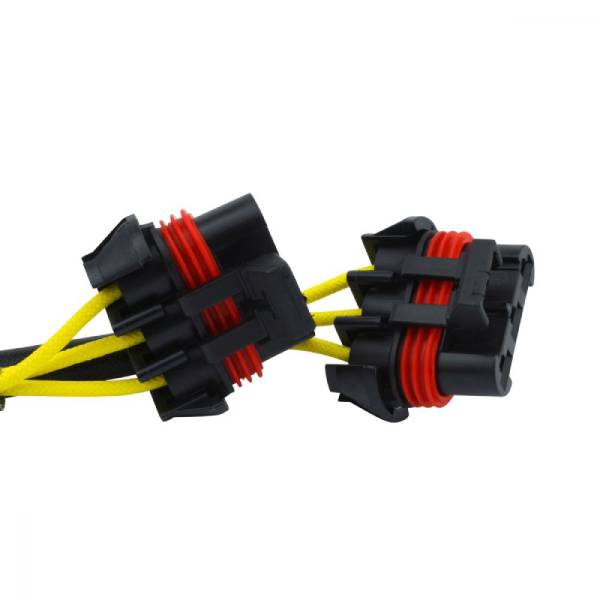

Dual Output Stator:
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 114 mm
Thickness: 25 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 820 mm
Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.1 ohms +-20%
Alternator: Yellow to ground = O.L.

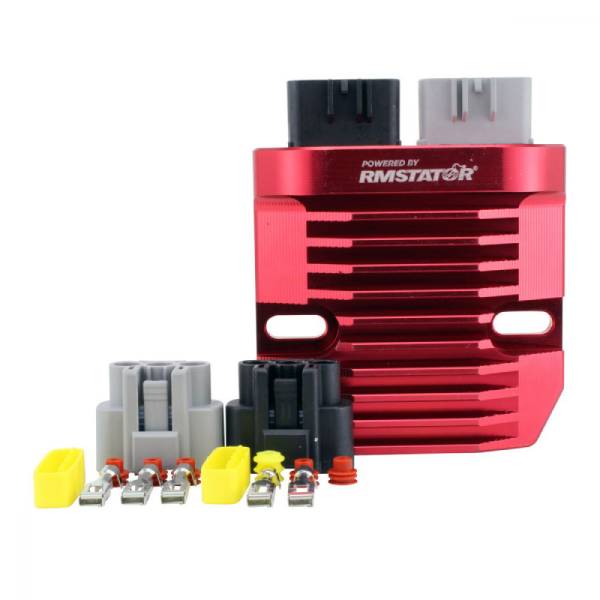

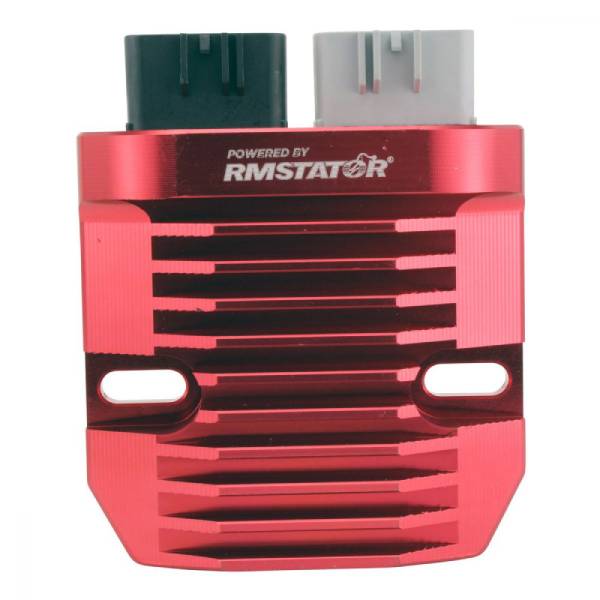

Machined Aluminum SERIES Regulator:
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

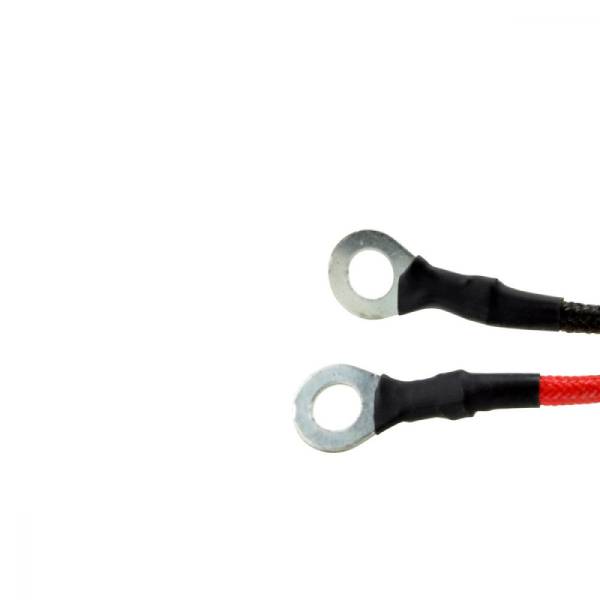

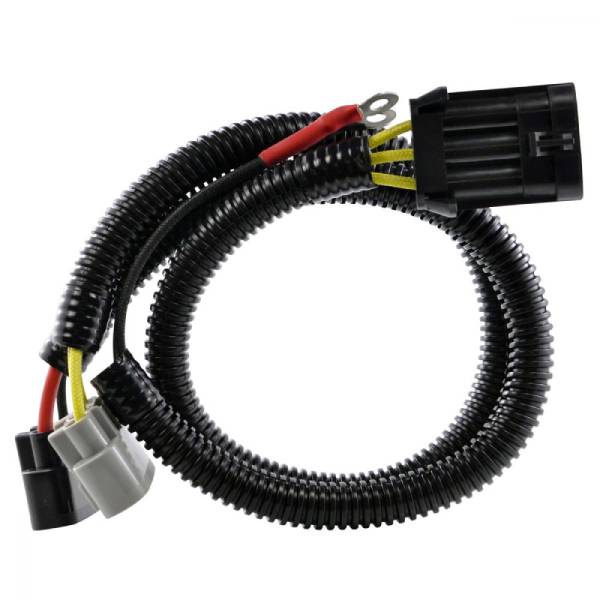

Conversion Harness:
Dimensions:
Wires length: 600 mm
Number of Yellow wires: 3
Number of Red wires: 1
Number of Black wires: 1
Number of plugs: 3
Available on backorder
RMSTATOR SPLYT for Can-Am!
Can-Am models have long needed more power and more reliability from their charging system. RMSTATOR provides this with revolutionary SPLYT technology. This system provides over 150 Watts of increased output with peace of mind from dual voltage regulators. Make the upgrade today!
Before installing your new SPLYT stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
Before installing your new SERIES Machined Aluminum Voltage Regulator Rectifier
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors

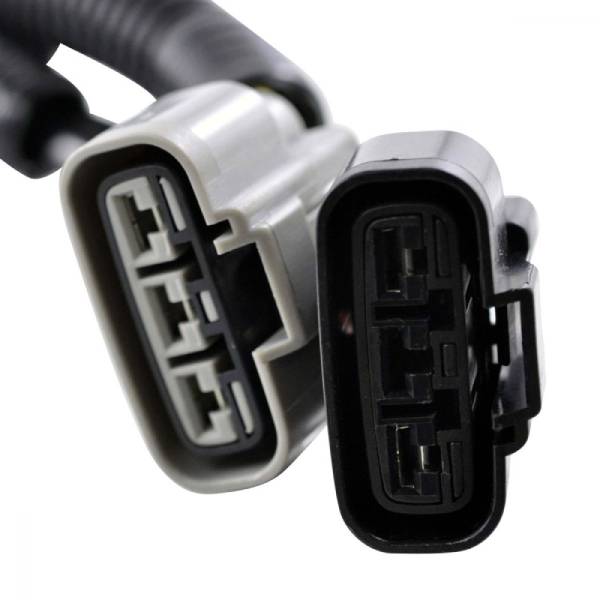

Conversion Harness
- Plug-and-Play, direct fit
- Use hi-temp dielectric grease on all connectors.
| Weight | 2.49 kg |
|---|---|
| Dimensions | 33.02 × 25.4 × 22.86 cm |
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBER
OEM PART NUMBER
- 108287-R00, 108287.R00, 108287 R00, 108287R00
OTHER PART NUMBER
- RMS900-108287
