RMS900-108555 | Kit Stator + Flywheel + Gasket for Suzuki GSXR 600 / 750 2006-2024 | # 31401-01H00 31402-01H20 11483-01H00 |
C$608.37
Stator Dimensions:
Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 330 mm
Other specifications:
Number of wires:3
Number of plugs: 1
Number of pins: 3
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

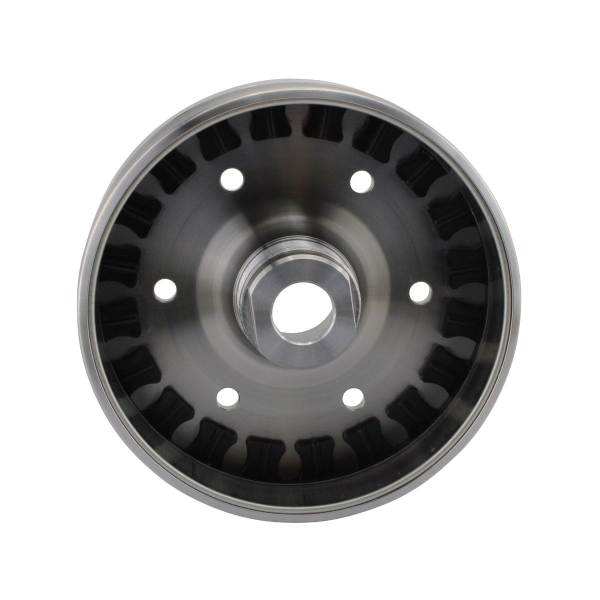

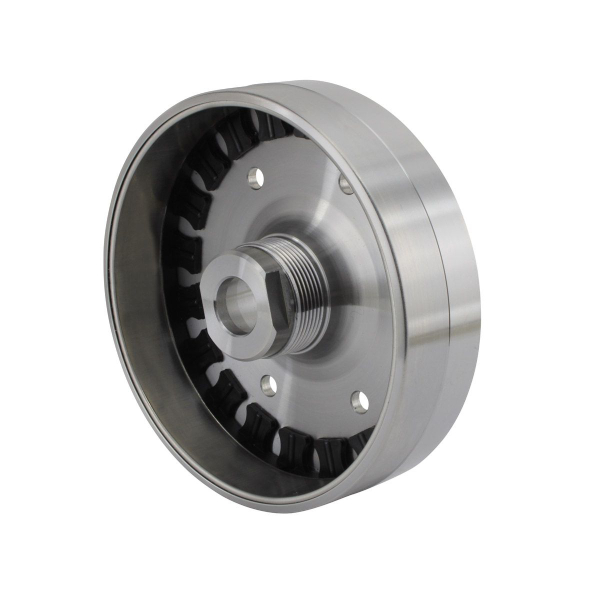

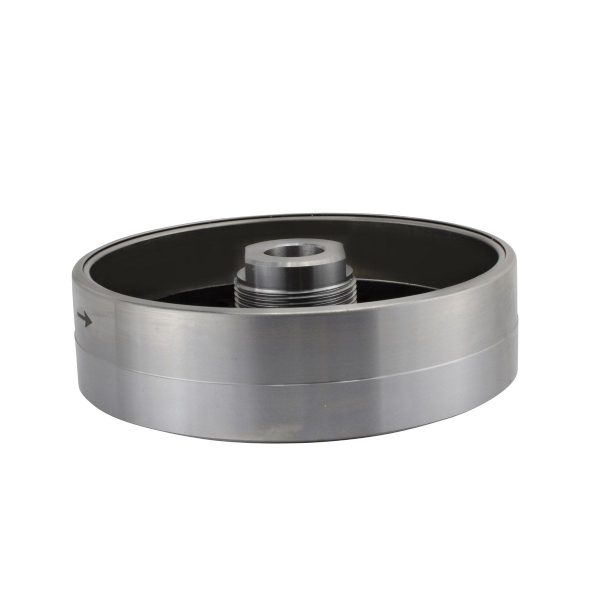

Flywheel Dimensions:
Exterior Diameter: 118 mm
Interior Diameter: 108 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 33 mm
Thickness (exterior): 34 mm
Thickness (interior): 27 mm
Brand new aftermarket Stator + Flywheel + Gasket Kit

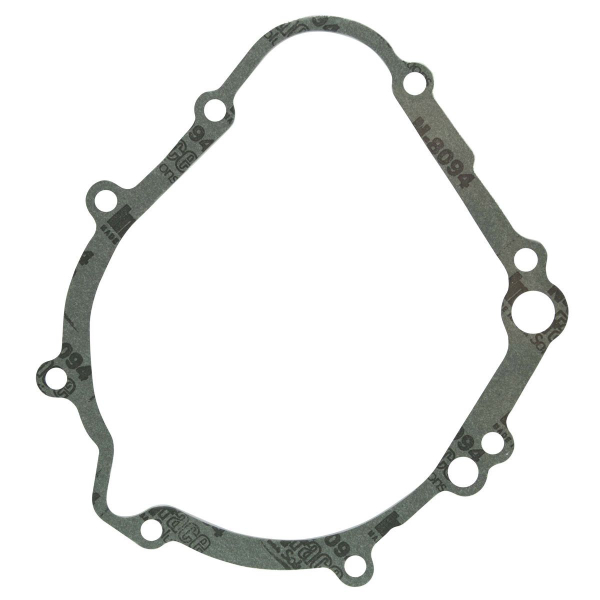

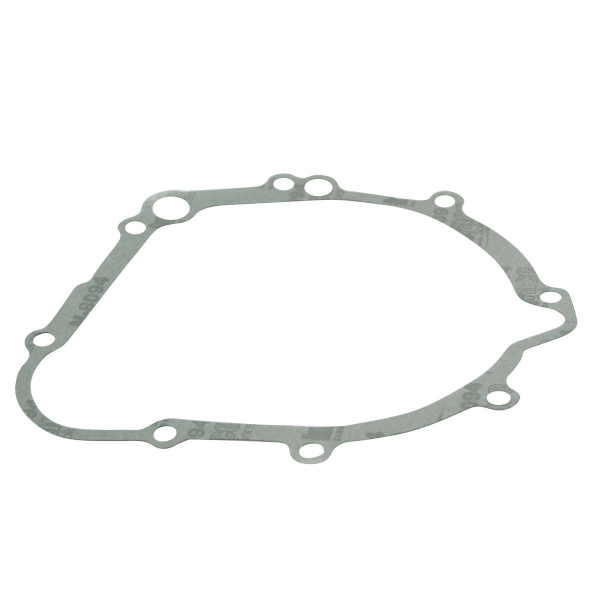

- Crankcase cover gasket included
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

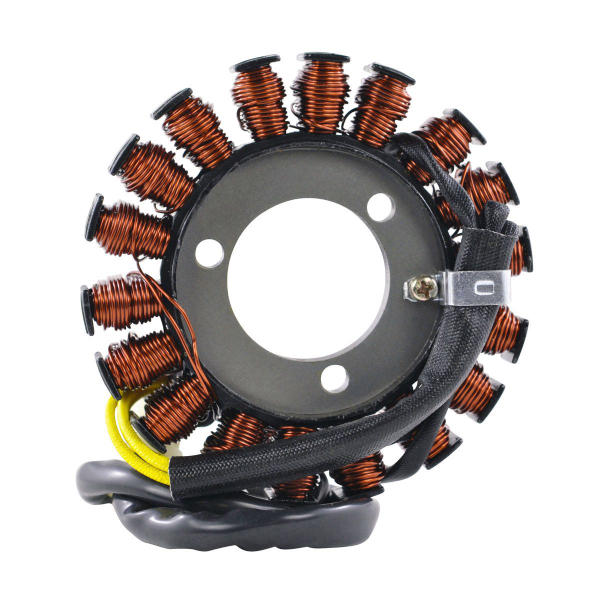

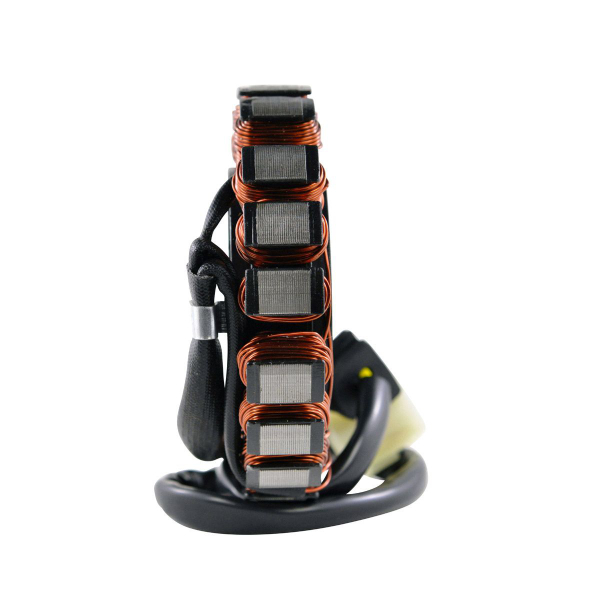

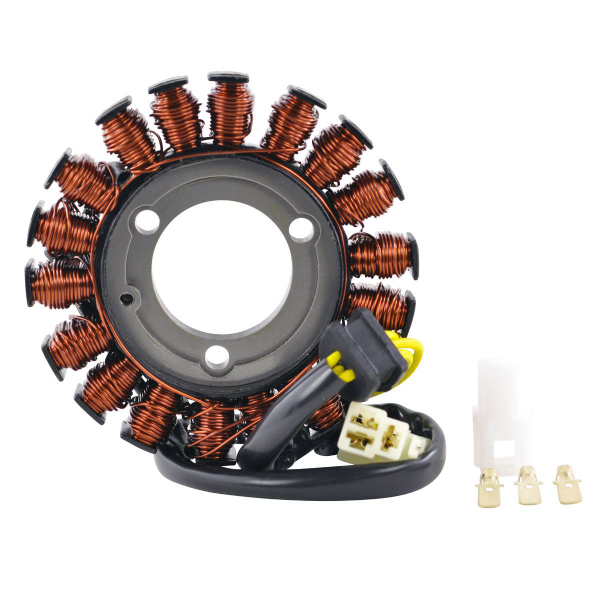

Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

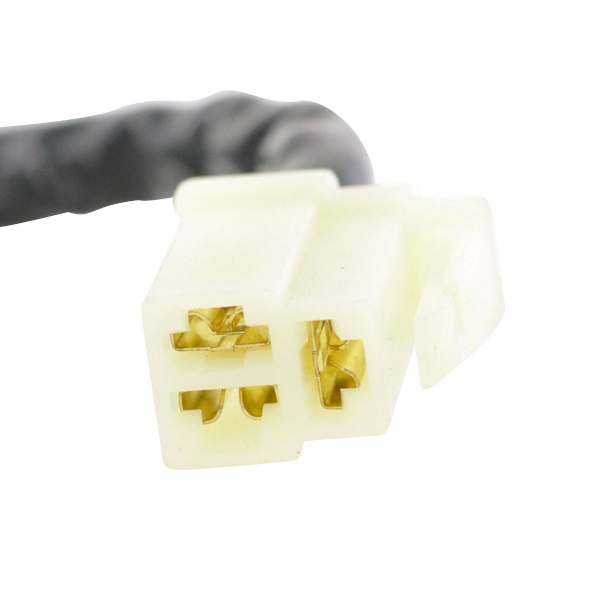

- Connector included
- Rubber grommet included.
Introducing our newest Heavy Duty Flywheel Rotor For Suzuki Motorcycles.
Anyone who rides or repairs Suzuki Motorcycles is probably familiar with the flywheel problems common to these models. Most of these machines will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.
For years, service shops & dealerships have offered low cost repairs for Suzuki flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues!
The common repair is using JB Weld© Marine Blue Epoxy to reattach the loose original magnets, or to install new ones. Epoxy fixes do repair flywheels in short term, if they are done correctly. However, this kind of repair can easily cause immediate problems, and impact long term reliability of your Motorcycle.
INSTALLATION
Before installing your new Stator and Flywheel
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010″.

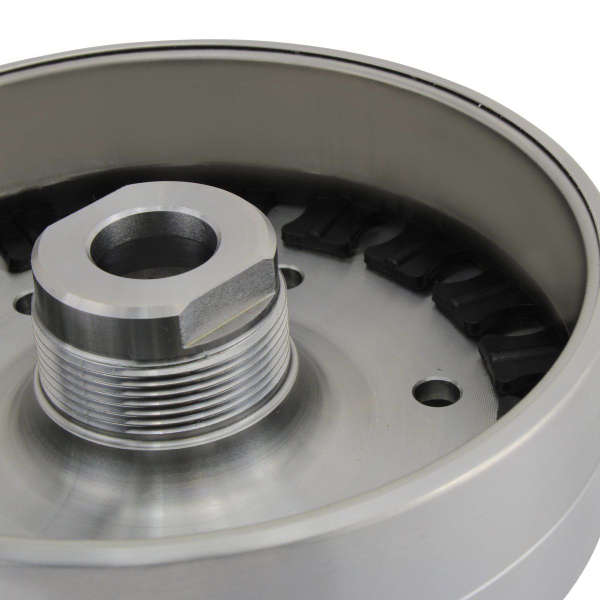

Flywheel
Before attempting to start your Suzuki adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010″.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
| Weight | 2.49 kg |
|---|---|
| Brand |
RMSTATOR |
| Fitment Type |
Guaranteed Fit |
OEM AND OTHER PART NUMBERS
OEM PART NUMBER
- 108555-R00
OTHER PART NUMBER
- RMS900-108555
DO NOT MANUFACTURE PARTS, DESIGN PERMANENT SOLUTIONS
We cultivate our actions towards finding permanent solutions. There is no way, us, as customers, would like to replace a part again and again. This mindset forces our team to design to fix, to conquer these pesky electrical failures in powersport.
GOOD DESIGN PRODUCE GOOD PRODUCTS. EFFICIENT DESIGN CREATES STELLAR PRODUCTS.
We are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
WE ALL ARE CUSTOMERS ELSEWHERE.
In our shopping journey for buying our daily goods, we all expect to be treated with respect in a relation that makes us feel welcomed. Our team is encouraged to elevate that standard even higher and to provide all the information necessary for an easy and reliable installation.
OWN YOUR CUSTOMER PAIN LIKE IT IS YOURS
We own powersport rides ourselves. We feel the pain of dealing with unsolvable troubleshooting on our rides. We are committed in manufacturing complete solutions to known or I-would-never-have-suspected issues that are plaguing your rides... and ours.
